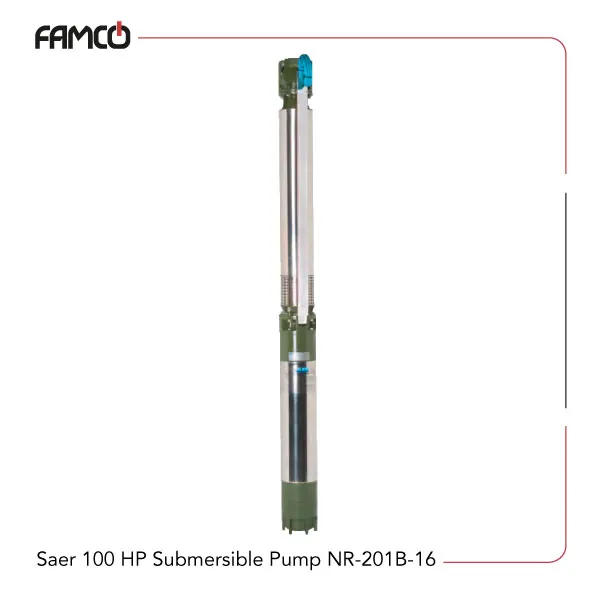

Saer 100 HP Submersible Pump NR-201B/16 Specifications
This pump has a 75 kW (100 HP) motor operating on a 400V supply and draws 157A. It pumps up to 1,500 liters per minute, suitable for high-volume applications. The maximum head reaches 436 meters, ideal for deep-well or high-rise building projects. This Saer submersible pump handles liquids at temperatures up to 30°C and operates under a maximum pressure of 85 bar. It can be immersed to a depth of 300 meters below the liquid surface, suitable for deep underwater or borehole applications. Solid particles up to 5 mm can pass through the pump, allowing it to move slightly contaminated liquids or light slurry. Its strong construction and high performance make this pump appropriate for industrial, municipal, and large-scale water management systems.
| Specification | Value |
| Power (kW) | 75 |
| Power (HP) | 100 |
| Voltage (V) | 400 |
| Current (A) | 157 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 436 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

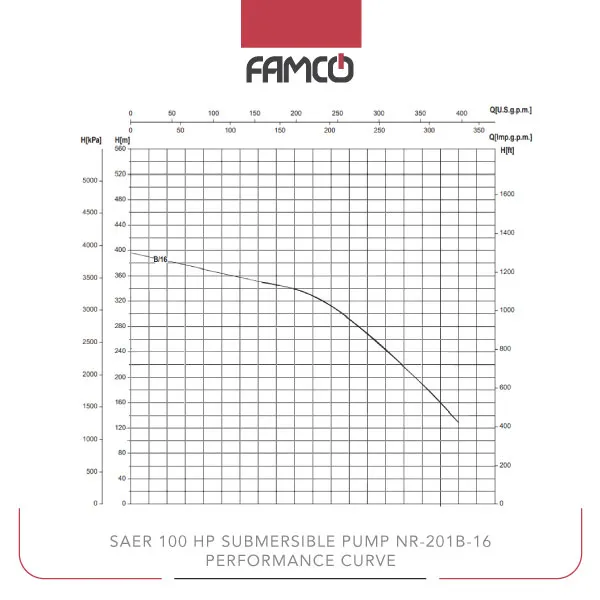

Saer 100 HP Submersible Pump NR-201B/16 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 436 | 390 | 386 | 380 | 369 | 350 | 319 | 282 | 232 | 169 |
Saer 100 HP Submersible Pump NR-201B/16 Applications
- Deep well water extraction
- Industrial water transfer
- Municipal water supply systems
- High-pressure irrigation systems
Saer 100 HP Submersible Pump NR-201B/16 Benefits
- High power output for demanding tasks
- Deep immersion capability up to 300 meters
- Supports solids up to 5 mm for versatile use
- Operates efficiently at high pressure up to 85 bar
Saer 100 HP Submersible Pump NR-201B/16 Price List
| No. | Name | Price |
| 1 | Saer 100 HP Submersible Pump NR-201B/16 Price | Contact us |
