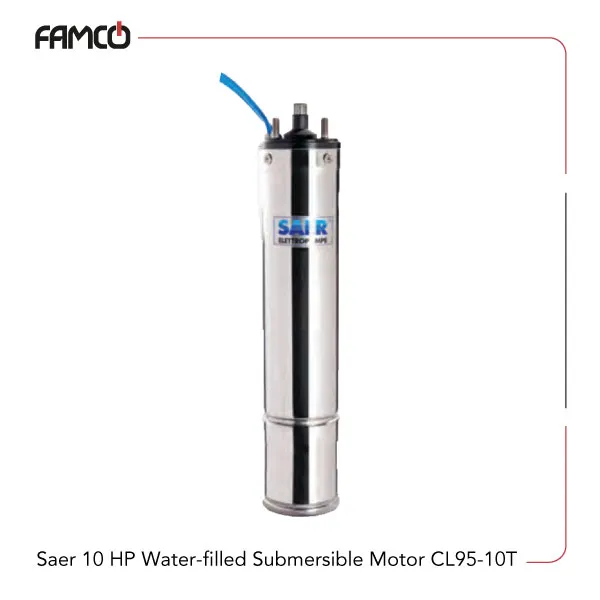

Saer 10 HP Water-filled Submersible Motor CL95-10T Specifications
This product features a power output of 7.5 kW (10 HP), operating at a voltage of 400V with a current of 19.3A. It runs at a speed of 3000 RPM and boasts an efficiency of 79%. The power factor is 0.7, ensuring good energy utilization. It is designed to work with liquids at a maximum temperature of 35°C and can be immersed up to 200 meters deep. The device has an IP68 protection rating, making it highly resistant to dust and water ingress. Its insulation class is F, indicating good thermal endurance and safety during operation.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Voltage (V) | 400 |
| Current (A) | 19.3 |
| Speed (RPM) | 3000 |
| Efficiency (η) | 79 |
| Power factor (Cosφ) | 0.7 |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 10 HP Water-filled Submersible Motor CL95-10T Applications
- Deep water pumping systems
- Industrial fluid transfer
- Water treatment plants
- Marine and offshore equipment
Saer 10 HP Water-filled Submersible Motor CL95-10T Benefits
- High efficiency reduces energy costs
- Robust IP68 protection for harsh environments
- Deep immersion capability up to 200 meters
- Reliable performance with thermal insulation class F
Saer 10 HP Water-filled Submersible Motor CL95-10T Price List
| No. | Name | Price |
| 1 | Saer 10 HP Water-filled Submersible Motor CL95-10T Price | Contact us |
