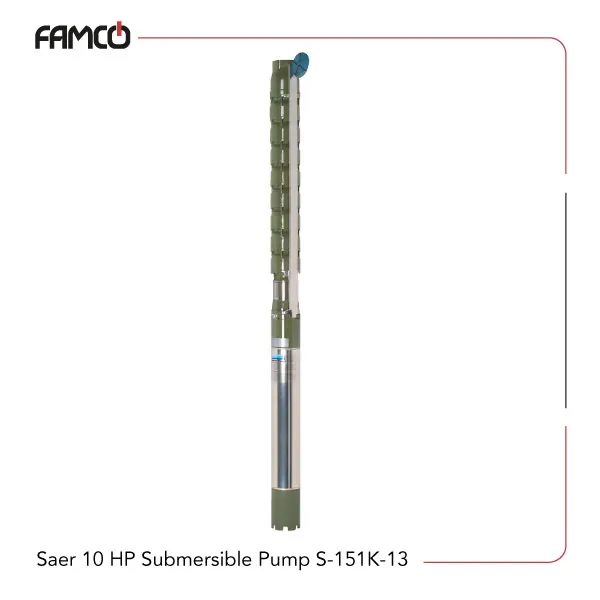

Saer 10 HP Submersible Pump S-151K/13 Specifications
This high-performance pump operates at 7.5 kW (10 HP) and requires a voltage of 400V with a current of 16.3A. It can handle a flow rate of 300 liters per minute, which equals 18 cubic meters per hour, making it suitable for large-scale applications. This Saer submersible pump can achieve a maximum head of 185 meters, allowing it to lift liquids over significant heights. It is designed to work with liquids up to 30°C, ensuring safe operation within this temperature range. The maximum working pressure is 85 bar. It can be immersed up to 300 meters under the liquid level, providing flexibility for deep submersion tasks. Additionally, it can pass solids up to 5 mm in size, making it suitable for pumping liquids with small particulates. Overall, this pump is built for durability and efficiency in demanding industrial or commercial settings, offering robust performance across various parameters.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Voltage (V) | 400 |
| Current (A) | 16.3 |
| Flow rate (l/min) | 300 |
| Flow rate (m3/h) | 18 |
| Maximum head (m) | 185 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |
Saer 10 HP Submersible Pump S-151K/13 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 185 | 164 | 160 | 154 | 147 | 141 | 134 | 128 | 111 | 78,5 | 37 |
Saer 10 HP Submersible Pump S-151K/13 Applications
- Industrial fluid transfer
- Deep well water pumping
- High-pressure liquid transfer
- Handling liquids with small solids
Saer 10 HP Submersible Pump S-151K/13 Benefits
- High efficiency with 10 HP power
- Capable of lifting liquids over 185 meters
- Suitable for deep immersion up to 300 meters
- Passes solids up to 5 mm for versatile use
Saer 10 HP Submersible Pump S-151K/13 Price List
| No. | Name | Price |
| 1 | Saer 10 HP Submersible Pump S-151K/13 Price | Contact us |
