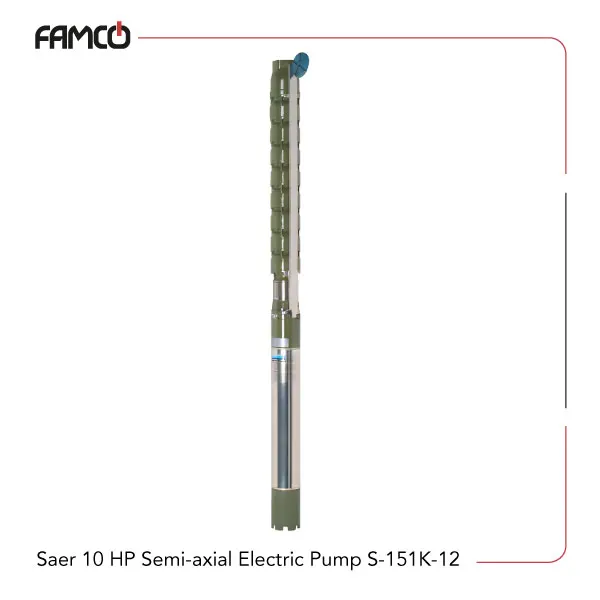

Saer 10 HP Submersible Pump S-151K/12 Specifications
Saer submersible pump S-151K/12 delivers 7.5 kW (10 HP) of power and runs on 400 volts with a current of 16.3 amperes. It can move liquids at a rate of 300 liters per minute, which equals 18 cubic meters per hour. The pump can reach a maximum head of 156 meters, making it suitable for applications that require higher pressure. This Saer submersible pump is built to handle liquids with temperatures up to 30°C and can operate under a maximum pressure of 85 bar. Designed for deep use, it can function at immersion depths of up to 300 meters below the liquid surface. The pump can also pass solids up to 5 mm in size, allowing it to manage liquids containing small particles or semi-solid materials without trouble.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Voltage (V) | 400 |
| Current (A) | 16.3 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 156 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

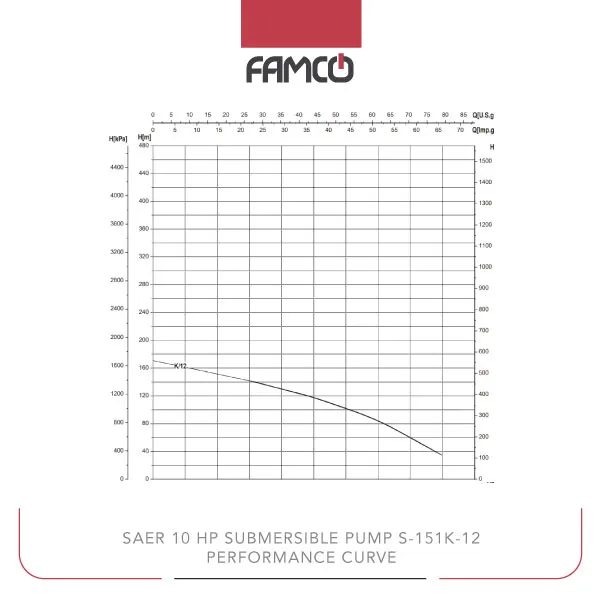

Saer 10 HP Submersible Pump S-151K/12 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 171 | 151 | 147 | 142 | 136 | 130 | 124 | 118 | 102 | 72 | 34 |
Saer 10 HP Submersible Pump S-151K/12 Applications
- Deep well water extraction
- Industrial fluid transfer
- Agricultural irrigation systems
- Water treatment plants
Saer 10 HP Submersible Pump S-151K/12 Benefits
- High efficiency with 10 HP power output
- Capable of deep immersion up to 300 meters
- Handles solids up to 5 mm for versatile use
- Operates under high pressure up to 85 bar
Saer 10 HP Submersible Pump S-151K/12 Price List
| No. | Name | Price |
| 1 | Saer 10 HP Submersible Pump S-151K/12 Price | Contact us |
