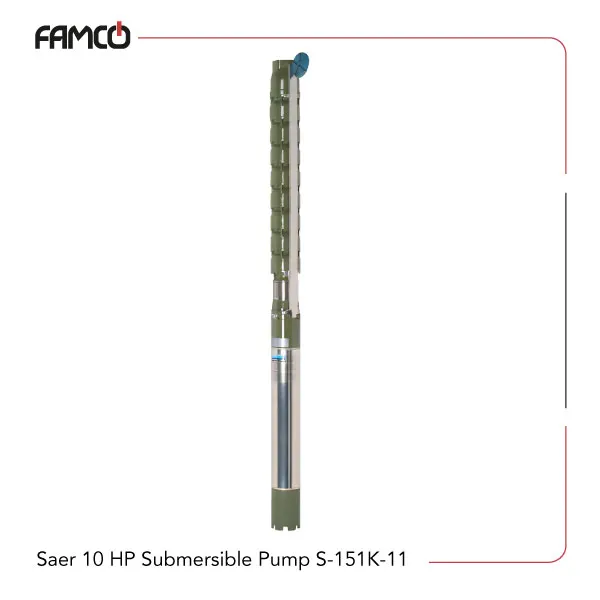

Saer 10 HP Submersible Pump S-151K/11 Specifications
Saer submersible pump S-151K/11 runs on 7.5 kW of power (10 HP) and operates at 400V, drawing 16.3A while in use. It can move up to 300 liters per minute, which is equivalent to 18 cubic meters per hour, and can achieve a maximum head of 156 meters, making it suitable for high-pressure tasks. This Saer submersile pump handles liquids with temperatures up to 30°C and can operate under pressures as high as 85 bar. It can be submerged up to 300 meters below the surface, making it well-suited for deep wells or boreholes. In addition, it can pass solids up to 5 mm in size, giving it flexibility for liquids that contain suspended particles.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Voltage (V) | 400 |
| Current (A) | 16.3 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 156 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

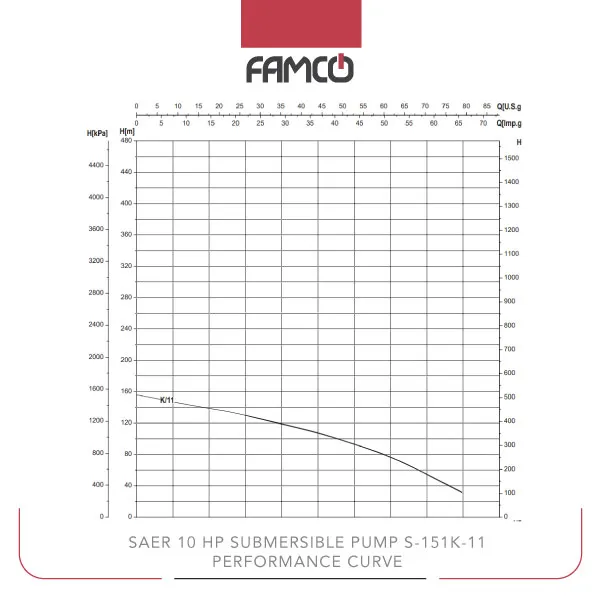

Saer 10 HP Submersible Pump S-151K/11 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 156 | 139 | 136 | 130 | 125 | 119 | 114 | 108 | 94 | 65,5 | 31 |
Saer 10 HP Submersible Pump S-151K/11 Applications
- Deep well water extraction
- Industrial fluid transfer
- Municipal water supply systems
- Agricultural irrigation
Saer 10 HP Submersible Pump S-151K/11 Benefits
- High efficiency with 7.5 kW power
- Suitable for deep immersion up to 300 meters
- Handles solids up to 5 mm for versatile use
- Operates under high pressure up to 85 bar
Saer 10 HP Submersible Pump S-151K/11 Price List
| No. | Name | Price |
| 1 | Saer 10 HP Submersible Pump S-151K/11 Price | Contact us |
