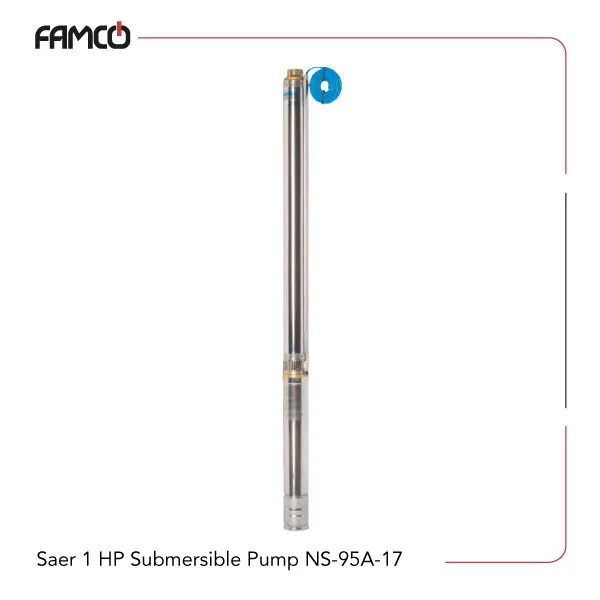

Saer 1 HP Submersible Pump NS-95A/17

0.75 kW (1 HP)

Single- and three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Saer Pumps, Saer Submersible Pump

Overview of Saer 1 HP Submersible Pump NS-95A/17

This submersible pump is intended for light-duty applications where compact power and flexibility are important. It operates at 0.75 kW, equal to 1 HP, providing sufficient drive for everyday pumping needs. The pump is compatible with a voltage range of 230–400 V, allowing it to be used in different electrical setups. Depending on the configuration, it draws 2.1 A in three-phase operation or 7 A in single-phase mode. These electrical characteristics make the pump adaptable to various installations while maintaining steady output in submerged conditions.

Saer 1 HP Submersible Pump NS-95A/17 Specifications

Saer submersible pump NS-95A/17 has a power rating of 0.75 kW (1 HP) and suits both industrial and residential applications. It operates within a voltage range of 230 to 400 volts and supports single-phase and three-phase power supplies, with current ratings of 7 A and 2.1 A respectively. The pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, suitable for efficient liquid transfer. The maximum head reaches 86 meters, which supports liquid movement across substantial vertical distances. The pump works with liquids at temperatures from 0°C to 35°C and supports a maximum working pressure of 34 bar. This Saer submersible pump can operate at immersion depths of up to 300 meters below the liquid level, suitable for deep submersion installations across a variety of operating environments.

Specification	Value
Power (kW)	0.75
Power (HP)	1
Voltage (V)	230-400
Current (A)	2.1 (three-phase), 7 (single-phase)
Maximum Flow rate (m3/h)	3.2
Maximum Flow rate (l/min)	53.3
Maximum head (m)	86
Liquid Temperature	min 0°C, max 35°C
Maximum working pressure	34 bar
Maximum immersion depth	300 m under liquid level

Saer 1 HP Submersible Pump NS-95A/17 Performance Data

Q (m3/h)	0	0.8	1	1.25	1.6	2	2.5	14,1
Q (l/min)	0	20,8	26,7	30	33,3	41,7	41.7	53,3
H (m)	86	84	83	82,5	76,5	69,5	57,5	39

Saer 1 HP Submersible Pump NS-95A/17 Applications

Deep well water extraction
Industrial liquid transfer
High-pressure water systems
Residential water supply systems

Saer 1 HP Submersible Pump NS-95A/17 Benefits

High efficiency with a 0.75 kW power rating
Supports both single-phase and three-phase power supply
Capable of operating at depths up to 300 meters
Robust construction for demanding environments

Saer 1 HP Submersible Pump NS-95A/17 Price List

No.	Name	Price
1	Saer 1 HP Submersible Pump NS-95A/17 Price	Contact us

Brand	Saer
Power (HP)	1
Power (kW)	0.75
Voltage (V)	230-400
Current (A)	2.1, 7
Maximum Flow Rate (L/min)	53.3
Maximum Flow Rate (m3/h)	3.2
Maximum Delivery Head (m)	86
Maximum Liquid Temperature (°C)	35
Maximum Operating Pressure (bar)	34
Maximum immersion depth (m)	300
