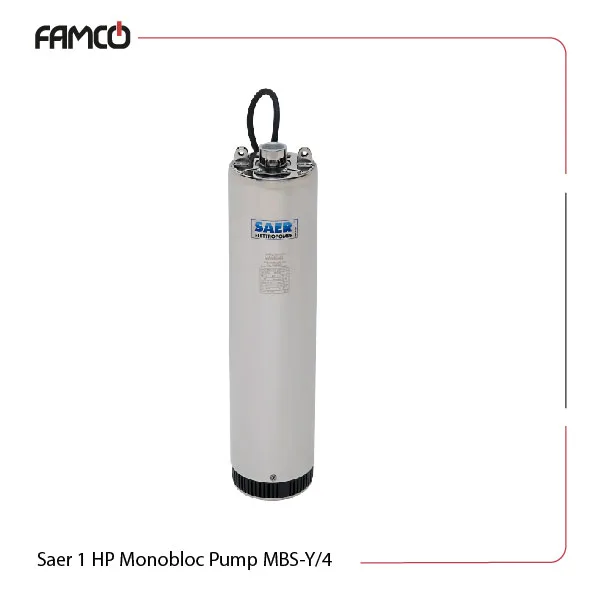

Saer 1 HP Monobloc Pump MBS-Y/4 Specifications
This pump is designed for high performance and durability. These Saer pumps operate by pushing water up within a height range of 12 to 50 meters for various installation setups. The frequency is set at 50 Hz for an efficient operation. It can also handle liquid temperatures from 0 to 40 degrees Celsius and has a maximum solid passage of 2.5 mm. The product’s maximum immersion depth is 70 meters, which has made this pump a versatile device for deep applications. This Saer monobloc pump has an IP68 protection class to keep it dust-tight and withstand submersion in water.
The mechanical seals are made of graphite/alumina oxide on the motor side and alumina oxide/silicon carbide on the pump side to provide exceptional sealing capabilities. The pump body is constructed from AISI 304 steel, while the impellers and diffusers are made from thermoplastic resin for enhanced durability. This submersible pump has its motor shaft made of AISI 431 stainless steel for longevity purposes. It is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions, with a power output of 0.75 kW (1HP) and a total input power of 1.3 kW.
| Specification | Value | |
| H (m) | 12-50 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 0.75 | |
| P2 (HP) | 1 | |
| P1 (kW) | 1.3 | |
Saer 1 HP Monobloc Pump MBS-Y/4 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

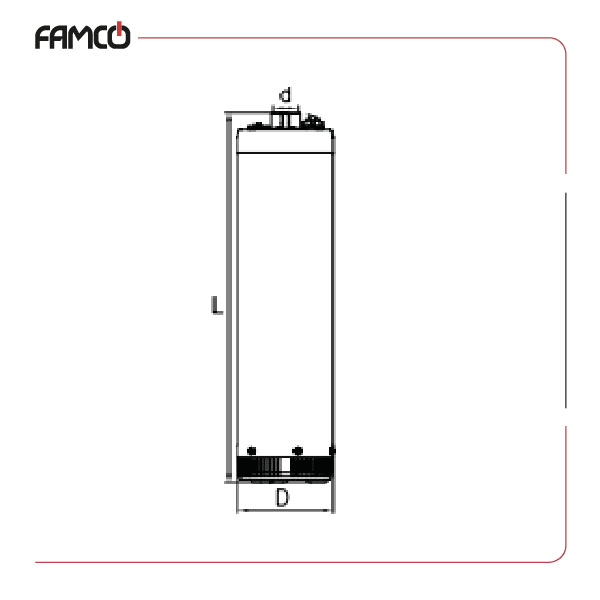

Saer 1 HP Monobloc Pump MBS-Y/4 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 558 | L (mm) | 538 |
| Weight (kg) | 22.5 | Weight (kg) | 21.0 |
Saer 1 HP Monobloc Pump MBS-Y/4 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 6 | 6.3 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 100 | 105 |
| H (m) | 50 | 48 | 45.5 | 43 | 40 | 37.5 | 32.5 | 28 | 14 | 12 |

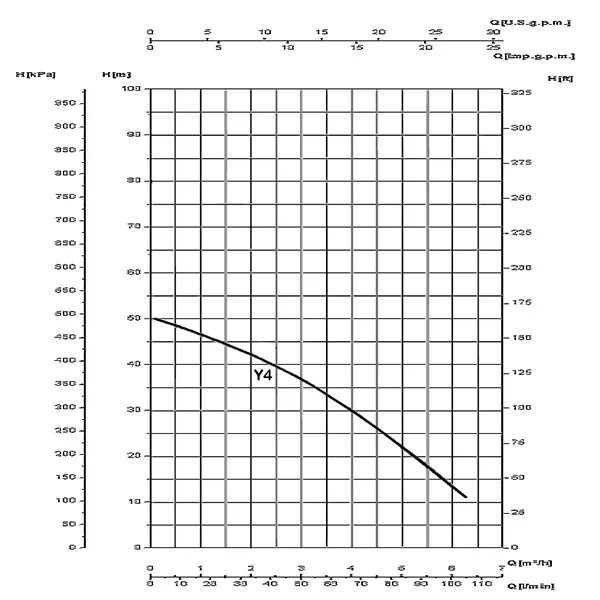

Saer 1 HP Monobloc Pump MBS-Y/4 Performance Curve
Saer 1 HP Monobloc Pump MBS-Y/4 Applications
- Drainage systems in construction sites
- Irrigation for agricultural fields
- Industrial water transfer processes
- Wastewater management in municipal systems
Saer 1 HP Monobloc Pump MBS-Y/4 Benefits
- High durability due to quality materials
- Efficient operation with low energy consumption
- Versatile applications across various industries
- Reliable performance even in submerged conditions
Saer 1 HP Monobloc Pump MBS-Y/4 Price List
| No. | Name | Price |
| 1 | Saer 1 HP Monobloc Pump MBS-Y/4 Price | Contact us |
