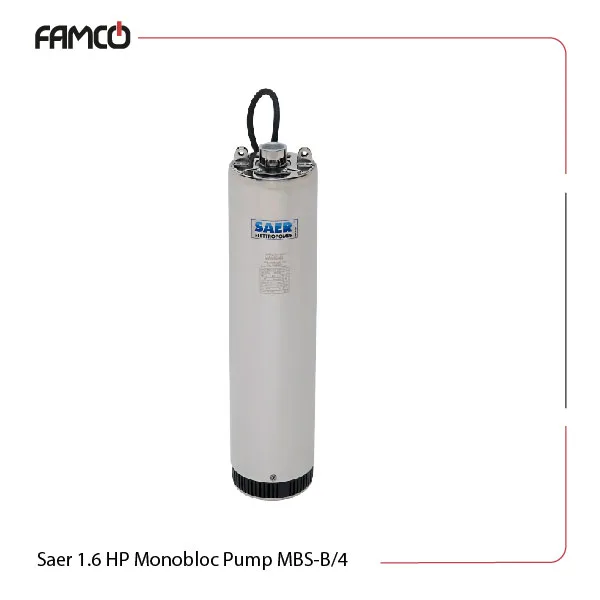

Saer 1.6 HP Monobloc Pump MBS-B/4

1.2 kW (1.6 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: Saer Pumps

Overview of Saer 1.6 HP Monobloc Pump MBS-B/4

Designed for various applications, this 1.6 HP pump delivers top-tier results with a maximum of 150 l/min flow rate. This Saer product covers tasks of all ranges, with a maximum head of 56 meters and immersion depth of 70 meters. Its sturdy construction and advanced sealing technology has made it suitable for both industrial and residential use. The product’s maximum immersion depth is 70 meters, so it excels in deep well applications and can handle a variety of liquids, including those with small solid particles. The pump’s IP68 rating ensures it can operate in wet conditions without compromising performance. This model is provided in both single- or three-phase versions.
Saer 1.6 HP Monobloc Pump MBS-B/4 (single-phase)
Saer 1.6 HP Monobloc Pump MBS-B/4 (three-phase)

Saer 1.6 HP Monobloc Pump MBS-B/4 Specifications

This pump operates efficiently while pumping water up to a height range of 16 to 56 meters with a frequency of 50 Hz. This Saer pump handles liquid temperatures from 0 to 40 °C and solid particles up to 2 mm in size. The product’s maximum immersion depth of 70 meters is accompanied by an IP68 protection class to reach durability in harsh conditions. The mechanical seals in this pump consist of graphite/alumina oxide on the motor side and alumina oxide/silicon carbide on the pump side.

The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel. These submersible pumps come in the three-phase (380-400-415 V) configuration and the single-phase (220-230 V/230-240 V) version is also available. The power output is rated at 1.2 kW (1.6 HP) with a total input power of 1.9 kW.

Specification	Value
H (m)	16-56
Frequency (Hz)	50
Max. Liquid temperature (°C)	0-40
Max. Solid passage (mm)	2.5
Max. Immersion depth (m)	70
Protection class	IP68
Voltage (V)	Three-phase versions	380-400-415 V
	Single-phase versions	220-230 V/230-240 V
P2 (kW)	1.2
P2 (HP)	1.6
P1 (kW)	1.9

Saer 1.6 HP Monobloc Pump MBS-B/4 Materials

Mechanical seals on motor side: Graphite/alumina oxide
Mechanical seals on pump side: alumina oxide/silicon carbide
Pump body: AISI 304 steel
Impellers and diffusers: thermoplastic resin
Motor shaft: AISI 431 stainless steel

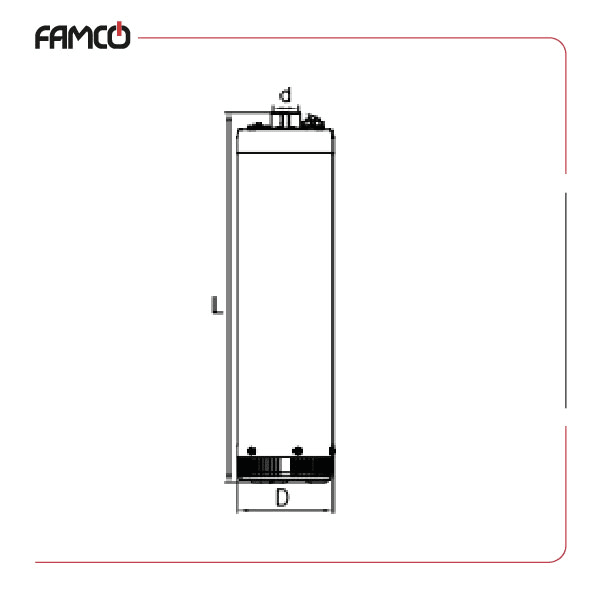

Saer 1.6 HP Monobloc Pump MBS-B/4 Dimensions and Weight

Dimensions (mm) and Weight (kg)
D (mm)		143
d		1”1/4
Single phase (230V)		Three-phase (400V)
L (mm)	654	L (mm)	608
Weight (kg)	24.4	Weight (kg)	24.4

Saer 1.6 HP Monobloc Pump MBS-B/4 Technical Data

Q (m3/h)	0	1.2	2.4	3.6	4.8	7.2	8.4	9
Q (l/min)	0	20	40	60	80	120	140	150
H (m)	56	53	50	47	43.5	32	24	16

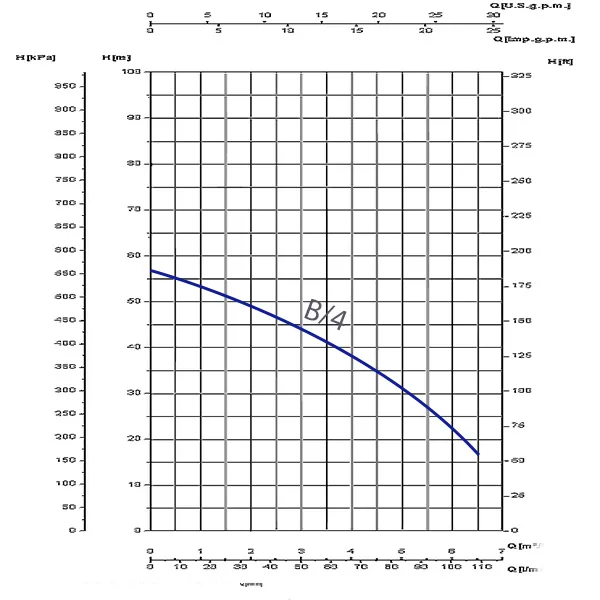

Saer 1.6 HP Monobloc Pump MBS-B/4 Performance Curve

Saer 1.6 HP Monobloc Pump MBS-B/4 Applications

Deep well water extraction
Irrigation systems for agriculture
Industrial liquid transfer
Wastewater management

Saer 1.6 HP Monobloc Pump MBS-B/4 Benefits

Durable construction with AISI 304 steel
Efficient operation in various temperatures
High immersion depth capability
Advanced sealing for long-lasting performance

Saer 1.6 HP Monobloc Pump MBS-B/4 Price List

No.	Name	Price
1	Saer 1.6 HP Monobloc Pump MBS-B/4 Price	Contact us

Brand	Saer
Maximum Delivery Head (m)	56
Frequency (Hz)	50
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	70
Degree of Protection	IP68
Voltage (V)	220-230, 230-240, 380, 400, 415
Power (kW)	1.2
Power (HP)	1.6
Pump Body	AISI 304
