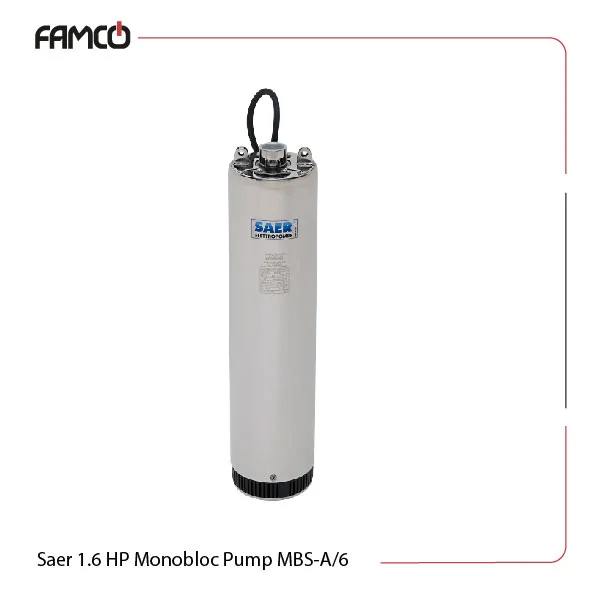

Saer 1.6 HP Monobloc Pump MBS-A/6 Specifications
This product features a height range of 34.5 to 91 meters, making it suitable for various applications. This collection of Saer pumps also operates at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 degrees Celsius. This Saer monobloc pump allows for a maximum solid passage of up to 2.5 mm and can be immersed up to 70 meters deep. The product’s IP68 protection class is designed for durability in challenging environments. The mechanical seals consist of a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side. The pump body is made from a sturdy material, AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. These specifications contribute to sturdier submersible pumps. The motor shaft is constructed from AISI 431 stainless steel. Voltage options include three-phase versions of 380-400-415 V and single-phase versions of 220-230 V/230-240 V. The power input is rated at 1.8 kW, with an output of 1.2 kW, equivalent to 1.6 HP.
| Specification | Value | |
| H (m) | 34.5-91 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P1 (kW) | 1.8 | |
| P2 (kW) | 1.2 | |
| P2 (HP) | 1.6 | |
Saer 1.6 HP Monobloc Pump MBS-A/6 Materials
- mechanical seals on motor side: Graphite/alumina oxide
- mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- motor shaft: AISI 431 stainless steel

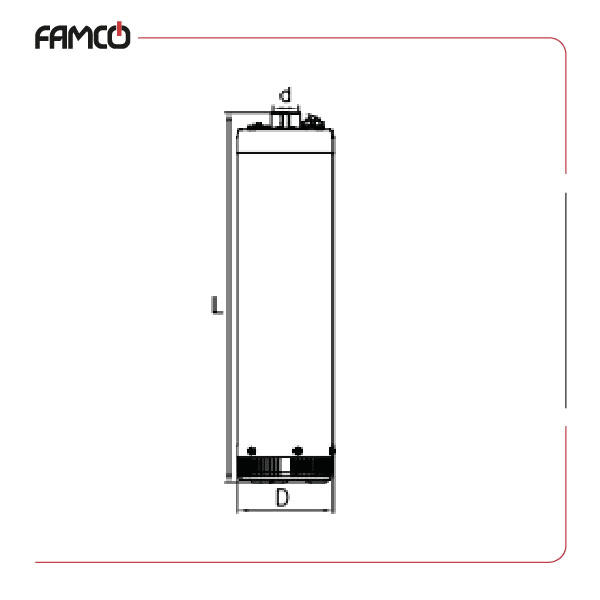

Saer 1.6 HP Monobloc Pump MBS-A/6 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 664 | L (mm) | 624 |
| Weight (kg) | 24.8 | Weight (kg) | 23.6 |
Saer 1.6 HP Monobloc Pump MBS-A/6 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.2 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 86 |
| H (m) | 91 | 90 | 88 | 85 | 80.5 | 72 | 64 | 53.5 | 42.5 | 34.5 |

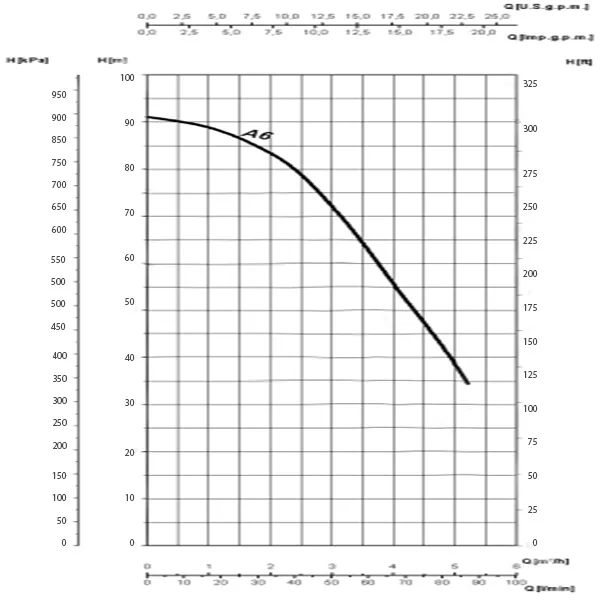

Saer 1.6 HP Monobloc Pump MBS-A/6 Performance Curve
Saer 1.6 HP Monobloc Pump MBS-A/6 Applications
- Industrial liquid transfer
- Residential drainage solutions
- Irrigation systems
- Wastewater management
Saer 1.6 HP Monobloc Pump MBS-A/6 Benefits
- High immersion depth capability
- Durable construction with stainless steel
- Efficient performance with low energy consumption
- Advanced sealing technology for leak prevention
Saer 1.6 HP Monobloc Pump MBS-A/6 Price List
| No. | Name | Price |
| 1 | Saer 1.6 HP Monobloc Pump MBS-A/6 Price | Contact us |
