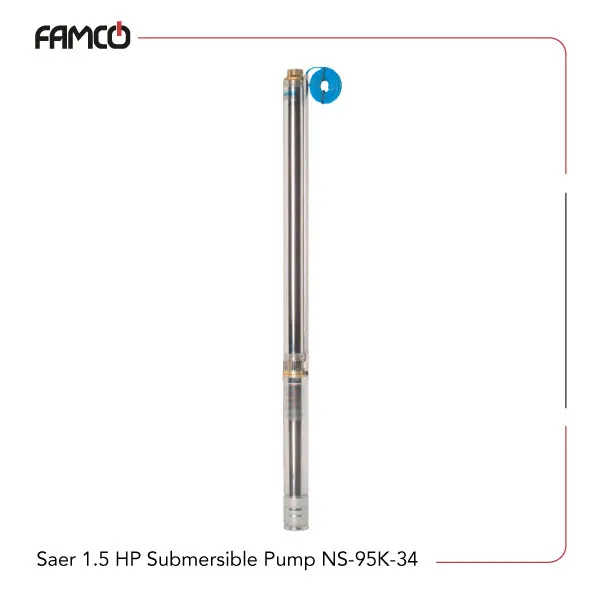

Saer 1.5 HP Submersible Pump NS-95K/34

Saer 1.5 HP Submersible Pump NS-95K/34 Specifications

This pump has a power output of 1.1 kW (1.5 HP) and suits both industrial and domestic applications. It operates within a voltage range of 230 to 400 volts and supports single-phase and three-phase power supplies, with current ratings of 9.6 A and 2.9 A respectively. This Saer submersible pump delivers a flow rate of 2 cubic meters per hour, equivalent to 33.3 liters per minute, suitable for steady liquid transfer. The maximum head reaches 196 meters, which supports liquid movement across substantial vertical distances. The pump works with liquids at temperatures from 0°C to 35°C and operates under a maximum pressure of 34 bar. It can function at immersion depths of up to 300 meters below the liquid level, suitable for deep-well and borehole installations. The construction and performance characteristics support use in demanding operating conditions across a wide range of pumping applications.

Specification	Value
Power (kW)	1.1
Power (HP)	1.5
Voltage (V)	230-400
Current (A)	2.9 (three-phase), 9.6 (single-phase)
Maximum Flow rate (m3/h)	2
Maximum Flow rate (l/min)	33.3
Maximum head (m)	196
Liquid Temperature	min 0°C, max 35°C
Maximum working pressure	34 bar
Maximum immersion depth	300 m under liquid level

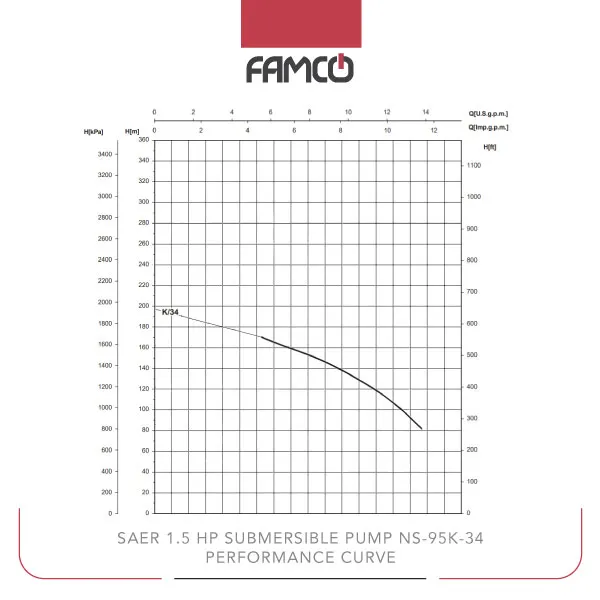

Saer 1.5 HP Submersible Pump NS-95K/34 Performance Data

Q (m3/h)	0	0,8	1	1,25	1,6	2
Q (l/min)	0	13,3	16,7	20,8	26,7	33,3
H (m)	196	170	160	150	126	85

Saer 1.5 HP Submersible Pump NS-95K/34 Applications

• Deep well water extraction
• Irrigation systems in agriculture
• Industrial liquid transfer
• Municipal water supply



Saer 1.5 HP Submersible Pump NS-95K/34 Benefits

• High efficiency with a 1.1 kW power output
• Suitable for deep immersion up to 300 meters
• Operates under high pressure up to 34 bar
• Flexible voltage options for different power supplies
