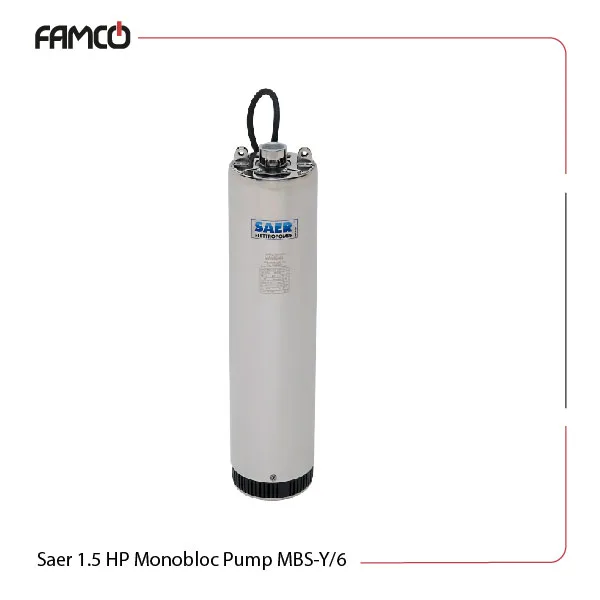

Saer 1.5 HP Monobloc Pump MBS-Y/6 Specifications
This Saer monobloc pump operates efficiently within a height range of 21 to 80 meters and is designed for a frequency of 50 Hz. This Saer pump handles liquid temperatures from 0 to 40 degrees Celsius and passes solids up to 2 mm through with ease. The maximum immersion depth is 70 meters for versatility in various applications. It is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power output is rated at 1.1 kW (1.5 HP) for P2 and 1.7 kW for P1. These submersible pumps have specs suited specefically for submerged applications.
With an IP68 protection class, this pump is well-suited for submerged operations. The mechanical seals consist of a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side for durability. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel to prevent ingress and corrosion.
| Specification | Value | |
| H (m) | 21-80 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 1.1 | |
| P2 (HP) | 1.5 | |
| P1 (kW) | 1.7 | |
Saer 1.5 HP Monobloc Pump MBS-Y/6 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

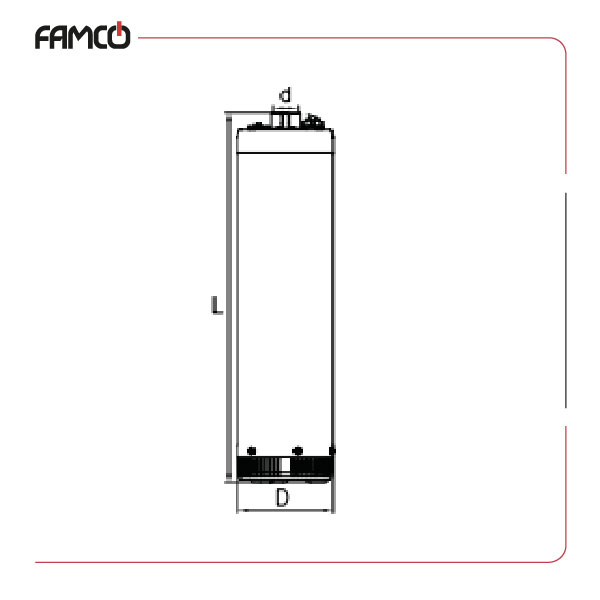

Saer 1.5 HP Monobloc Pump MBS-Y/6 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 646 | L (mm) | 626 |
| Weight (kg) | 25.2 | Weight (kg) | 23.7 |
Saer 1.5 HP Monobloc Pump MBS-Y/6 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 6 | 6.3 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 100 | 105 |
| H (m) | 80 | 77 | 75 | 71.5 | 68 | 63 | 58 | 50 | 26.5 | 21 |

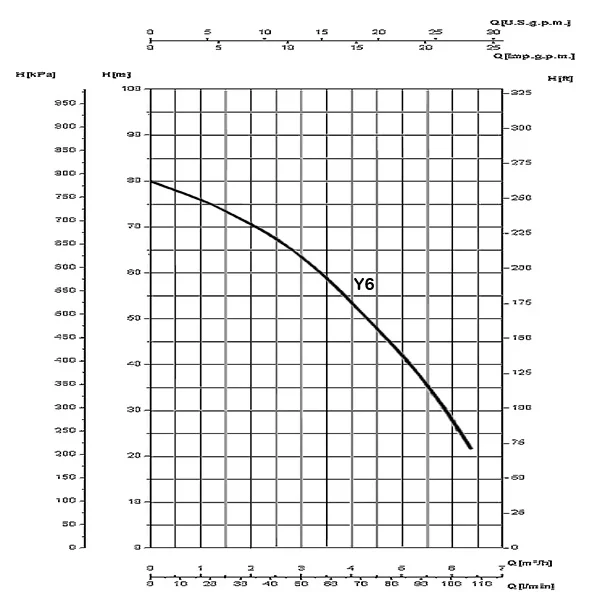

Saer 1.5 HP Monobloc Pump MBS-Y/6 Performance Curve
Saer 1.5 HP Monobloc Pump MBS-Y/6 Applications
- Water drainage in residential areas
- Irrigation systems for agriculture
- Industrial water management
- Aquarium and fish pond maintenance
Saer 1.5 HP Monobloc Pump MBS-Y/6 Benefits
- High efficiency with low energy consumption
- Durable materials ensure long-lasting performance
- Versatile applications across different sectors
- Reliable operation even in challenging conditions
Saer 1.5 HP Monobloc Pump MBS-Y/6 Price List
| No. | Name | Price |
| 1 | Saer 1.5 HP Monobloc Pump MBS-Y/6 Price | Contact us |
