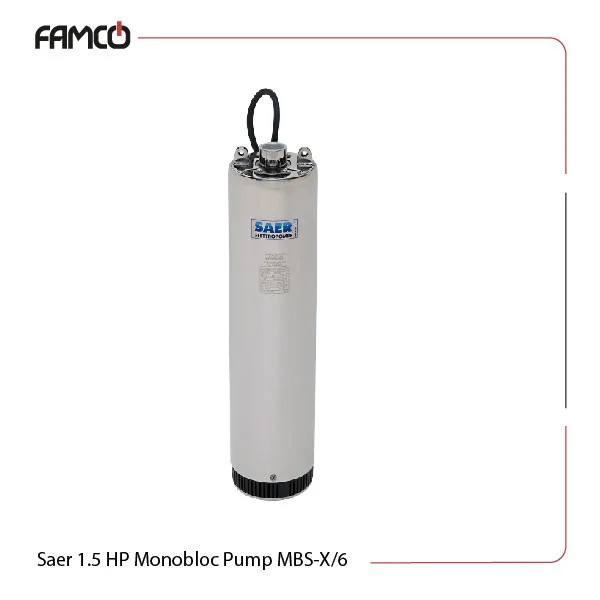

Saer 1.5 HP Monobloc Pump MBS-X/6 Specifications
This product reaches a height range of 28 to 88 meters for various applications. This Saer pump operates at a frequency of 50 Hz to ensure compatibility with standard electrical systems. The maximum liquid temperature it handles is between 0 to 40 degrees Celsius, which is suitable for many environments. Additionally, it allows a maximum solid passage of 2 mm for efficient operation without clogging. With a maximum immersion depth of 70 meters, this submersible pump is is the ultimate solution for deep applications. The power ratings include P1 at 1.5 kW and P2 at 1.1 kW, with P2 also rated at 1.5 HP to provide solid performance for demanding tasks.
| Specification | Value | |
| Head (m) | 28-88 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2 | |
| Max. Immersion depth (m) | 70 | |
| P1 (kW) | 1.5 | |
| P2 (kW) | 1.1 | |
| P2 (HP) | 1.5 | |
| Voltage (V) | Single-phase versions | 220-230 V/230-240 V |
| Three-phase versions | 380-400-415 V | |
| Protection class | IP68 | |
Saer 1.5 HP Monobloc Pump MBS-X/6 Materials
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- mechanical seal on motor side: Graphite/alumina oxide
- mechanical seal on pump side: alumina oxide/silicon carbide
Saer 1.5 HP Monobloc Pump MBS-X/6 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 626 | L (mm) | 606 |
| Weight (kg) | 23.8 | Weight (kg) | 22.3 |
Saer 1.5 HP Monobloc Pump MBS-X/6 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| H (m) | 88 | 86 | 83.5 | 77.5 | 69 | 58 | 45 | 28 |

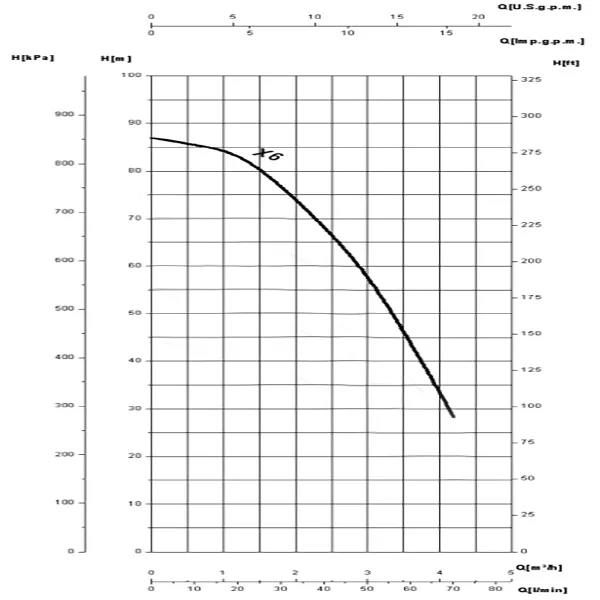

Saer 1.5 HP Monobloc Pump MBS-X/6 Performance Curve
Saer 1.5 HP Monobloc Pump MBS-X/6 Applications
- Water treatment facilities
- Agricultural irrigation systems
- Construction site dewatering
- Industrial fluid transfer
Saer 1.5 HP Monobloc Pump MBS-X/6 Benefits
- Versatile height and depth capabilities
- Efficient operation with minimal clogging
- Robust design for various environments
- Reliable performance in demanding applications
Saer 1.5 HP Monobloc Pump MBS-X/6 Price List
| No. | Name | Price |
| 1 | Saer 1.5 HP Monobloc Pump MBS-X/6 Price | Contact us |
There are no reviews yet.
