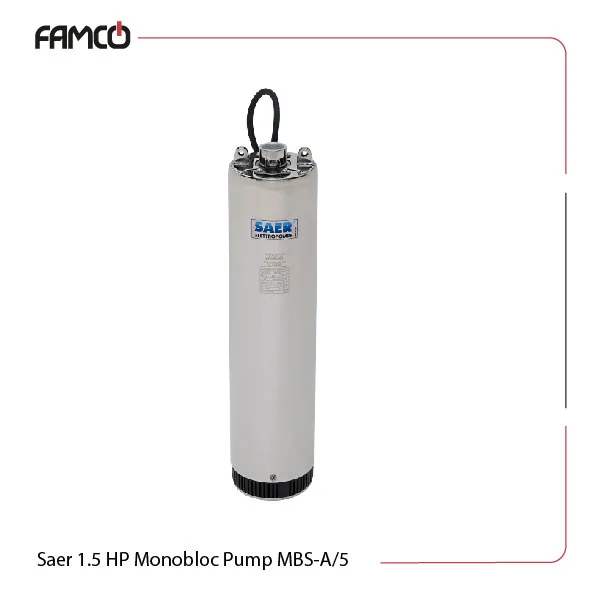

Saer 1.5 HP Monobloc Pump MBS-A/5 Specifications
This product features a height range of 29 to 75.5 meters, considering it is a versatile choice for various applications. This Saer monobloc pump operates at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 °C. The maximum solid passage is an impressive 2.5 mm, and it can be immersed up to 70 meters deep, suitable for deeper conditions. With an IP68 protection class, this product is designed to serve with durability in challenging environments. The mechanical seals in these Saer pumps include a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel. These submersible pumps are available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) configurations. The power input (P1) is 1.6 kW, with an output power (P2) of 1.1 kW or 1.5 HP.
| Specification | Value | |
| H (m) | 29-75.5 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P1 (kW) | 1.6 | |
| P2 (kW) | 1.1 | |
| P2 (HP) | 1.5 | |
Saer 1.5 HP Monobloc Pump MBS-A/5 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel
Saer 1.5 HP Monobloc Pump MBS-A/5 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 618 | L (mm) | 588 |
| Weight (kg) | 23.3 | Weight (kg) | 22.3 |
Saer 1.5 HP Monobloc Pump MBS-A/5 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.2 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 86 |
| H (m) | 75.5 | 75 | 73 | 70.5 | 66 | 60 | 52.5 | 43.5 | 35 | 29 |

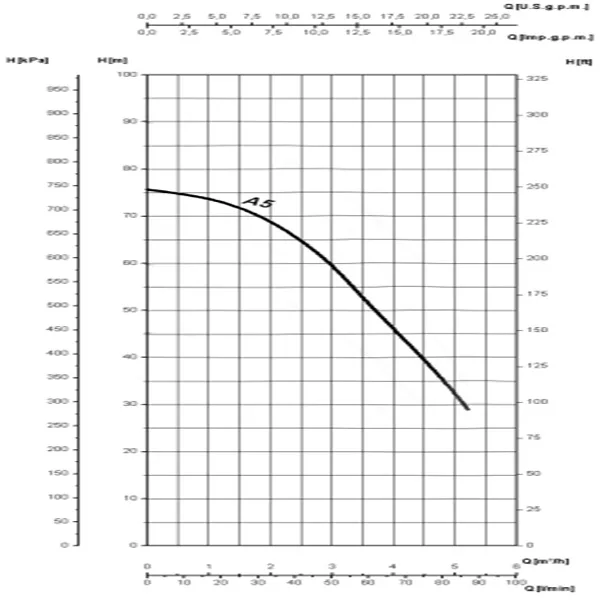

Saer 1.5 HP Monobloc Pump MBS-A/5 Performance Curve
Saer 1.5 HP Monobloc Pump MBS-A/5 Applications
- Wastewater treatment facilities
- Industrial fluid transfer
- Irrigation systems
- Aquaculture and fish farming
Saer 1.5 HP Monobloc Pump MBS-A/5 Benefits
- High durability due to stainless steel construction
- Efficient operation with low energy consumption
- Versatile for various liquid types and temperatures
- Reliable performance in challenging environments
Saer 1.5 HP Monobloc Pump MBS-A/5 Price List
| No. | Name | Price |
| 1 | 1.5 HP Monobloc Pump MBS-A/5 Price | Contact us |
