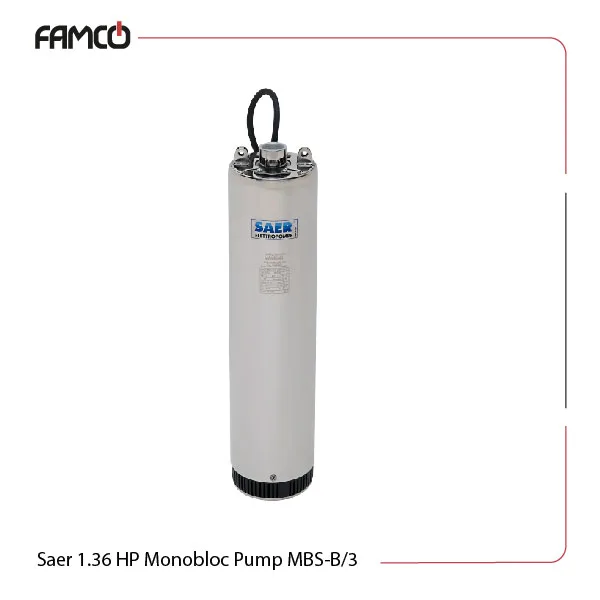

Saer 1.36 HP Monobloc Pump MBS-B/3 Specifications
This product is designed for powerful performance in various applications. This Saer monobloc pump has a height range of 12 to 41 meters and operates at a frequency of 50 Hz. The maximum liquid temperature handles is between 0 to 40 degrees Celsius. The product’s maximum immersion of 70 meters helps take care of tasks at different depths. It also allows a solid passage of up to 2.5 mm and can be immersed up to 70 meters deep. With an IP68 protection class, these submersible pumps are well-suited for challenging environments. The mechanical seals consist of a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel to reach maximum durability. This Saer pump is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power output is rated at 1 kW (1.36 HP) with a maximum input power of 1.5 kW.
| Specification | Value | |
| Head (m) | 12-41 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 1 | |
| P2 (HP) | 1.36 | |
| P1 (kW) | 1.5 | |
Saer 1.36 HP Monobloc Pump MBS-B/3 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

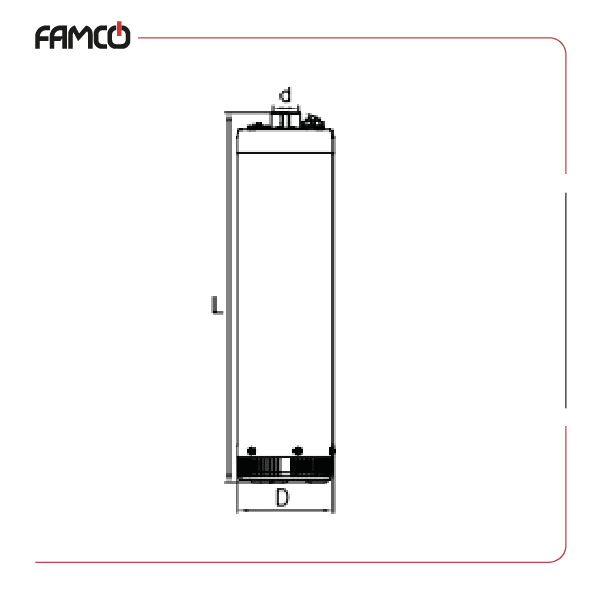

Saer 1.36 HP Monobloc Pump MBS-B/3 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 541 | L (mm) | 521 |
| Weight (kg) | 22.1 | Weight (kg) | 22.7 |
Saer 1.36 HP Monobloc Pump MBS-B/3 Technical Data
| Q (m3/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 7.2 | 8.4 | 9 |
| Q (l/min) | 0 | 20 | 40 | 60 | 80 | 120 | 140 | 150 |
| H (m) | 41 | 39.5 | 38 | 35.5 | 32.5 | 23 | 16.5 | 12 |
Saer 1.36 HP Monobloc Pump MBS-B/3 Performance Curve
Saer 1.36 HP Monobloc Pump MBS-B/3 Applications
- Industrial water transfer
- Wastewater management
- Irrigation systems
- Cooling systems
Saer 1.36 HP Monobloc Pump MBS-B/3 Benefits
- High durability due to stainless steel construction
- Effective in harsh environments with IP68 rating
- Versatile for various applications
- Efficient performance with low energy consumption
Saer 1.36 HP Monobloc Pump MBS-B/3 Price List
| No. | Name | Price |
| 1 | Saer 1.36 HP Monobloc Pump MBS-B/3 Price | Contact us |
