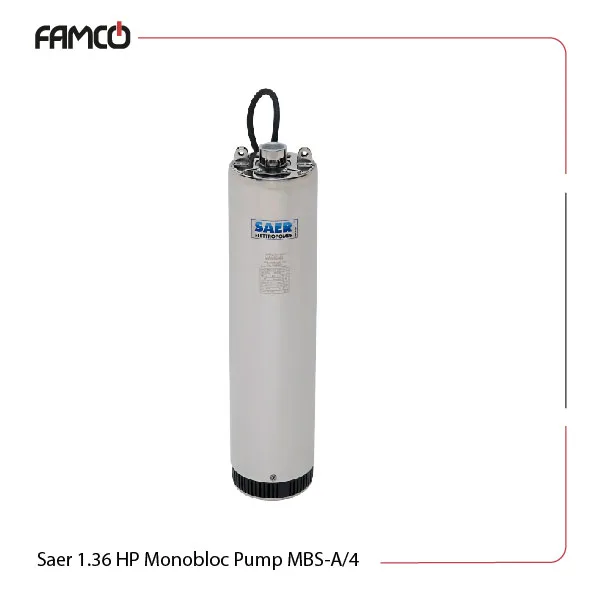

Saer 1.36 HP Monobloc Pump MBS-A/4

1 kW (1.36 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: Saer Pumps

Overview of Saer 1.36 HP Monobloc Pump MBS-A/4

The MBS-A/4 is a professional 1.36 HP choice. Demanding environments that require high performance pumps rely on a top-list of products to rely on. A head height of 60 meters and a 70-meter immersion depth make this pump ready for tasks with different requirements. The combination of durable materials and advanced sealing technology contribute to a steady performance. Ideal for industrial applications, this pump can manage both liquid and solid materials effectively. Its versatility has made a great choice out of this product for professionals looking for a dependable pumping solution. This model is provided in both single- or three-phase versions.

Saer 1.36 HP Monobloc Pump MBS-A/4 (single-phase)

Saer 1.36 HP Monobloc Pump MBS-A/4 (three-phase)

Saer 1.36 HP Monobloc Pump MBS-A/4 Specifications

Being a top-choice, this Saer pump’s design has allowed it to handle various liquids while maintaining efficiency. This pump operates efficiently within a height range of 22.5 to 60 meters at various applications. This Saer monobloc pump works at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 degrees Celsius. This pump can pass solids up to 2.5 mm in diameter, which is impressive, and functions well when immersed up to 70 meters deep. The product’s IP68 protection class is designed to withstand harsh conditions. The mechanical seals on this Saer pump product consist of graphite/alumina oxide on the motor side and alumina oxide/silicon carbide on the pump side for increased durability. The product’s pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft in this submersible pump is constructed from AISI 431 stainless steel for added strength and resistance to corrosion. It is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions, with a power input of 1.4 kW and an output of 1 kW (1.36 HP).

Specification	Value
H (m)	22.5-60
Frequency (Hz)	50
Max. Liquid temperature (°C)	0-40
Max. Solid passage (mm)	2.5
Max. Immersion depth (m)	70
Protection class	IP68
Voltage (V)	Three-phase versions	380-400-415 V
	Single-phase versions	220-230 V/230-240 V
P1 (kW)	1.4
P2 (kW)	1
P2 (HP)	1.36

Saer 1.36 HP Monobloc Pump MBS-A/4 Materials

Mechanical seals on motor side: Graphite/alumina oxide
Mechanical seals on pump side: alumina oxide/silicon carbide
Pump body: AISI 304 steel
Impellers and diffusers: thermoplastic resin
Motor shaft: AISI 431 stainless steel

Saer 1.36 HP Monobloc Pump MBS-A/4 Dimension and Weight

Dimensions (mm) and Weight (kg)
D (mm)		143
d		1”1/4
Single phase (230V)		Three-phase (400V)
L (mm)	571	L (mm)	551
Weight (kg)	22.4	Weight (kg)	21.1

Saer 1.36 HP Monobloc Pump MBS-A/4 Technical Data

Q (m3/h)	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.2
Q (l/min)	0	10	20	30	40	50	60	70	80	86
H (m)	60	59	58	55	51	47.5	42	33	27	22.5

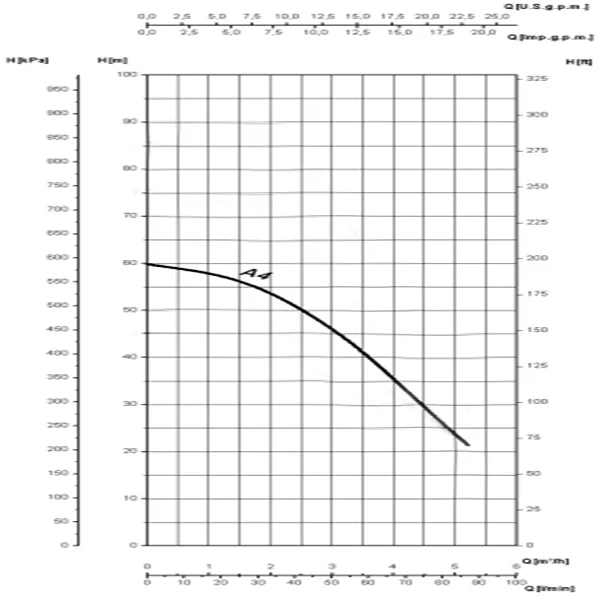

Saer 1.36 HP Monobloc Pump MBS-A/4 Performance Curve

Saer 1.36 HP Monobloc Pump MBS-A/4 Applications

Water supply systems
Irrigation and drainage
Industrial processes
Wastewater management

Saer 1.36 HP Monobloc Pump MBS-A/4 Benefits

High efficiency across various applications
Durable construction for long-lasting use
Ability to handle solids up to 2 mm
Versatile voltage options for different setups

Saer 1.36 HP Monobloc Pump MBS-A/4 Price List

No.	Name	Price
1	Saer 1.36 HP Monobloc Pump MBS-A/4 Price	Contact us

Brand	Saer
Maximum Delivery Head (m)	60
Frequency (Hz)	50
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	70
Degree of Protection	IP68
Voltage (V)	220-230, 230-240, 380, 400, 415
Power (kW)	1
Power (HP)	1.36
Pump Body	AISI 304
Applications	Draining flooded areas, Irrigation, Water Transfer and Supply
