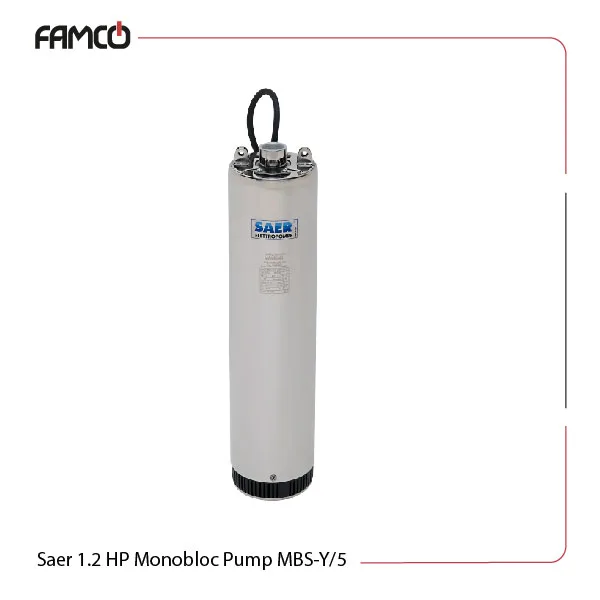

Saer 1.2 HP Monobloc Pump MBS-Y/5 Specifications
This product pumps water up to a height range of 16.5 to 64 meters which is versatile for various applications. This Saer monobloc pump operates at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 °C. This unique submersible pump can pass solids up to 2.5 mm in diameter and has a maximum immersion depth of 70 meters. The product’s IP68 protection class is designed for durability when put under challenging conditions.
The mechanical seals consist of graphite/alumina oxide on the motor side and alumina oxide/silicon carbide on the pump side for an overall reliable operation. These Saer pumps have thier body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel for added strength and longevity. It is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power output is 0.9 kW (1.2 HP) at P2 and 1.5 kW at P1.
| Specification | Value | |
| H (m) | 16.5-64 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 0.9 | |
| P2 (HP) | 1.2 | |
| P1 (kW) | 1.5 | |
Saer 1.2 HP Monobloc Pump MBS-Y/5 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

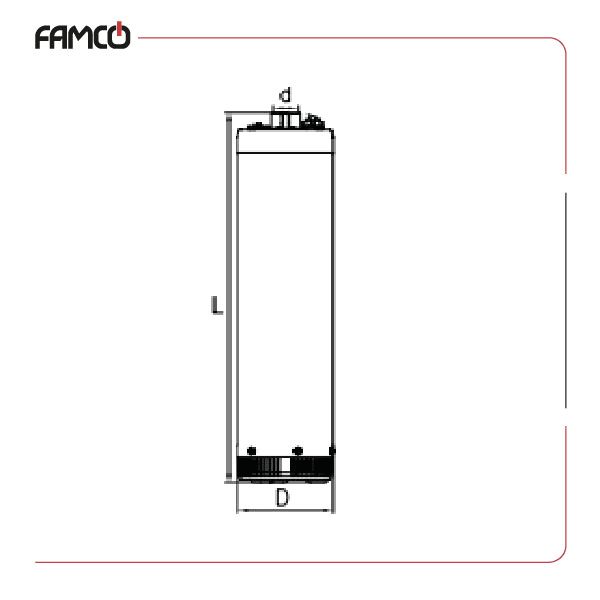

Saer 1.2 HP Monobloc Pump MBS-Y/5 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 560 | L (mm) | 580 |
| Weight (kg) | 23.7 | Weight (kg) | 22.2 |
Saer 1.2 HP Monobloc Pump MBS-Y/5 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 6 | 6.3 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 100 | 105 |
| H (m) | 64 | 61.5 | 59 | 56 | 53.5 | 49.5 | 45 | 39.5 | 20 | 16.5 |

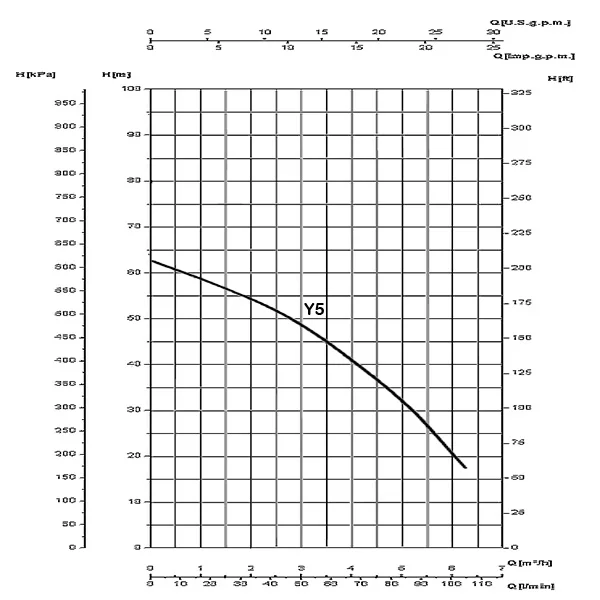

Saer 1.2 HP Monobloc Pump MBS-Y/5 Performance Curve
Saer 1.2 HP Monobloc Pump MBS-Y/5 Applications
- Industrial water supply systems
- Wastewater treatment facilities
- Irrigation systems for agriculture
- Cooling systems in manufacturing processes
Saer 1.2 HP Monobloc Pump MBS-Y/5 Benefits
- High durability due to quality materials
- Versatile height and temperature range
- Efficient operation with low energy consumption
- Reliable performance in harsh conditions
Saer 1.2 HP Monobloc Pump MBS-Y/5 Price List
| No. | Name | Price |
| 1 | Saer 1.2 HP Monobloc Pump MBS-Y/5 Price | Contact us |
