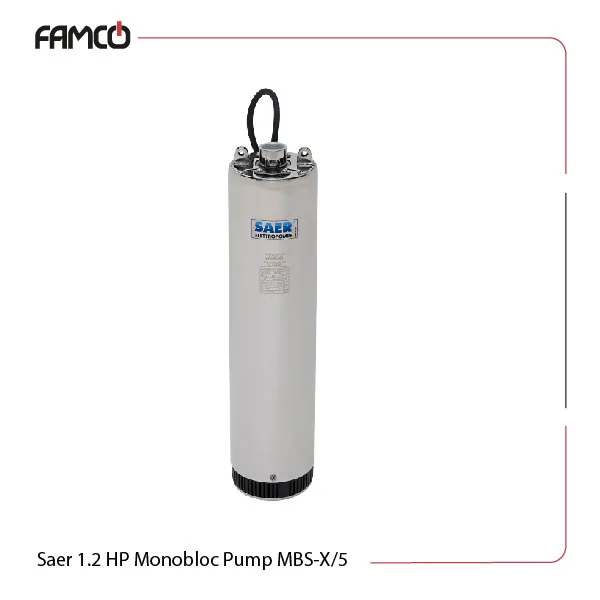

Saer 1.2 HP Monobloc Pump MBS-X/5 Specifications
This product features a height range of 24.5 to 72.5 meters coming in with versatility for various applications. This Saer pump operates at a frequency of 50 Hz to enhance compatibility with standard electrical systems. The maximum liquid temperature in this submersible pump handles ranges between 0 to 40 degrees Celsius, which is suitable for many environments. Additionally, this product regulates solids by passing them up to 2 mm for efficient operation in mixed media. The product’s maximum immersion depth of 70 meters is ideal for deep installations. The power ratings include P1 at 1.3 kW and P2 at 0.9 kW, with P2 also rated at 1.2 HP to provide reliable performance for demanding tasks.
| Specification | Value | |
| H (m) | 24.5-72.5 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2 | |
| Max. Immersion depth (m) | 70 | |
| P1 (kW) | 1.3 | |
| P2 (kW) | 0.9 | |
| P2 (HP) | 1.2 | |
| Voltage (V) | Single-phase versions | 220-230 V/230-240 V |
| Three-phase versions | 380-400-415 V | |
| Protection class | IP68 | |
Saer 1.2 HP Monobloc Pump MBS-X/5 Materials
- mechanical seals on motor side: Graphite/alumina oxide
- mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
Saer 1.2 HP Monobloc Pump MBS-X/5 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 590 | L (mm) | 570 |
| Weight (kg) | 22.6 | Weight (kg) | 21.3 |

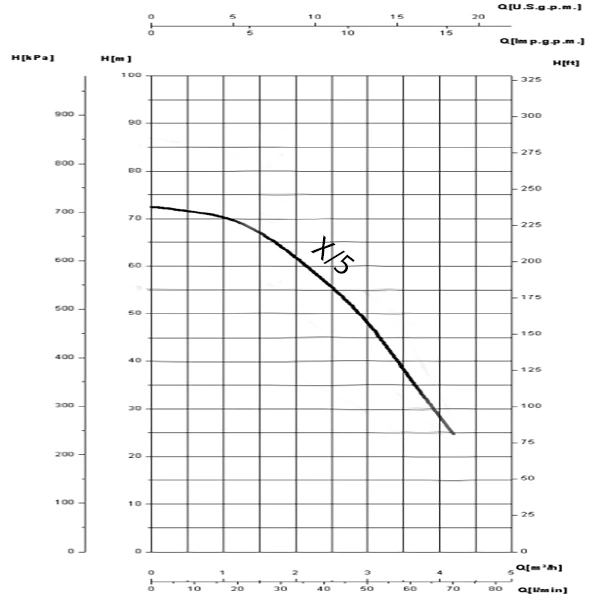

Saer 1.2 HP Monobloc Pump MBS-X/5 Performance Curve
Saer 1.2 HP Monobloc Pump MBS-X/5 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| H (m) | 72.5 | 71.5 | 70 | 64.5 | 57 | 47 | 37 | 24.5 |
Saer 1.2 HP Monobloc Pump MBS-X/5 Applications
- Water supply systems
- Irrigation systems
- Industrial fluid transfer
- Wastewater management
Saer 1.2 HP Monobloc Pump MBS-X/5 Benefits
- Versatile height adjustment for different needs
- Efficient operation at various temperatures
- Handles solids up to 2 mm for mixed media
- Powerful motor for reliable performance
Saer 1.2 HP Monobloc Pump MBS-X/5 Price List
| No. | Name | Price |
| 1 | Saer 1.2 HP Monobloc Pump MBS-X/5 Price | Contact us |
