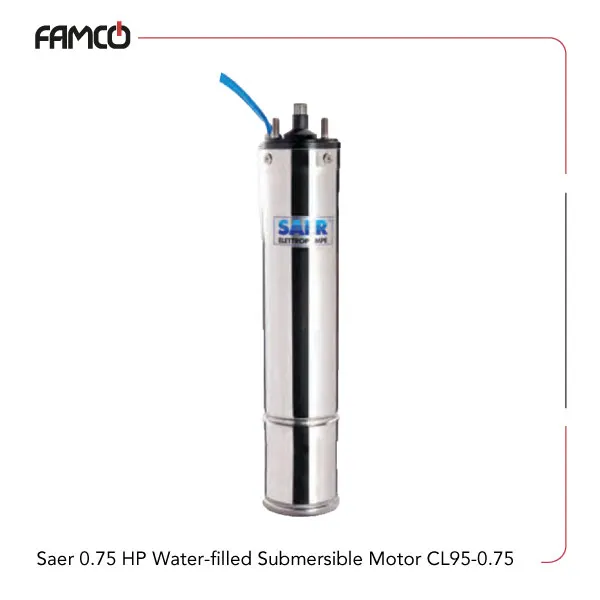

Saer 0.75 HP Water-filled Submersible Motor CLE95-0.75 Specifications
Saer water-filled submersible motor CLE95-0.75 features a power output of 0.55 kW, equivalent to 0.75 HP, suitable for various demanding applications. It operates within a voltage range of 230 to 400 volts, accommodating both single-phase and three-phase power supplies. The current draw is 4.3 amperes for single-phase setups and 1.9 amperes for three-phase systems, making it energy-efficient and cost-effective. The motor runs at a speed of 3000 RPM, ensuring reliable performance for continuous operation. Its efficiency rates are 58% for single-phase and 67% for three-phase configurations, indicating good energy utilization. The power factor is high at 0.9 for single-phase and 0.6 for three-phase, which helps reduce energy losses. Designed to operate in liquid temperatures up to 35°C, the device can be submerged to a maximum depth of 200 meters, making it ideal for deep water applications. This Saer submersible motor boasts an IP68 protection degree, ensuring complete protection against dust and water ingress, suitable for harsh environments. The insulation class F provides high thermal resistance, enhancing durability and safety during prolonged use.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Voltage (V) | 230-400 |
| Current (A) | 4.3 (Single-phase), 1.9 (Three-phase) |
| Speed (RPM) | 3000 |
| Efficiency (η) | 58 (Single-phase), 67 (Three-phase) |
| Power factor (Cosφ) | 0.9 (Single-phase), 0.6 (Three-phase) |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 0.75 HP Water-filled Submersible Motor CLE95-0.75 Applications
- Deep water pumping systems
- Industrial fluid transfer
- Agricultural irrigation
- Water treatment facilities
Saer 0.75 HP Water-filled Submersible Motor CLE95-0.75 Benefits
- High durability in harsh environments
- Energy-efficient operation
- Suitable for deep water applications
- Reliable performance with high thermal resistance
Saer 0.75 HP Water-filled Submersible Motor CLE95-0.75 Price List
| No. | Name | Price |
| 1 | Saer 0.75 HP Water-filled Submersible Motor CLE95-0.75 Price | Contact us |
There are no reviews yet.
