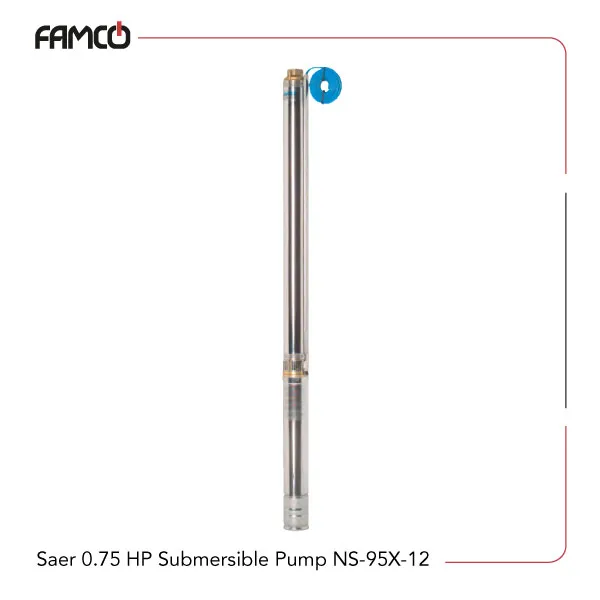

Saer 0.75 HP Submersible Pump NS-95X/12 Specifications
Saer 0.75 HP submersible pump NS-95X/12 operates with a power of 0.55 kW (0.75 HP) and supports voltage ranges from 230 to 400 volts. It draws a current of 1.6 amperes in three-phase mode and up to 5.7 amperes in single-phase mode. The device has a flow rate of 5 cubic meters per hour, which translates to approximately 83.3 liters per minute. It can generate a maximum head of 58 meters, providing strong vertical lift capabilities. This Saer submersible pump is designed to handle liquids within a temperature range from 0°C to 35°C, ensuring safe operation in typical environments. It can withstand a maximum working pressure of 34 bar, making it robust for high-pressure applications. Additionally, the pump can operate at depths up to 300 meters below the liquid level, making it ideal for deep well or submersible applications. Its versatile specifications make it suitable for industrial, agricultural, and water management tasks, providing reliable performance across different settings and requirements.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Voltage (V) | 230-400 |
| Current (A) | 1.6 (three-phase), 5.7 (single-phase) |
| Maximum Flow rate (m3/h) | 5 |
| Maximum Flow rate (l/min) | 83.3 |
| Maximum head (m) | 58 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

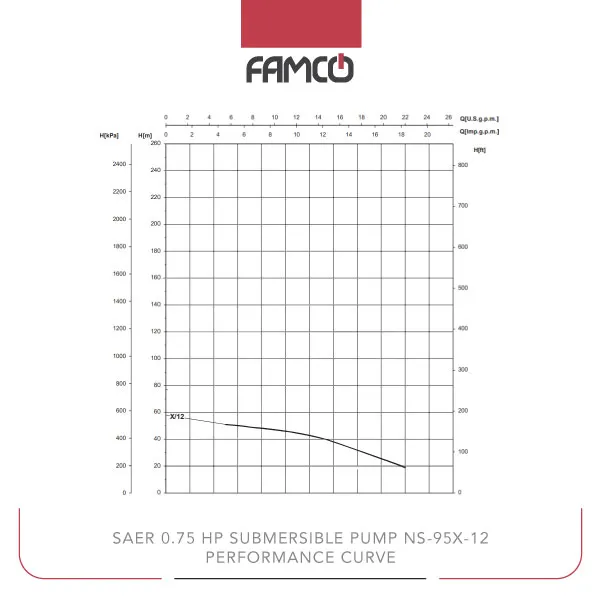

Saer 0.75 HP Submersible Pump NS-95X/12 Performance Data
| Q (m3/h) | 0 | 0.8 | 1 | 1.25 | 1.6 | 2 | 14,1 | 17,6 | 22 |
| Q (l/min) | 0 | 20,8 | 26,7 | 30 | 33,3 | 41,7 | 53,3 | 66,7 | 83,3 |
| H (m) | 58 | 51 | 50 | 48,5 | 47,5 | 46 | 42 | 32 | 19 |
Saer 0.75 HP Submersible Pump NS-95X/12 Applications
- Deep well water extraction
- Irrigation systems
- Industrial fluid transfer
- Municipal water supply
Saer 0.75 HP Submersible Pump NS-95X/12 Benefits
- High efficiency with low power consumption
- Supports deep immersion up to 300 meters
- Operates under high pressure up to 34 bar
- Suitable for both single-phase and three-phase power sources
Saer 0.75 HP Submersible Pump NS-95X/12 Price List
| No. | Name | Price |
| 1 | Saer 0.75 HP Submersible Pump NS-95X/12 Price | Contact us |
