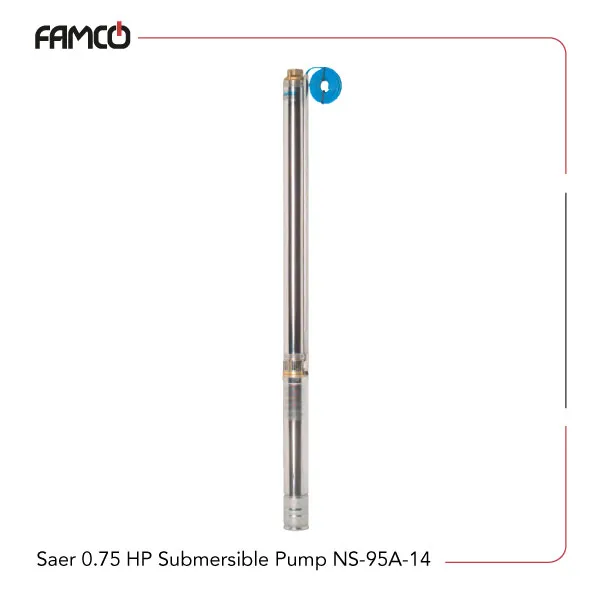

Saer 0.75 HP Submersible Pump NS-95A/14 Specifications
This pump operates with a power of 0.55 kW (0.75 HP) and supports voltages between 230 and 400 volts. It can draw a current of 1.6 amps in a three-phase setup or 5.7 amps with a single-phase connection. The device has a flow rate of 3.2 cubic meters per hour, which translates to 53.3 liters per minute, making it suitable for various fluid transfer tasks. It can generate a maximum head of 70.5 meters, allowing it to lift liquids over significant heights. This Saer submersible pump is designed to work efficiently within a temperature range from 0°C to 35°C, ensuring versatility in different environments. It can withstand a maximum working pressure of 34 bar, making it robust for high-pressure applications. Additionally, the pump can operate at depths up to 300 meters below the liquid level, making it ideal for deep water or underground applications. Its construction and specifications make it suitable for industrial, agricultural, or water management tasks where reliable and efficient fluid movement is required.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Voltage (V) | 230-400 |
| Current (A) | 1.6 (three-phase), 5.7 (single-phase) |
| Flow rate (m3/h) | 3.2 |
| Flow rate (l/min) | 53.3 |
| Maximum head (m) | 70.5 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

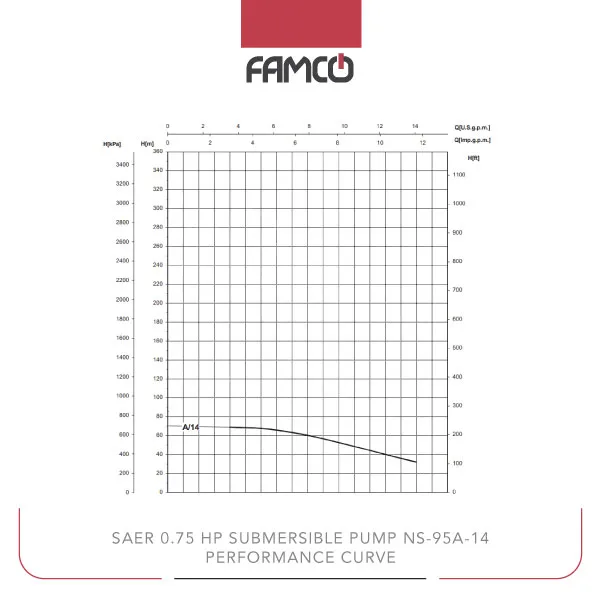

Saer 0.75 HP Submersible Pump NS-95A/14 Performance Data
| Q (m3/h) | 0 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.2 |
| Q (l/min) | 0 | 13.3 | 16.7 | 20.8 | 26.7 | 33.3 | 41.7 | 53.3 |
| H (m) | 70,5 | 69 | 68,5 | 68 | 63,5 | 57 | 46,5 | 32 |
Saer 0.75 HP Submersible Pump NS-95A/14 Applications
- Deep well water pumping
- Irrigation systems
- Industrial fluid transfer
- Water supply for remote locations
Saer 0.75 HP Submersible Pump NS-95A/14 Benefits
- High flow rate and head capacity for demanding tasks
- Supports both single-phase and three-phase power sources
- Operates efficiently within a wide temperature range
- Robust construction for long-term durability
Saer 0.75 HP Submersible Pump NS-95A/14 Price List
| No. | Name | Price |
| 1 | Saer 0.75 HP Submersible Pump NS-95A/14 Price | Contact us |
