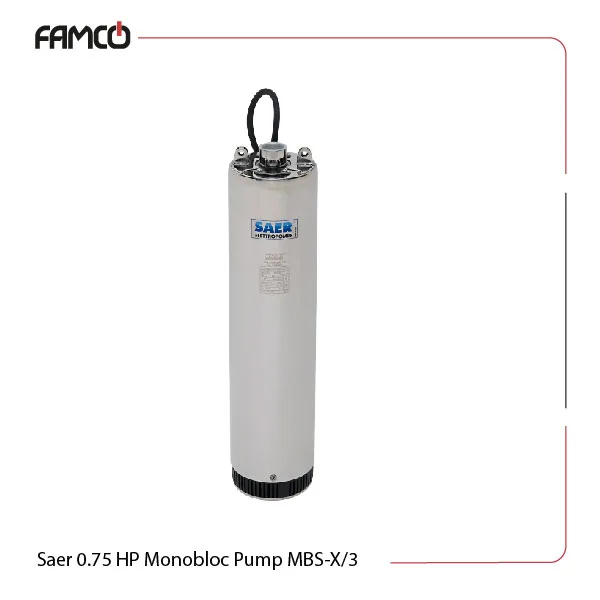

Saer 0.75 HP Monobloc Pump MBS-X/3

0.55 kW (0.75 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: Saer Pumps

Overview of Saer MBS-X/3 Monobloc Pump

This MBS-X/3 is a solid choice with a 0.75 HP pumping force. Just a glimpse into its features, such a 70-meter maximum immersin depth and 44.5 meter head height, shows how sturdy it is. This pump comes in with a solid construction and impressive specifications to make it suitable for both residential and industrial use. The ability to handle varying liquid temperatures from 0-40 °C degress and solid passage (up to 2 mm) makes it versatile for different applications. Its compact size allows for easy installation in tight spaces for optimal performance with diverse applications. This model is provided in both single- or three-phase versions.

Saer 0.75 HP Monobloc Pump MBS-X/3 (single-phase)

Saer 0.75 HP Monobloc Pump MBS-X/3 (three-phase)

Saer 0.75 HP Monobloc Pump MBS-X/3 Specifications

This product features a compact design with a diameter of 143 mm and a length of 512 mm for the first-phase model, while the three-phase version measures 502 mm. Much like other Saer pumps, this one operates efficiently at a frequency of 50 Hz conditioned to handle liquid temperatures ranging from 0 to 40 °C. The maximum solid passage in this unique submersible pump is 2 mm, and could be submerged to up to 70 meters deep. Power ratings include P1 at 0.9 kW and P2 at 0.55 kW which is equivalent to 0.75 HP. Weighing 20.2 kg for the first-phase and 19.8 kg for the three-phase model, this product presents users with lasting performance in various applications.

Specification	Value
H (m)	17-44.5
Frequency (Hz)	50
Max. Liquid temperature (°C)	0-40
Max. Solid passage (mm)	2
Max. Immersion depth (m)	70
P2 (kW)	0.55
P2 (HP)	0.75
Voltage (V)	Single-phase versions	220-230 /230-240
	Three-phase versions	380-400-415
Protection class	IP68

Saer 0.75 HP Monobloc Pump MBS-X/3 Materials

Pump body: AISI 304 steel
Impellers and diffusers: thermoplastic resin
motor shaft: AISI 431 stainless steel
mechanical seals on motor side: Graphite/alumina oxide
mechanical seals on pump side: alumina oxide/silicon carbide

Saer 0.75 HP Monobloc Pump MBS-X/3 Dimensions

Dimensions (mm) and Weight (kg)
D (mm)		143
d		1”1/4
Single phase (230V)		Three-phase (400V)
L (mm)	512	L (mm)	502
Weight (kg)	20.2	Weight (kg)	19.8

Saer 0.75 HP Monobloc Pump MBS-X/3 Data

Q (m3/h)	0	0.6	1.2	1.8	2.4	3	3.6	4.2
Q (l/min)	0	10	20	30	40	50	60	70
H (m)	44.5	43	42	38	34	29	24	17

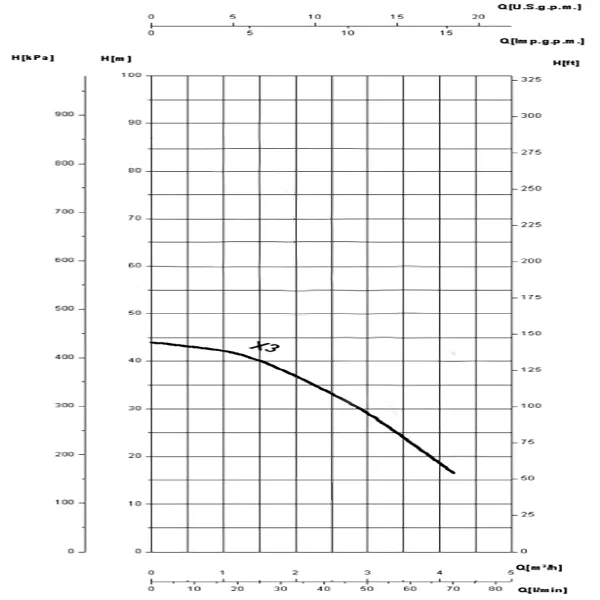

Saer MBS-X/3 Monobloc Performance Curve

Saer MBS-X/3 Monobloc Pump Applications

Water pumping in residential settings
Industrial fluid transfer
Irrigation systems for agriculture
Wastewater management

Saer MBS-X/3 Monobloc Pump Benefits

Compact design for easy installation
Durable construction for long-lasting use
Versatile for various applications
Efficient power consumption

Saer MBS-X/3 Monobloc Pump Price List

No.	Name	Price
1	Saer 0.75 HP Monobloc Pump MBS-X/3 Price	Contact us

Brand	Saer
Maximum Delivery Head (m)	44.5
Frequency (Hz)	50
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	70
Power (kW)	0.55
Power (HP)	0.75
Voltage (V)	220-230, 230-240, 380, 400, 415
Degree of Protection	IP68
Pump Body	AISI 304
Applications	Irrigation, Wastewater management, Water Transfer and Supply
