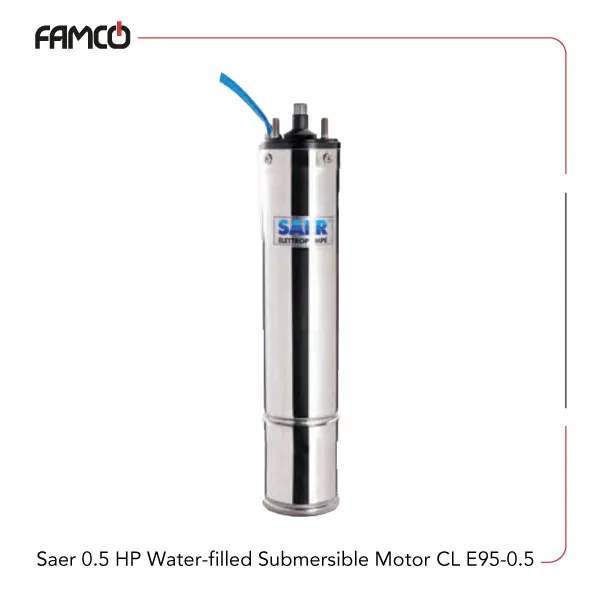

Saer 0.5 HP Water-filled Submersible Motor CL95-0.5 Specifications
Saer water-filled submersible motor CL95-0.5 features a power output of 0.37 kW (0.5 HP), operating at a voltage of 230V with a current draw of 4.8A. It runs at a speed of 3000 RPM and has an efficiency of 56%. This Saer submersible motor maintains a power factor of 0.7, ensuring efficient energy use. It is designed to operate in liquids up to 35°C and can be immersed to a maximum depth of 200 meters. The protection degree is IP68, making it highly resistant to dust and water ingress, suitable for harsh environments. The insulation class is F, providing reliable insulation performance under demanding conditions.
| Specification | Value |
| Power (kW) | 0.37 |
| Power (HP) | 0.5 |
| Voltage (V) | 230 |
| Current (A) | 4.8 |
| Speed (RPM) | 3000 |
| Efficiency (η) | 56 |
| Power factor (Cosφ) | 0.7 |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 0.5 HP Water-filled Submersible Motor CL95-0.5 Applications
- Submersible water pumps for deep wells
- Industrial liquid transfer systems
- Aquarium and aquatic facility maintenance
- Marine and underwater equipment
Saer 0.5 HP Water-filled Submersible Motor CL95-0.5 Benefits
- High durability with IP68 protection rating
- Energy-efficient operation with 56% efficiency
- Suitable for deep water immersion up to 200 meters
- Reliable insulation with class F for safety
Saer 0.5 HP Water-filled Submersible Motor CL95-0.5 Price List
| No. | Name | Price |
| 1 | Saer 0.5 HP Water-filled Submersible Motor CL95-0.5 Price | Contact us |
