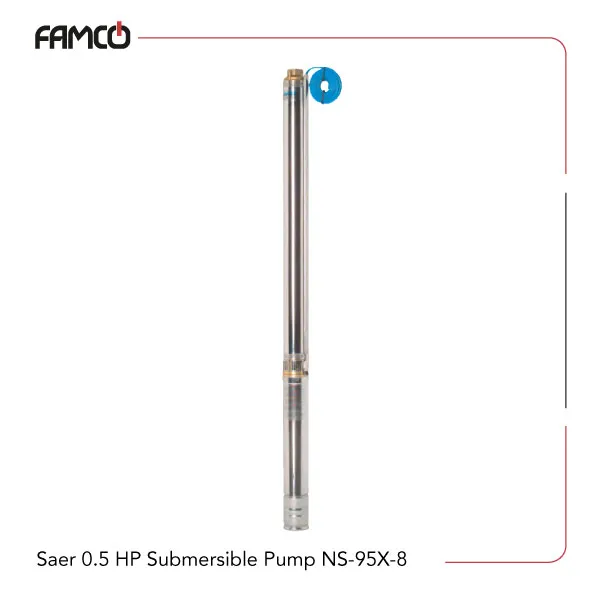

Saer 0.5 HP Submersible Pump NS-95X/8

Saer 0.5 HP Submersible Pump NS-95X/8 Specifications

This pump has a power rating of 0.37 kW (0.5 HP) and operates within a voltage range of 230 to 400 volts. It draws 1.5 amperes in a three-phase configuration or 4.8 amperes with a single-phase connection. The pump delivers a flow rate of 5 cubic meters per hour, equivalent to approximately 83.3 liters per minute. The maximum head reaches 39 meters, suitable for a wide range of lifting requirements. The pump works with liquids at temperatures between 0°C and 35°C and supports a maximum working pressure of 34 bar. This Saer submersible pump can operate at immersion depths of up to 300 meters below the liquid level, suitable for deep-water installations. The solid construction and efficient output suit both industrial and residential applications, particularly systems that require high-pressure water transfer or deep-well operation.

Specification	Value
Power (kW)	0.37
Power (HP)	0.5
Voltage (V)	230-400
Current (A)	1.5 (three-phase), 4.8 (single-phase)
Flow rate (m3/h)	5
Flow rate (l/min)	83.3
Maximum head (m)	39
Liquid Temperature	min 0°C, max 35°C
Maximum working pressure	34 bar
Maximum immersion depth	300 m under liquid level

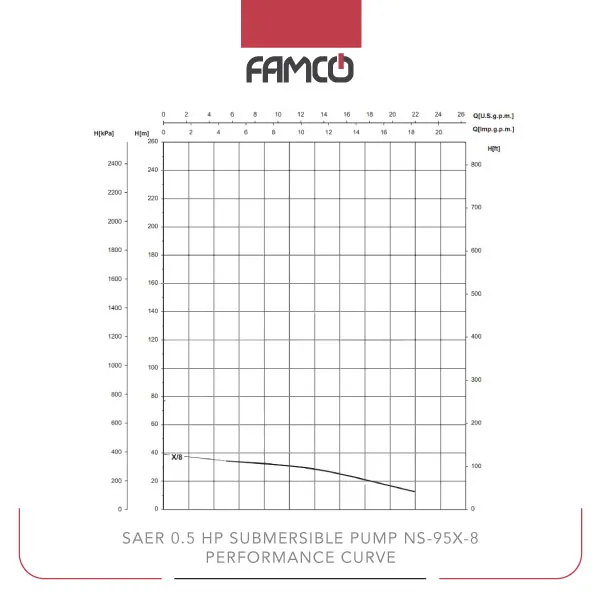

Saer 0.5 HP Submersible Pump NS-95X/8 Performance Data

Q (m3/h)	0	1.25	1.6	2	2.5	3.2	4	5
Q (l/min)	0	20.8	26.7	33.3	41.7	53,3	66,7	83,3
H (m)	39	34.5	33.5	325	31	28	21	12.5

Saer 0.5 HP Submersible Pump NS-95X/8 Applications

• Deep well water extraction
• Irrigation systems
• Industrial water transfer
• High-pressure water supply



Saer 0.5 HP Submersible Pump NS-95X/8 Benefits

• High efficiency with low power consumption
• Supports both single-phase and three-phase power
• Suitable for deep water applications up to 300 meters
• Reliable performance under high pressure up to 34 bar
