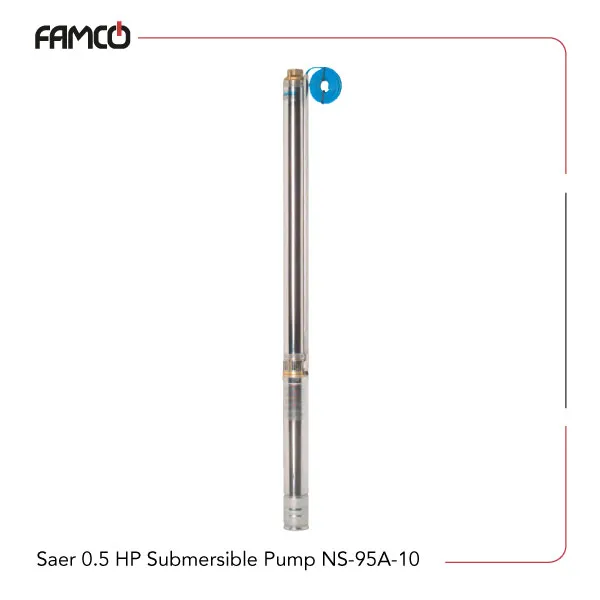

Saer 0.5 HP Submersible Pump NS-95A/10 Specifications
Saer submersible pump NS-95A/10 has a power output of 0.37 kW (0.5 HP) and suits a wide range of pumping tasks. It operates within a voltage range of 230 to 400 volts and supports both single-phase and three-phase power supplies, with current ratings of 1.5 A and 4.8 A respectively. This Saer submersible pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, suitable for various liquid transfer requirements. The maximum head reaches 50.5 meters, which supports strong vertical lift performance. The pump works with liquids at temperatures from 0°C to 35°C and operates under a maximum working pressure of 34 bar. It supports installation at depths of up to 300 meters below the liquid level, suitable for deep submersion applications across different environments.
| Specification | Value |
| Power (kW) | 0.37 |
| Power (HP) | 0.5 |
| Voltage (V) | 230-400 |
| Current (A) | 1.5 (three-phase), 4.8 (single-phase) |
| Flow rate (m3/h) | 3.2 |
| Flow rate (l/min) | 53.3 |
| Maximum head (m) | 50.5 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

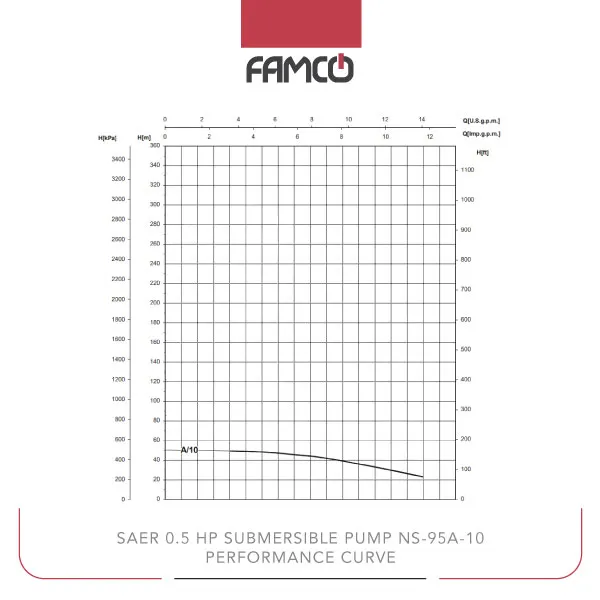

Saer 0.5 HP Submersible Pump NS-95A/10 Performance Data
| Q (m3/h) | 0 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.2 |
| Q (l/min) | 0 | 13.3 | 16.7 | 20.8 | 26.7 | 33.3 | 41.7 | 53.3 |
| H (m) | 50.5 | 49.5 | 49 | 48.5 | 45.5 | 42 | 35 | 23 |
Saer 0.5 HP Submersible Pump NS-95A/10 Applications
- Water supply systems
- Deep well pumping
- Irrigation projects
- Industrial liquid transfer
Saer 0.5 HP Submersible Pump NS-95A/10 Benefits
- High efficiency with low power consumption
- Supports both single-phase and three-phase power
- Capable of operating at great depths up to 300 meters
- Robust construction for high-pressure environments
Saer 0.5 HP Submersible Pump NS-95A/10 Price List
| No. | Name | Price |
| 1 | Saer 0.5 HP Submersible Pump NS-95A/10 Price | Contact us |
