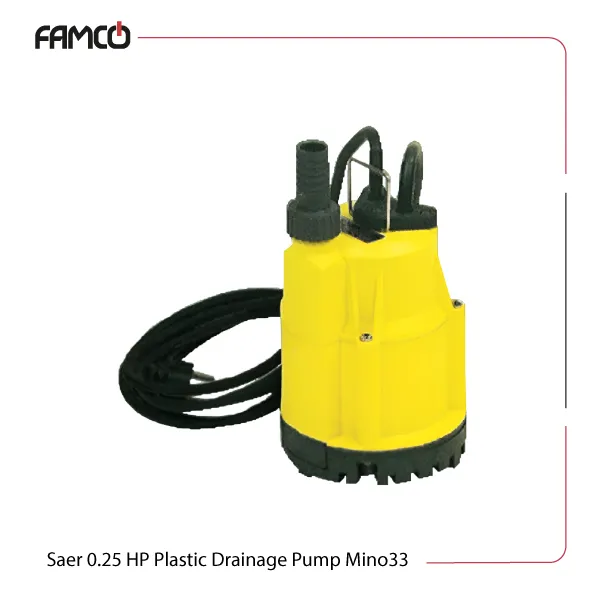

Saer 0.25 HP Plastic Drainage Pump Mino33 Specifications
This pump features a head range of 1.7 to 6 meters, suitable for various applications. It can handle liquids at a maximum temperature of 40℃. The insulation class in this product is rated at F, ensuring safe operation in different environments. The product’s protection class of IP68 is designed to withstand dust and water immersion. This plastic drainage Saer pump operates at a power of 0.185 kW or 0.25 HP, providing efficient performance. The pump’s body is made from durable PP, while the impeller is crafted from Noryl for enhanced longevity. A double lip seal mechanical seal ensures minimal leakage, and the shaft is constructed from stainless steel AISI 431 for added strength and corrosion resistance.
| Specification | Value |
| Head (m) | 1.7-6 |
| Max. liquid temperature | 40℃ |
| Insulation class | F |
| Protection class | IP68 |
| Power (kW) | 0.185 |
| Power (HP) | 0.25 |
| Max. flow rate (l/min) | 70 |
Saer 0.25 HP Plastic Drainage Pump Mino33 Materials
- pump body: PP
- Impeller: Noryl
- Mechanical seal: double lip seal
- shafT: stainless steel, AISI 431
Saer Mino33 Plastic Drainage Pump Technical Data
| m3/h | 0.3 | 0.6 | 0.9 | 1.2 | 1.3 | 1.8 | 2.4 | 3 | 3.6 | 4.2 |
| 1/min | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 |
| 1/min | 5.9 | 5.7 | 5.5 | 5.3 | 5 | 4.7 | 4.2 | 3.5 | 2.6 | 1.7 |
Saer Mino33 Plastic Drainage Pump Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Aquarium and pond circulation
- Industrial liquid handling
Saer Mino33 Plastic Drainage Pump Benefits
- Durable construction for long-lasting use
- High efficiency with low power consumption
- Waterproof design for reliable operation
- Versatile applications across different sectors
Saer Mino33 Plastic Drainage Pump Price List
| No. | Name | Price |
| 1 | Saer Mino33 Plastic Drainage Pump Price | Contact us |
