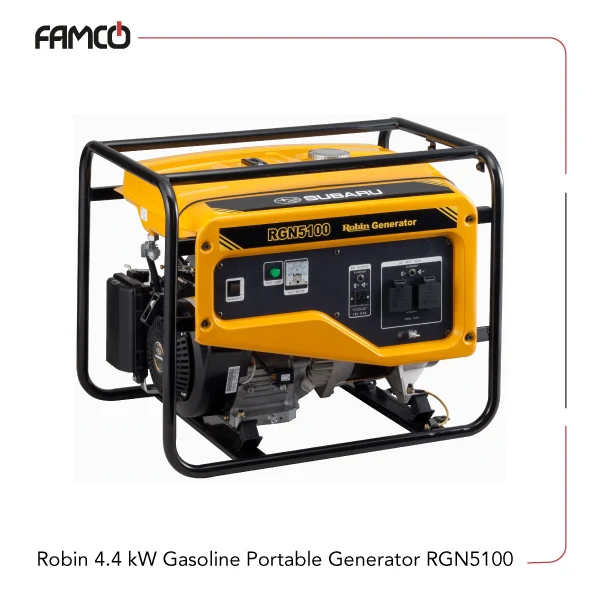

Robin 4.4 kW Gasoline Portable Generator RGN5100 Specifications
Robin 4.4 kW gasoline portable generator RGN5100 features a self-exciting, 2-pole, single-phase brush design, suitable for various power needs. It operates on an AVR type voltage regulator, ensuring stable voltage output. The device supports multiple frequency and voltage configurations, including 50Hz at 220V, 240V, and 60Hz at 110V, 220V, making it versatile for different regions. Its maximum power output reaches 4.4 kW at 50Hz and 5.1 kW at 60Hz, with rated outputs of 3.6 kW and 4.2 kW respectively. The power factor is maintained at 1.0 for efficiency. It provides a DC output of 12V at 8.3A, suitable for charging batteries or powering DC devices. Safety is enhanced with a fuse-less circuit breaker, reducing maintenance needs. The engine, model EX30, is a gasoline-powered, air-cooled, 4-stroke, overhead camshaft (OHC) engine with a displacement of 287 ml. This Robin generator runs on automotive unleaded gasoline and has a fuel tank capacity of 16 liters. The engine oil capacity is 1 liter. Starting is via recoil starter, providing reliable ignition. The generator can operate continuously for up to 7 hours at 50Hz and 6.1 hours at 60Hz. Its dimensions are approximately 725mm x 534mm x 580mm, with a dry weight of 66 kg, which can go up to 76 kg depending on configuration. Overall, this generator is designed for durability, efficiency, and versatility in various power applications.
| Specification | Value |
| Type | Air-cooled, 4-stroke, OHC, Gasoline engine |
| Voltage Ragulator | AVR Type |
| Frequency-Rated Voltage (Hz-V) | 50-220, 50-240/60-110/220, 60-120/240 |
| Max. Power Output | 4.4 (50HZ)/5.1 (60HZ) |
| Rated Power Output | 3.6 (50HZ)/4.2 (60HZ) |
| Power factor | 1.0 |
| DC Output (V-A) | 12-8.3 |
| Safety Device Type | Fuse-less circuit breaker |
| Model | EX30 |
| Displacement (ml) | 287 |
| Fuel | Automotive unleaded gasoline |
| Fuel Tank Capacity (L) | 16*1 |
| Engine Oil Capacity (L) | 1.0 |
| Starting System | Recoil starter |
| Continuous Operating Hours (h) | 7.0 (50HZ) / 6.1 (60HZ) |
| Dimensions L x W x H(mm) | 725(975)*2 x 534 x 580 |
| Dry Weight(kg) | 66(76)*3 |
Robin 4.4 kW Gasoline Portable Generator RGN5100 Applications
- Backup power for homes and businesses
- Construction sites and outdoor projects
- Camping and outdoor events
- Power supply for remote locations
Robin 4.4 kW Gasoline Portable Generator RGN5100 Benefits
- High power output with reliable performance
- Versatile voltage and frequency options
- Easy to operate with recoil starter
- Durable and portable design
Robin 4.4 kW Gasoline Portable Generator RGN5100 Price List
| No. | Name | Price |
| 1 | Robin 4.4 kW Gasoline Portable Generator RGN5100 Price | Contact us |
