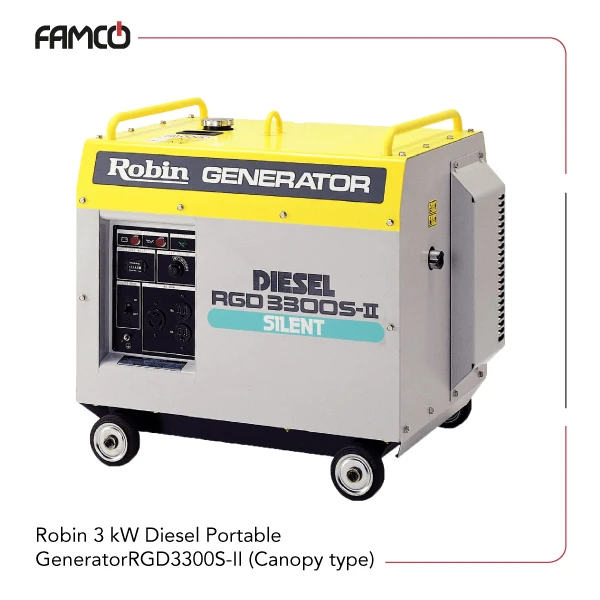

Robin 3 kW Diesel Portable Generator RGD3300S-II (Canopy type) Specifications
Robin 3 kW diesel portable generator RGD3300S-II (Canopy type) is built with a brushless, self-exciting system and a 2-pole, single-phase setup. It supports both 50Hz and 60Hz frequencies and offers rated voltages from 110V to 240V, including dual voltage options. The generator delivers 2.7 kW of rated power and can reach up to 3 kW at peak output. It also provides an optional 12V DC output at 8.3A for added versatility. With a power factor of 1.0, it maintains efficient performance and includes a fuseless circuit breaker for overcurrent protection. The unit runs on a Robin air-cooled, 4-stroke diesel engine with a displacement of 265cm³, using diesel light oil as fuel. Its 11.5-liter tank allows for about 10.6 hours of continuous use at rated load, or 9.1 hours at maximum output. Starting is quick and easy with the electric starter. Measuring 722mm long, 538mm wide, and 667mm high, and weighing 110kg, it’s compact enough for various setups. Noise levels are 64.5dBA at 50Hz and 66.2dBA at 60Hz from 7 meters away, making it relatively quiet compared to similar models.
| Specification | Value |
| Type | Robin air-cooled, 4-stroke, diesel engine |
| Voltage regulator | Condenser type |
| Frequency | 50Hz, 60Hz |
| Rated voltage | 110V, 220V, 240V, 110V/220V, 110V, 120V, 220V, 110V/220V, 120V, 240V |
| Rated output power | 2.7 kW, 3 kW |
| Maximum output power | 3 kW, 3.3 kW |
| DC output (Option) | 12V-8.3A (100W) |
| Power factor | 1.0 |
| Over current protector | Fuseless circuit breaker |
| Model | DY27-2DS |
| Displacement | 265cm3 |
| Fuel | Diesel light oil |
| Fuel tank capacity | 11.5L |
| Continuous operating hours at rated output | 10.6h, 9.1h |
| Starting system | Electric starter |
| Dimensions L x W x H | 722 x 538 x 667mm |
| Dry Weight | 110kg |
| Noise level (rated at 7m) | 64.5dBA (50Hz), 66.2dBA (60Hz) |
Robin 3 kW Diesel Portable Generator RGD3300S-II (Canopy type) Applications
- Backup power for homes and businesses
- Construction sites and outdoor projects
- Emergency power during outages
- Camping and outdoor events
Robin 3 kW Diesel Portable Generator RGD3300S-II (Canopy type) Benefits
- Reliable power with high efficiency
- Easy electric start for quick operation
- Long runtime with large fuel tank
- Quiet operation for comfort
Robin 3 kW Diesel Portable Generator RGD3300S-II (Canopy type) Price List
| No. | Name | Price |
| 1 | Robin 3 kW Diesel Portable Generator RGD3300S-II (Canopy type) Price | Contact us |
There are no reviews yet.
