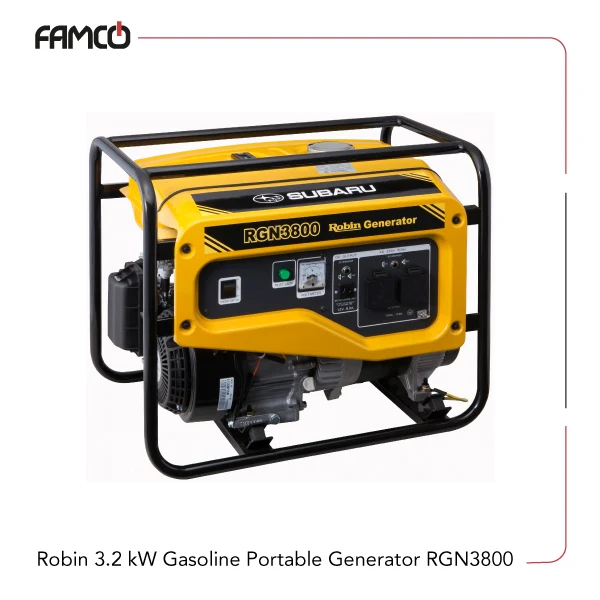

Robin 3.2 kW Gasoline Portable Generator RGN3800 Specifications
Robin 3.2 kW gasoline portable generator RGN3800 features a self-exciting, brush type, 2-pole, single-phase design suitable for various power needs. It is equipped with an AVR type voltage regulator to ensure stable output voltage. The device operates at a frequency range of 50-60Hz with rated voltages between 110V and 240V, making it versatile for different regions. The maximum power output reaches 3.2kW at 50Hz and 3.8kW at 60Hz, while the rated power output is 2.4kW and 2.9kW respectively. This Robin generator maintains a power factor of 1.0, providing efficient energy transfer. The DC output delivers 12V with a current of 8.3A. Safety is enhanced with a fuse-less circuit breaker, reducing maintenance needs. The engine, model EX21, is a 211ml displacement, air-cooled and 4-stroke designed for stable performance. It runs on automotive unleaded gasoline and has a fuel tank capacity of 12 liters, with an oil capacity of 0.6 liters. Starting is straightforward with a recoil starter. The generator can operate continuously for up to 8.5 hours at 50Hz and 6.7 hours at 60Hz. Its compact dimensions are 620mm in length, 414mm in width, and 506mm in height, with a dry weight of 48kg.
| Specification | Value |
| Type | Brush, Self-exciting, 2-poles, Single phase |
| Voltage Regulator | AVR Type |
| Frequency-Rated Voltage (Hz-V) | 50-220, 50-240/60-110/220, 60-120/240 |
| Maximum Power Output | 3.2 kW (50HZ) 3.8 kW (60 Hz) |
| Rated Power Output | 2.4 kW (50HZ) / 2.9 kW (60 Hz) |
| Power factor | 1.0 |
| DC Output (V-A) | 12-8.3 |
| Safety Device Type | Fuse-less circuit breaker |
| Engine Model | EX21 |
| Engine Type | Air-cooled, 4-stroke, OHC, Gasoline engine |
| Displacement (ml) | 211 |
| Fuel | Automotive unleaded gasoline |
| Fuel Tank Capacity (L) | 12*1 |
| Engine Oil Capacity (L) | 0.6 |
| Starting System | Recoil starter |
| Continuous Operating Hours (h) | 8.5 (50HZ)/6.7 (60 Hz) |
| Dimensions L x W x H (mm) | 620 x 414 x 506 |
| Dry Weight (kg) | 48 |
Robin 3.2 kW Gasoline Portable Generator RGN3800 Applications
- Backup power during outages
- Construction sites
- Outdoor events and camping
- Remote power supply for tools and equipment
Robin 3.2 kW Gasoline Portable Generator RGN3800 Benefits
- Stable voltage output with AVR technology
- Long operating hours on a single tank
- Lightweight and portable design
- Easy to maintain with fuse-less circuit breaker
Robin 3.2 kW Gasoline Portable Generator RGN3800 Price List
| No. | Name | Price |
| 1 | Robin 3.2 kW Gasoline Portable Generator RGN3800 Price | Contact us |
