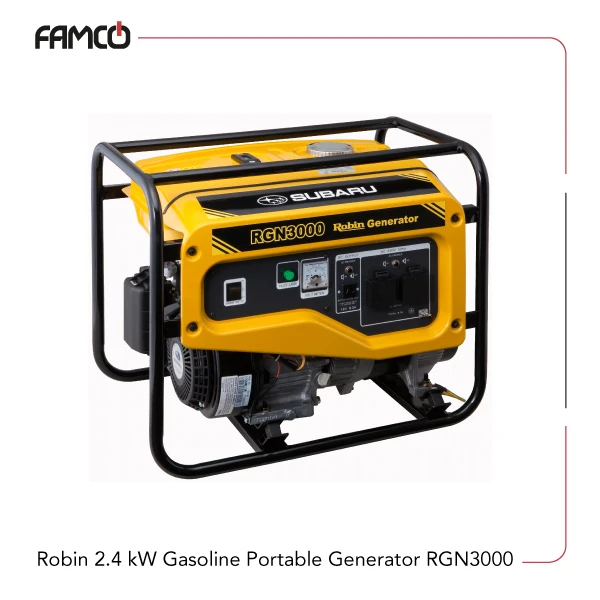

Robin 2.4 kW Gasoline Portable Generator RGN3000 Specifications
Robin 2.4 kW gasoline portable generator RGN3000 features a self-exciting, 2-pole, single-phase brush type with an AVR voltage regulator. It operates at multiple rated voltages, including 50Hz and 60Hz frequencies, with maximum power outputs of 2.4 kW at 50Hz and 3 kW at 60Hz. The rated power remains consistent at 2 kW for 50Hz and 2400W for 60Hz, with a power factor of 1.0, ensuring efficient energy use. This gasoline portable generator provides a DC output of 12V with 8.3A capacity, ideal for charging batteries or powering DC devices. The safety features include a fuse-less circuit breaker, enhancing safety and ease of maintenance. The engine, model EX17, is a 169 ml displacement, air-cooled, 4-stroke, overhead camshaft (OHC) gasoline engine, designed for durability and reliable performance. It runs on automotive unleaded gasoline and has a fuel tank capacity of 12 liters, allowing for extended operation. The engine oil capacity is 0.6 liters, ensuring proper lubrication. Starting is straightforward with a recoil starter, and the generator can operate continuously for up to 9.8 hours at 50Hz and 7.7 hours at 60Hz. Its compact dimensions are 620mm in length, 414mm in width, and 506mm in height, with a dry weight of 45 kg, making it portable for various applications.
| Specification | Value |
| Type | Brush, Self-exciting, 2-poles, Single phase |
| Voltage Regulator | AVR Type |
| Frequency-Rated Voltage (Hz-V) | 50-220, 50-240, 60-110/220, 60-120/240 |
| Max. Power Output | 2.4 kW (50HZ) / 3 kW (60HZ) |
| Rated Power Output | 2 kW (50HZ), 2.4 kW (60HZ) |
| Power factor | 1.0 |
| DC Output (V-A) | 12-8.3 |
| Safety Device Type | Fuse-less circuit breaker |
| Engine Model | EX17 |
| Engine Type | Air-cooled, 4-stroke, OHC, Gasoline engine |
| Displacement (ml) | 169 |
| Fuel | Automotive unleaded gasoline |
| Fuel Tank Capacity (L) | 12*1 |
| Engine Oil Capacity (L) | 0.6 |
| Starting System | Recoil starter |
| Continuous Operating Hours | 9.8 (50HZ), 7.7 (60HZ) |
| Dimensions (L x W x H mm) | 620 x 414 x 506 |
| Dry Weight (kg) | 45 |
Robin 2.4 kW Gasoline Portable Generator RGN3000 Applications
- Emergency backup power for homes
- Outdoor camping and recreational activities
- Construction sites and job sites
- Power supply for events and outdoor gatherings
Robin 2.4 kW Gasoline Portable Generator RGN3000 Benefits
- Reliable power with stable voltage regulation
- Easy to operate with recoil start system
- Long runtime for extended use
- Compact and lightweight for portability
Robin 2.4 kW Gasoline Portable Generator RGN3000 Price List
| No. | Name | Price |
| 1 | Robin 2.4 kW Gasoline Portable Generator RGN3000 Price | Contact us |
