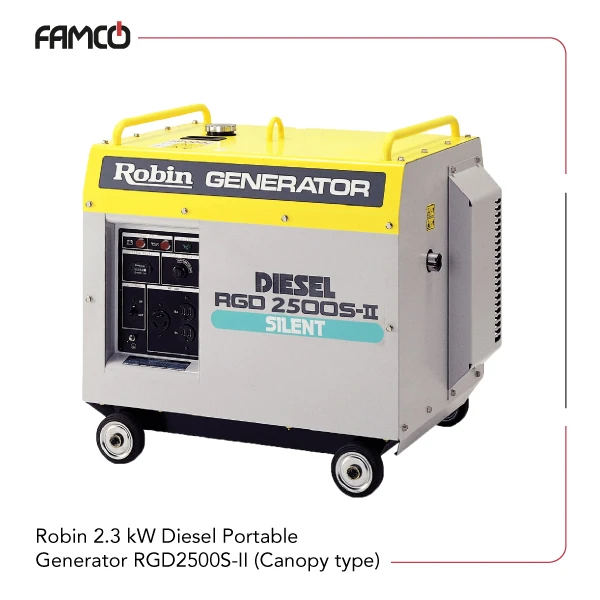

Robin 2.3 kW Diesel Portable Generator RGD2500S-II (Canopy type) Specifications
Robin 2.3 kW diesel portable generator RGD2500S-II (Canopy type) features a brushless, self-exciting design and operates on a single phase with two poles. This Robin generator uses a condenser type voltage regulator to keep power output steady and consistent. Designed for flexibility, it supports both 50Hz and 60Hz frequencies, making it suitable for use in different regions. You can choose from several voltage options including 110V, 220V, 240V, or combinations like 110V/220V and 120V/240V depending on your electrical setup. The generator delivers 2kW at 50Hz and 2.2kW at 60Hz, with a maximum output of 2.3kW and 2.5kW respectively.
It also includes an optional DC output of 12V at 8.3A, which is handy for charging batteries or running DC powered equipment. With a power factor of 1.0, the unit runs efficiently, and its fuseless circuit breaker adds protection against overcurrent. The engine model DY23 2DS is a Robin air cooled, 4 stroke diesel engine with a 230cm³ displacement, running on light diesel oil. Its 11.5 liter fuel tank supports continuous operation for up to 14 hours at 50Hz and about 12 hours at 60Hz. Starting is simple with the electric starter, and despite its solid build, this Robin generator remains compact, measuring 722mm long, 538mm wide, and 667mm high, with a total weight of 106kg. At 7 meters, noise levels are around 64dBA, keeping operation relatively quiet for its class.
| Specification | Value |
| Type | Robin air-cooled, 4-stroke, diesel engine |
| Voltage regulator | Condenser type |
| Frequency | 50Hz/60Hz |
| Rated voltage | 110V, 220V, 240V, 110V/220V, 110V, 120V, 220V, 110V/220V, 120V, 240V |
| Rated output power | 2 kW (50 Hz)/2.2kW (60 Hz) |
| Maximum output power | 2.3 kW (50 Hz)/25kW (60 Hz) |
| DC output(Option) | 12V-8.3A(100W) |
| Power factor | 1.0 |
| Over current protector | Fuseless circuit breaker |
| Engine Model | DY23-2DS |
| Displacement | 230cm3 |
| Fuel | Diesel light oil |
| Fuel tank capacity | 11.5L |
| Continous operating hours at rated output | 14.0h (50 Hz) / 11.9h (60 Hz) |
| Starting system | Electric starter |
| Dimensions L x W x H | 722 x 538 x 667mm |
| Dry Weight | 106kg |
| Noise level (rated at 7m) | 63.7dBA(50 Hz)/64.6dBA(60 Hz) |
Robin 2.3 kW Diesel Portable Generator RGD2500S-II (Canopy type) Applications
- Construction sites for powering tools and equipment
- Outdoor events and festivals
- Emergency backup power for homes
- Remote location power supply
Robin 2.3 kW Diesel Portable Generator RGD2500S-II (Canopy type) Benefits
- Reliable and stable power output
- Long operational hours on a single tank
- Easy to start with electric ignition
- Low noise for quiet operation
Robin 2.3 kW Diesel Portable Generator RGD2500S-II (Canopy type) Price List
| No. | Name | Price |
| 1 | Robin 2.3 kW Diesel Portable Generator RGD2500S-II (Canopy type) Price | Contact us |
