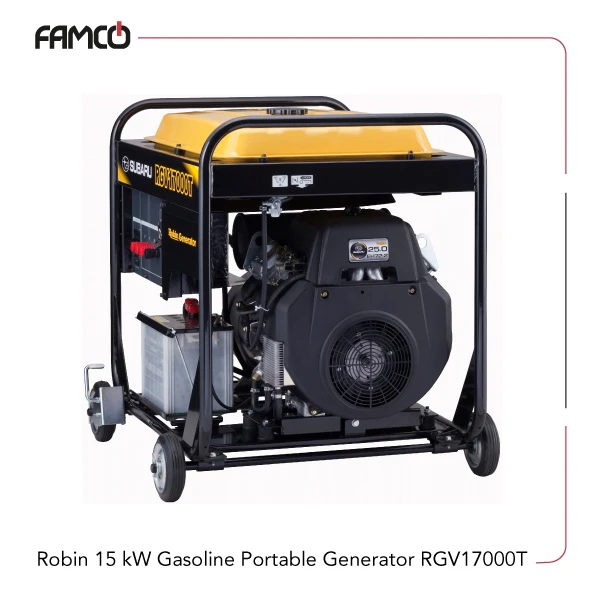

Robin 15 kW Gasoline Portable Generator RGV17000T Specifications
Robin 15 kW gasoline portable generator RGV17000T features a self-exciting, three-phase brush type with a 2-pole design, suitable for various power needs. It operates at both 50Hz and 60Hz frequencies, making it versatile for different regions. The rated voltage options include 220V/380V, 230V/400V, and 120V/208V, providing flexibility for multiple applications. This Robin generator can handle a rated current of 18.9A at 50Hz and 37.4A at 60Hz, with a rated output of 12.5 kW at 50 Hz. The maximum power output reaches 15 kW at 50Hz and 17 kW at 60Hz, ensuring ample power supply for heavy-duty tasks. The device maintains a power factor of 0.8, optimizing efficiency. Safety is prioritized with a fuseless circuit breaker, reducing risk during operation. The engine is a twin-cylinder, air-cooled, 4-stroke overhead valve type with a displacement of 720cm3, fueled by automotive unleaded gasoline. It has a fuel tank capacity of 38 liters, with a full capacity of 44 liters, and an engine oil capacity of 1.55 liters. The generator can operate continuously for approximately 5.6 hours at 50Hz and 4.8 hours at 60Hz on a full fuel tank. It features an electric starter for easy ignition and produces noise levels of 76.8dB at 50Hz and 79.4dB at 60Hz. Its dimensions are 856mm in length, 681mm in width, and 771mm in height, with a dry weight of 172kg, which can go up to 183kg with additional components or fuel.
| Specification | Value |
| Type | Twin cylinder, Air-cooled, 4-stroke, Overhead valve engine |
| Voltage regulator | AVR type |
| Frequency | 50Hz/60Hz |
| Rated voltage | 220V/380V, 230V/400V, 120V/208V, 220V/380V |
| Rated current | 18.9A (50Hz), 37.4A (60Hz) |
| Rated output power | 12.5 kW (50Hz), 13.5 kW (60Hz) |
| Maximum output power | 15 kW (50Hz), 17 kW (60Hz) |
| Power factor | 0.8 |
| Safety device type | Fuseless circuit breaker |
| Model | EH72-2 |
| Displacement | 720cm3 |
| Fuel | Automotive Unleaded Gasoline |
| Fuel tank capacity | 38L (Full: 44L) |
| Engine oil capacity | 1.55L |
| Rated continuous operation | 5.6h (50Hz), 4.8h (60Hz) |
| Starting system | Electric starter |
| Noise level | 76.8dB (50Hz), 79.4dB (60Hz) |
| Dimensions L x W x H | 856mm x 681mm x 771mm |
| Dry Weight | 172kg, 183kg |
Robin 15 kW Gasoline Portable Generator RGV17000T Applications
- Construction site power supply
- Backup power for industrial facilities
- Large equipment operation
- Event and outdoor activities
Robin 15 kW Gasoline Portable Generator RGV17000T Benefits
- High power output with maximum capacity up to 13.6kW
- Versatile voltage options for different needs
- Reliable twin-cylinder engine for continuous use
- Easy electric start for quick operation
Robin 15 kW Gasoline Portable Generator RGV17000T Price List
| No. | Name | Price |
| 1 | Robin 15 kW Gasoline Portable Generator RGV17000T Price | Contact us |
