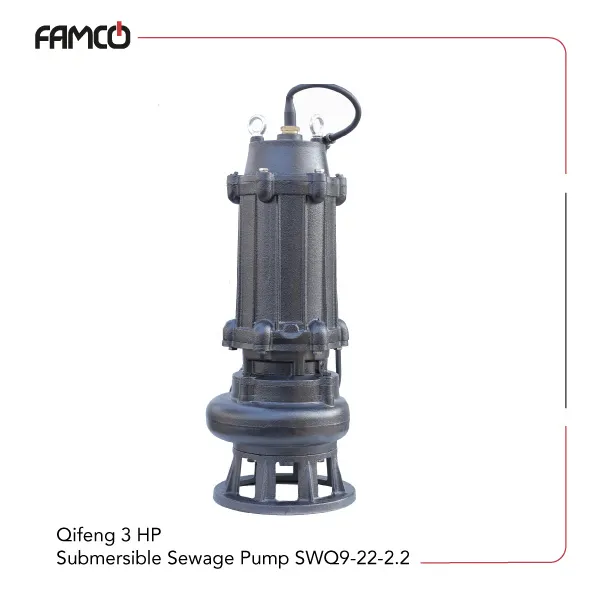

Qifeng 3 HP Submersible Sewage Pump SWQ9-22-2.2 Specifications
The SWQ9-22-2.2 is a three-phase Qifeng sewage pump rated at 3 HP (2.2 kW), operating at 50 Hz. It delivers a maximum flow rate of 9 cubic meters per hour and achieves a maximum delivery head of 22 meters. The pump has a 2-inch outlet and a 30 mm solid passage designed to handle wastewater with suspended solids efficiently. The pump and motor housings, as well as the impeller, are made from cast iron, ensuring durability and strength in sewage applications. A stainless steel 304 shaft supports corrosion resistance, while the mechanical seal uses graphite and ceramic materials for reliable sealing. This model within the range of Qifeng submersible pumps handles liquid temperatures up to 40°C and is available with or without a float switch. It is designed for transferring various types of industrial and domestic wastewater from facilities like hotels, hospitals, and mines.
| Specification | Value |
|---|---|
| Brand | Qifeng |
| Model | SWQ9-22-2.2 |
| Power | 2.2 kW (3 HP) |
| Phase | Three-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 9 m³/h |
| Max Delivery Head | 22 m |
| Outlet Size | 2 inch |
| Solid Passage | 30 mm |
| Pump Housing | Cast iron |
| Motor Housing | Cast iron |
| Impeller | Cast iron |
| Shaft | Stainless steel 304 |
| Mechanical Seal | Graphite / Ceramic |
| Max Liquid Temperature | 40 °C |
| Float Switch | With or without |
Qifeng 3 HP Submersible Sewage Pump SWQ9-22-2.2 Applications
- Wastewater transfer in hotels and commercial buildings
- Sewage handling systems in hospitals and institutional facilities
- Industrial effluent movement where higher flow is required
- Drainage and wastewater removal in mining operations
Qifeng 3 HP Submersible Sewage Pump SWQ9-22-2.2 Benefits
- Three-phase motor supports steady operation under continuous load
- High flow capacity paired with a wide solid passage
- Cast iron hydraulic parts tolerate abrasive wastewater conditions
- Optional float switch allows automatic level-based control
Qifeng 3 HP Submersible Sewage Pump SWQ9-22-2.2 Price List
| No. | Name | Price |
| 1 | Qifeng 3 HP Submersible Sewage Pump SWQ9-22-2.2 Price | Contact us |
