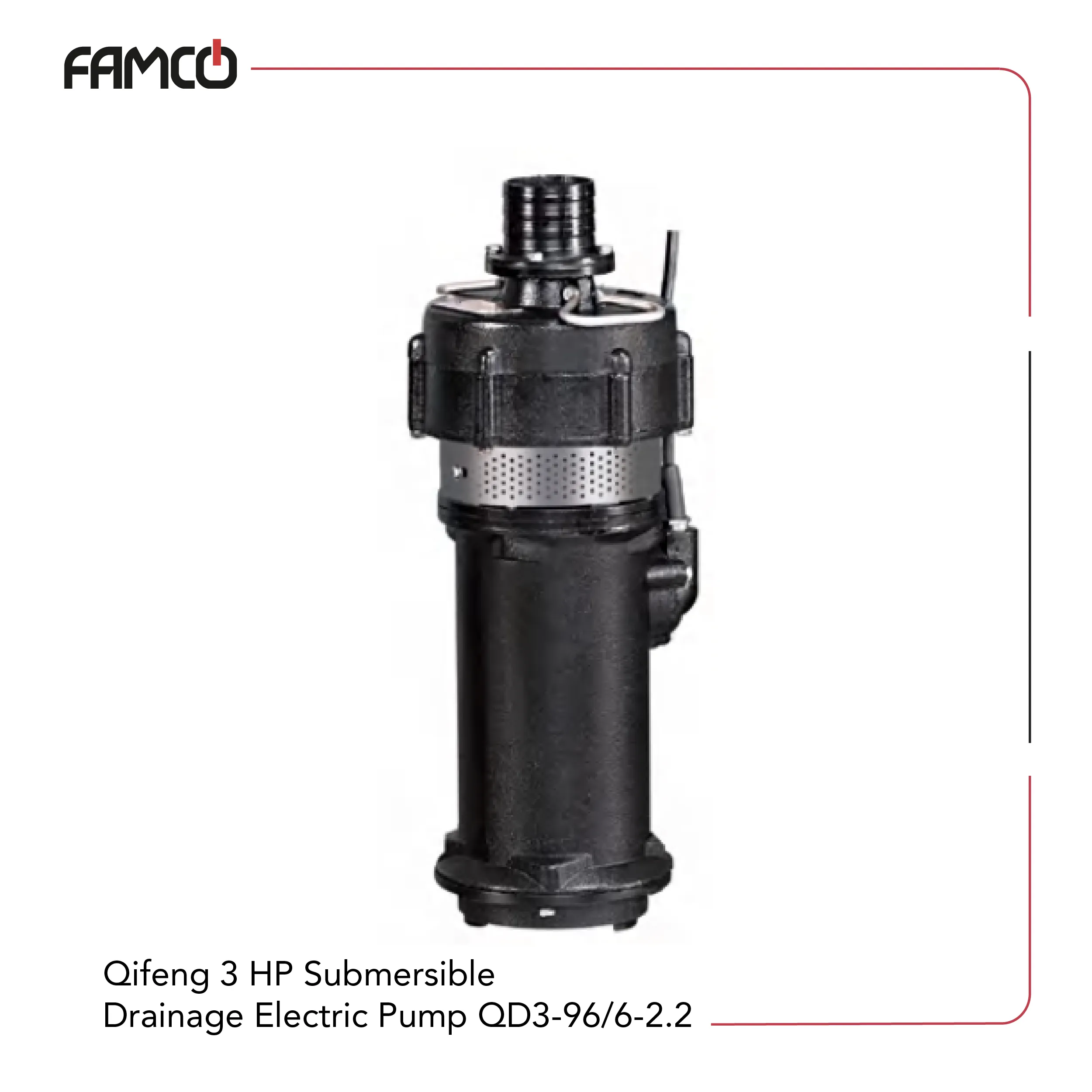

Qifeng 3 HP Submersible Drainage Electric Pump QD3-96/6-2.2 Specifications
The Qifeng QD3-96/6-2.2 is a 3 HP (2.2 kW) submersible drainage pump designed for single-phase operation at 50 Hz. It delivers a maximum flow rate of 3 cubic meters per hour with a high delivery head of 96 meters, turning this QD3 series Qifeng drainage pump to a well-suited choice for deep water lifting tasks. The Qifeng pump features a 1-inch outlet and allows a solid passage size of 3 millimeters. Both the pump and motor housings are constructed from cast iron, so its strength and durability never fail in submerged conditions, while the impeller inside this Qifeng submersible pump is made from cast aluminum for balanced performance. The shaft is made of stainless steel for corrosion resistance and longevity. A mechanical seal made of carbon, ceramic, and NBR materials provides secure sealing to prevent leaks. This model is capable of handling liquids up to 40 degrees Celsius and does not include a float switch. Its design particularly fits water supply tasks in gardening, irrigation, and industrial use.
| Specification | Value |
|---|---|
| Brand | Qifeng |
| Model | QD3-96/6-2.2 |
| Power | 2.2 kW (3 HP) |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Max Flow Rate | 3 m³/h |
| Max Delivery Head | 96 m |
| Outlet Size | 1 inch |
| Solid Passage | 3 mm |
| Pump Housing | Cast iron |
| Motor Housing | Cast iron |
| Impeller | Cast aluminum |
| Shaft | Stainless steel |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Max Liquid Temperature | 40 °C |
| Float switch | Not included |
Qifeng 3 HP Submersible Drainage Electric Pump QD3-96/6-2.2 Applications
- Water extraction from deep wells with long vertical discharge lines
- Irrigation systems supplied from low-yield underground sources
- Garden water supply where pressure loss over height is a concern
- Industrial water transfer requiring stable head over extended lift distances
Qifeng 3 HP Submersible Drainage Electric Pump QD3-96/6-2.2 Benefits
- Reaches very high delivery heights using standard single-phase electricity
- Cast iron body improves alignment and heat dissipation during submerged use
- Aluminum impeller supports sustained head without excessive load
- Compact outlet design suits narrow boreholes and tight installations
Qifeng 3 HP Submersible Drainage Electric Pump QD3-96/6-2.2 Price List
| No. | Name | Price |
| 1 | Qifeng 3 HP Submersible Drainage Electric Pump QD3-96/6-2.2 Price | Contact us |
There are no reviews yet.
