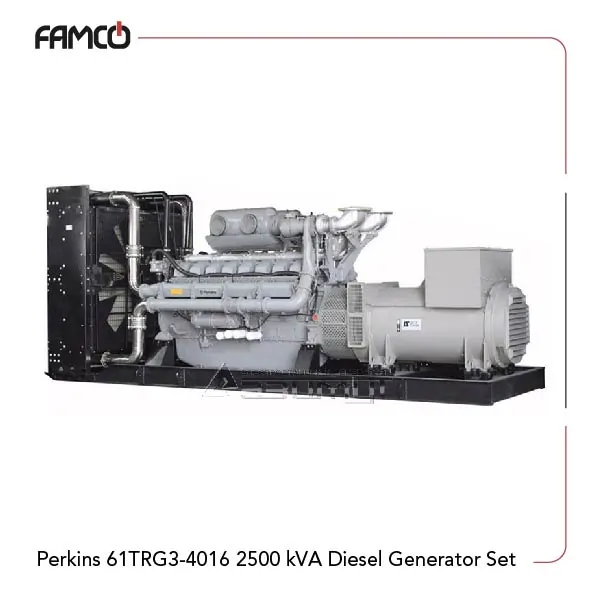

Perkins 61TRG3-4016 2500 kVA Diesel Generator Set

Perkins 61TRG3-4016 2500 kVA Diesel Generator Set Specifications

This powerful generator offers a standby power of 2500 kVA and a prime power of 2273 kVA for a range of applications. Perkins diesel generator sets are versatile and sturdy, in general. But this one, specifically, features a solid 16-cylinder engine with a V-type configuration. This engine runs on a displacement of 61.12 liters. This generator operates at a standard speed of 1500 rpm and has a voltage range of 230-400 V, with a frequency of 50 Hz. The fuel consumption varies depending on the work load, with 473 L/h at 100% bar, 346 L/h at 75% bar, and 235 L/h at 50% bar. The oil tank holds 214 liters, and the cooling system capacity is 260 liters. The generator’s dimensions are 3700 mm x 6000 mm x 2400 mm without the canopy and 4000 mm x 12000 mm x 2400 mm with the canopy. It has a dry weight of 12578 kg.

Specification	Value
Standby Power (kVA)	2500
Prime Power (kVA)	2273
Cylinder Numbers	16, v-type
Oil Tank Volume (L)	214
Piston (mm)	190*160
Cooling System Capacity (L)	260
Displacement (L)	61.12
Speed (rpm)	1500
Voltage (V)	230-400
Frequency (Hz)	50
Power Factor	0.8
Fuel consumption (L/h) at 100% bar	473
Fuel consumption (L/h) at 75% bar	346
Fuel consumption (L/h) at 50% bar	235
Dry Weight without Canopy (kg)	12578
Size (mm) without Canopy	3700*6000*2400
Size (mm) with Canopy	4000*12000*2400

Perkins 61TRG3-4016 2500 kVA Diesel Generator Set Applications

• Industrial power supply
• Construction sites
• Emergency backup power
• Events and festivals



Perkins 61TRG3-4016 2500 kVA Diesel Generator Set Benefits

• High power output for demanding applications
• Efficient fuel consumption reduces operational costs
• Durable design ensures long-lasting performance
• Versatile use in various industries



Perkins 61TRG3-4016 2500 kVA Diesel Generator Set Price List

No.	Name	Price
1	Perkins 61TRG3-4016 2500 kVA Diesel Generator Set Price	Contact us
