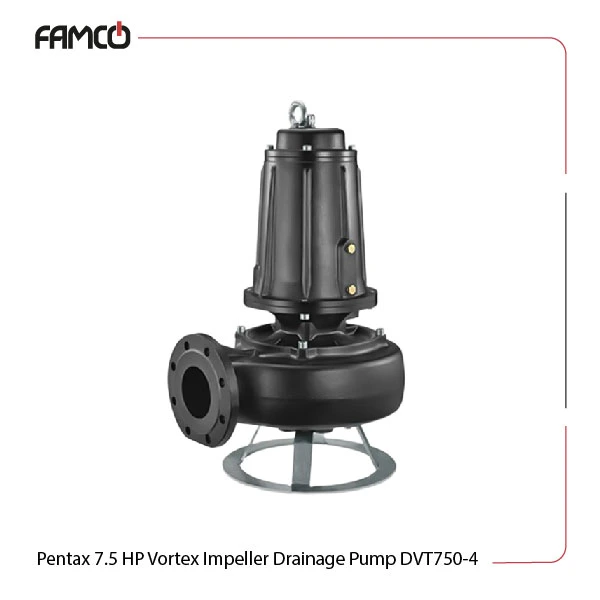

Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Specifications
This powerful pump features a 4-pole design. Its solid construction works hand in hand with its advanced sealing technology in both industrial and agricultural use. The pump’s ability to handle a wide range of voltages and its impressive flow rate ensure efficiency and effectiveness in water management tasks. Whether you need to drain, irrigate, or circulate water, this submersible pump is a dependable choice. This powerful Pentax pump has an insulation class of F and a high protection degree of IPX8, which gives it strength in operations. The sturdy cast iron pump body and impeller make the product last longer. This drainage pump is equipped with a silicon carbide mechanical seal on the pump side and a ceramic graphite seal on the motor side to enhance reliability. A maximum immersion depth of 20 meters and a liquid temperature range of 0 to 40 degrees Celsius enable this pump to complete tough tasks. Operating at a frequency of 50Hz, this pump delivers a power output of 7.5 HP (5.5 kW) and achieves a head range of 2.6 to 14.7 meters, with a maximum flow rate of 204 m3/h. Weighing 106 kg, it is safe to claim this pump is up to heavy-duty use.
| Specification | Value |
| No. of poles | 4 |
| Voltage in three-phase (V) | 230, 400, 230-400, 400-690 |
| Insulation class | F |
| Protection degree | IPX8 |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Power (HP) | 7.5 |
| Power (kW) | 5.5 |
| Head (m) | 2.6-14.7 |
| Max. flow rate (m3/h) | 204 |
| Weight (kg) | 106 |
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic graphite
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Technical Data
| M3/h | 0 | 24 | 48 | 72 | 96 | 120 | 144 | 168 | 180 | 192 | 204 |
| l/min | 0 | 400 | 800 | 1200 | 1600 | 2000 | 2400 | 2800 | 3000 | 3200 | 3400 |
| Head (m) | 14.7 | 14.2 | 13.3 | 12.4 | 11.2 | 9.6 | 7.9 | 5.9 | 4.8 | 3.7 | 2.6 |

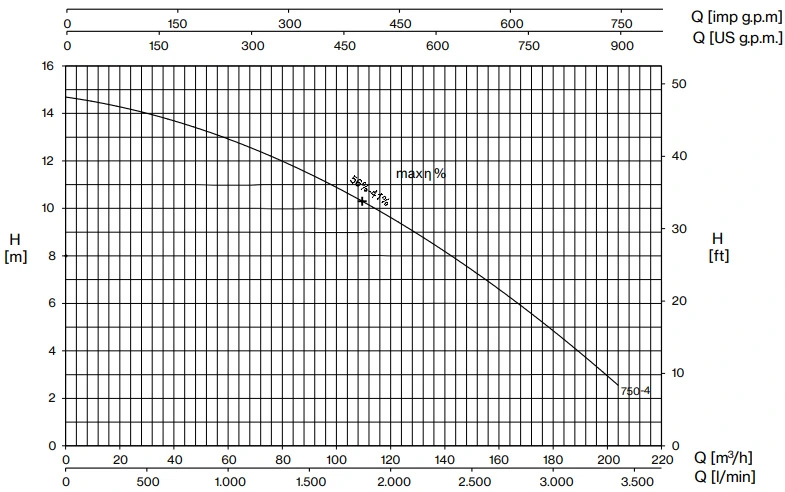

Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Performance Curve
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Applications
- Irrigation systems for agriculture
- Industrial water supply and drainage
- Sewage and wastewater management
- Cooling systems in power plants
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Benefits
- Durable cast iron construction for long-lasting performance
- High protection degree (IPX8) for reliable operation in wet conditions
- Efficient flow rate of up to 204 m3/h for quick water movement
- Versatile voltage options for compatibility with various power systems
Pentax DVT 750-4 Vortex Impeller Drainage Pump Price List
| No. | Name | Price |
| 1 | Pentax 7.5 HP Vortex Impeller Drainage Pump DVT750-4 Price | Contact us |
