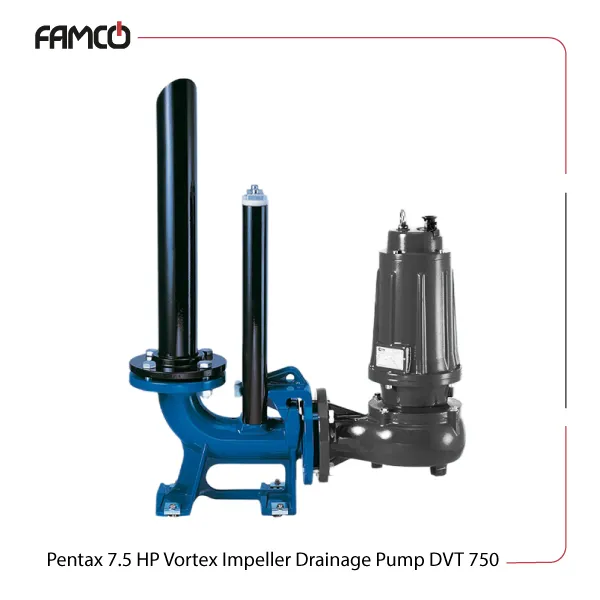

Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Specifications
This powerful pump operates with a 5.5 kW (7.5 HP) motor, suitable for various demanding applications. It supports three-phase voltages of 230, 400, 230/400, and 400/690 volts, and runs at a frequency of 50 Hz. The pump can lift water up to 24.2 meters and handle a maximum flow rate of 1800 liters per minute. Its sturdy cast iron body on the one side, and the cast-iron impeller, on the other side, enhances efficiency. The mechanical seals are made of silicon carbide on the pump side and ceramic-graphite on the motor side provide increased sealing. This series of Pentax pumps can famously be immersed up to 5 meters deep. This Pentax-manufactured pump can pass solids up to 45 mm in size. It is designed to work with liquids between 0 and 40 degrees Celsius. The motor placed at the heart of this Pentax drainage pump has 2 poles, with an insulation class of F, and a protection degree of IPX8, ensuring safety and resistance to water ingress. Overall, this pump combines power, durability, and efficiency, suitable for industrial, agricultural, or construction use.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
| Frequency (Hz) | 50 |
| Max. head (m) | 24.2 |
| Max. flow rate (l/min) | 1800 |
| Pump body | cast iron |
| Impeller | Cast iron |
| Mechanical seal on pump side | silicon carbide |
| Mechanical seal on motor side | ceramic-graphite |
| Max. immersion depth (m) | 5 |
| Max. free solid passage (mm) | 45 |
| Max. liquid temperature (° C) | 0-40 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IPX8 |

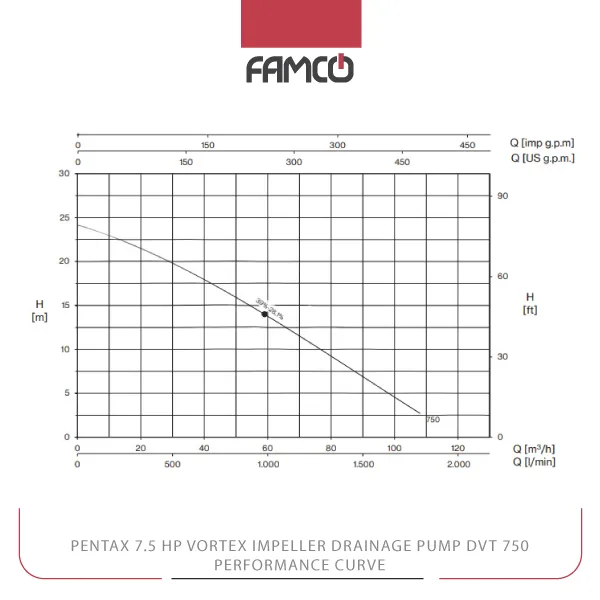

Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Performance Data
| m³/h | 0 | 12 | 24 | 36 | 42 | 48 | 51 | 54 | 60 | 72 | 78 | 84 | 90 | 96 | 108 |
| l/min | 0 | 200 | 400 | 600 | 700 | 800 | 850 | 900 | 1000 | 1200 | 1300 | 1400 | 1500 | 1600 | 1800 |
| Head (m) | 24.2 | 22.7 | 20.7 | 18.7 | 17.6 | 16.4 | 15.8 | 15.2 | 13.9 | 11.1 | 9.7 | 8.2 | 6.8 | 5.4 | 2.8 |

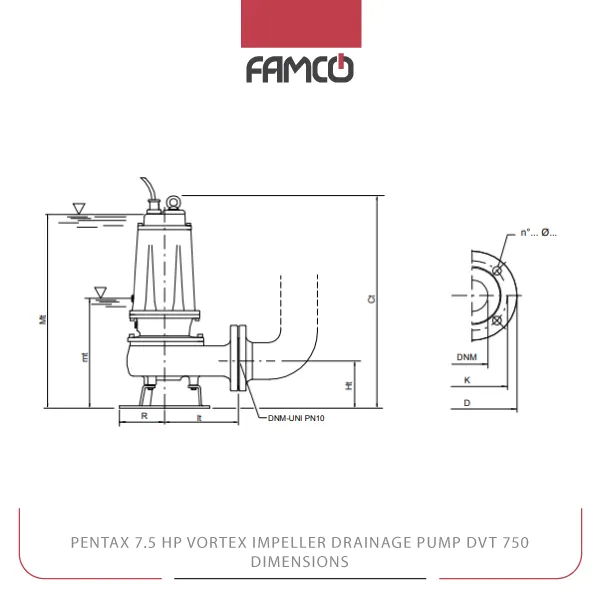

Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Dimensions
| Dimensions (mm) | Weight (kg) | ||||||
| Ct | Ht | R | It | mt | Mt | DNM | 90 |
| 725 | 178 | 180 | 232 | 358 | 670 | 80 | |
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Applications
- Drainage and sump pumping in construction sites
- Industrial water transfer and circulation
- Agricultural irrigation systems
- Flood control and emergency water removal
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Benefits
- High power with 7.5 HP for demanding tasks
- Durable cast iron body and cast iron impeller for longevity
- Supports high flow rates up to 1800 l/min
- Convenient operation
Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Price List
| No. | Name | Price |
| 1 | Pentax 7.5 HP Vortex Impeller Drainage Pump DVT 750 Price | Contact us |
