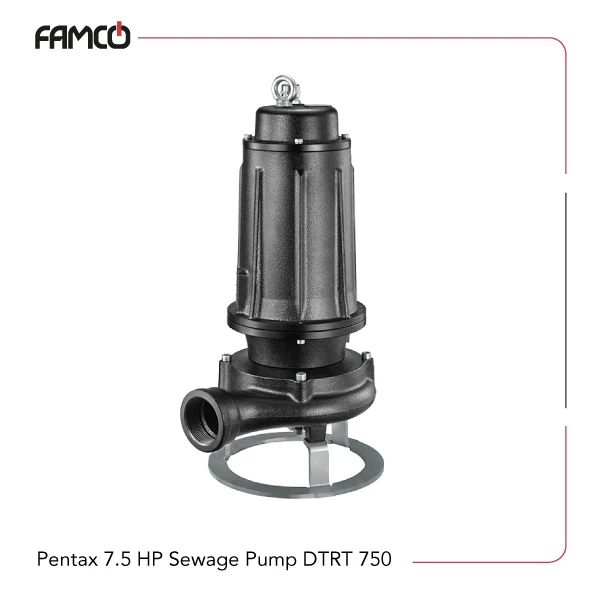

Pentax 7.5 HP Sewage Drainage Pump DTRT 750 Specifications
Pentax 7.5 HP sewage drainage pump DTRT 750 features a durable cast iron body and impeller, making it suitable for heavy-duty applications. It is equipped with a double seal with an oil barrier, utilizing silicon carbide on the pump side and a sealing ring on the engine side for enhanced durability and leak prevention. The shaft end is made of high-quality steel AISI 304, ensuring strength and corrosion resistance. It operates efficiently within an ambient temperature range of 0 to 40 degrees Celsius. This Pentax sewage pump includes a 20-meter stainer for effective debris management. With an insulation class of F and an IPX8 protection degree, it is designed for reliable performance in challenging environments. The motor provides 7.5 horsepower (5.5 kW), capable of delivering a flow rate between 50 and 360 liters per minute. The maximum head is 46.2 meters, and it is compatible with a 60 mm pipe diameter. The overall weight of the pump is 91.5 kilograms, making it sturdy yet manageable for installation and maintenance.
| Specification | Value |
| Pump body | cast iron |
| Impeller | cast iron |
| Seal | double seal with oil barrier: pump side silicon carbide, engine side sealing ring |
| Pump shaft end | steel AISI 304 |
| Ambient temperature | 0 – 40 °C |
| STAINER | 20 m |
| Insulation class | F |
| Protection degree | IPX8 |
| Power | 7.5 HP |
| Power | 5.5 kW |
| Flow rate range (l/min) | 50 – 360 |
| Head (m) | 11-46.2 |
| Pipe-DNM | 60 |
| Weight (kg) | 91.5 |

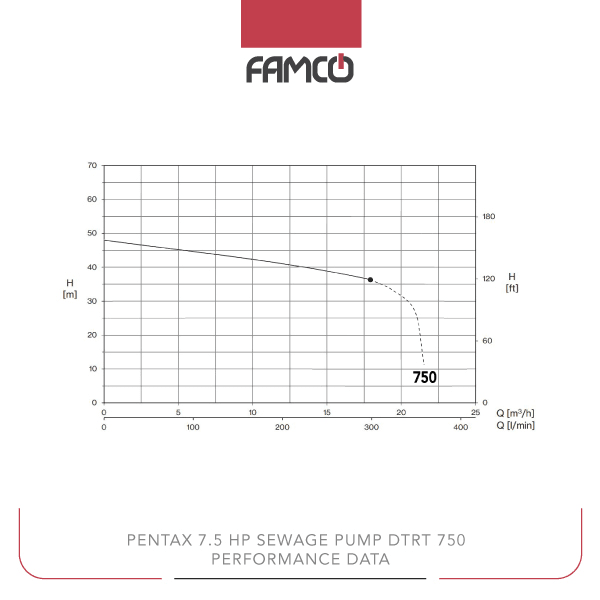

Pentax 7.5 HP Sewage Drainage Pump DTRT 750
| Flow rate (L/min) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Flow rate (m3/h) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| Head (m) | 47.8 | 46.2 | 44.5 | 42.7 | 40.8 | 38.9 | 36.1 |
Pentax 7.5 HP Sewage Drainage Pump DTRT 750 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Drainage and flood control
- Construction site water management
Pentax 7.5 HP Sewage Drainage Pump DTRT 750 Benefits
- Durable cast iron construction for longevity
- Double seal with oil barrier prevents leaks
- High efficiency with adjustable flow rate
- Suitable for outdoor and submerged use
Pentax 7.5 HP Sewage Drainage Pump DTRT 750 Price List
| No. | Name | Price |
| 1 | Pentax 7.5 HP Sewage Drainage Pump DTRT 750 Price | Contact us |
There are no reviews yet.
