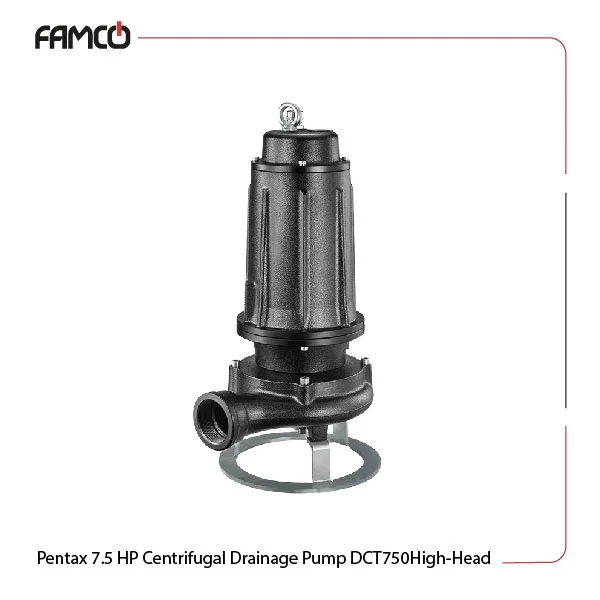

Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Specifications
This product is designed to operate efficiently within a temperature range of 0 to 40 degrees Celsius. A combination of design and high flow rate (up to 900 l/minute) has made this drainage pump perfect for industrial and agricultural use. The pump’s ability to operate at significant 20 meter depths and its strong IPX8 protection rating give it excellent resistance against water ingress This line of Pentax pumps famously free pass solids sizes of up to 10 mm. With 2 poles and an insulation class of F, this submersible pump ensures reliable performance. The product supports three-phase voltage options of 230, 400, 230/400, and 400/690 volts; adaptable to different electrical systems.
| Specification | Value |
| Max temperature (°C) | 0-40 |
| Max solids size (mm) | 10 |
| Maximum immersion (m) | 20 |
| No. of Poles | 2 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (m3/h) | 39 |
| Head (m) | 13.1-47.6 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Technical Data
| m3/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| Head (m) | 47.6 | 42.9 | 40.4 | 37.7 | 34.7 | 31.2 | 27.4 | 22.3 | 13.1 |

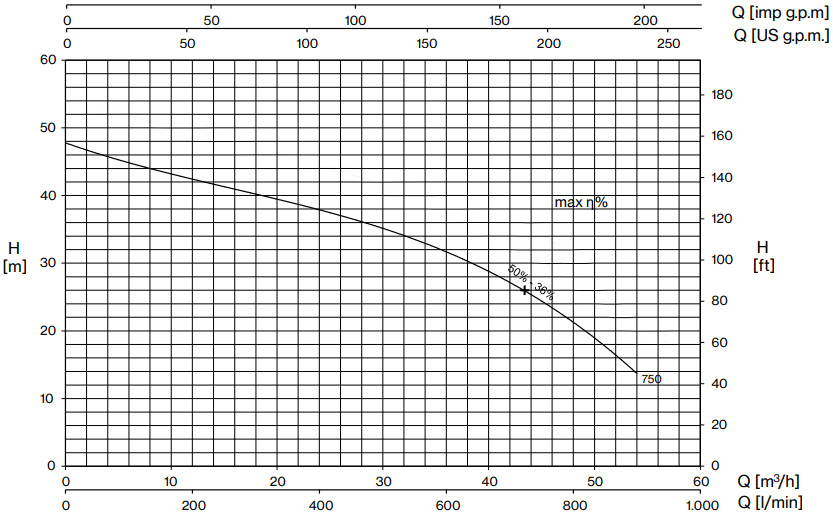

Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Performance Curve
Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Applications
- Industrial water transfer
- Agricultural irrigation systems
- Wastewater management
- Construction site dewatering
Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Benefits
- High efficiency with a maximum flow rate of 39 m3/h
- Durable construction with IP X8 protection
- Versatile voltage options for easy integration
- Capable of handling solids up to 10 mm
Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Price List
| No. | Name | Price |
| 1 | Pentax 7.5 HP Centrifugal Drainage Pump DCT750High-Head Price | Contact us |
