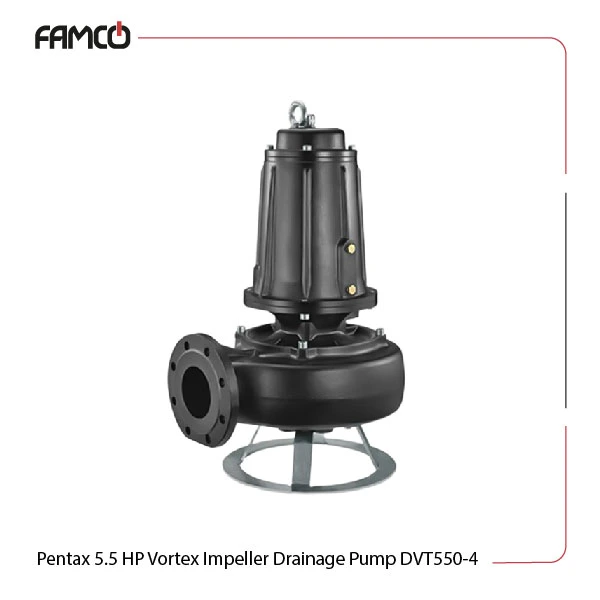

Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Specifications
This powerful pump features a sturdy cast iron body and impeller that give it a marketing advantage among other drainage pumps. Its impressive specifications, such as the ability to handle significant flow rates (3000 l/min) make it a versatile choice in professional pumping. This Pentax pump operates at a voltage range of 230 to 690V in three-phase systems and has an insulation class of F. This collection of submersible pumps is designed for a maximum immersion depth of 20 meters and can handle liquid temperatures between 0 and 40 degrees Celsius. Additionally, this product features advanced mechanical seals made of silicon carbide on the pump side and ceramic graphite on the motor side, which require minimal maintenance. The protection degree of IPX8 guarantees that the pump is well-protected against water ingress even when submerged.
| Specification | Value |
| No. of poles | 4 |
| Voltage in three-phase (V) | 230, 400, 230-400, 400-690 |
| Insulation class | F |
| Protection degree | IPX8 |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Head (m) | 2.6-12.6 |
| Max. flow rate (m3/h) | 180 |
| Weight (kg) | 101.5 |
Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic / graphite
Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Technical Data
| M3/h | 0 | 24 | 48 | 72 | 96 | 120 | 144 | 168 | 180 |
| l/min | 0 | 400 | 800 | 1200 | 1600 | 2000 | 2400 | 2800 | 3000 |
| Head (m) | 12.6 | 12.2 | 11.4 | 10.3 | 9.1 | 7.6 | 5.7 | 3.7 | 2.6 |

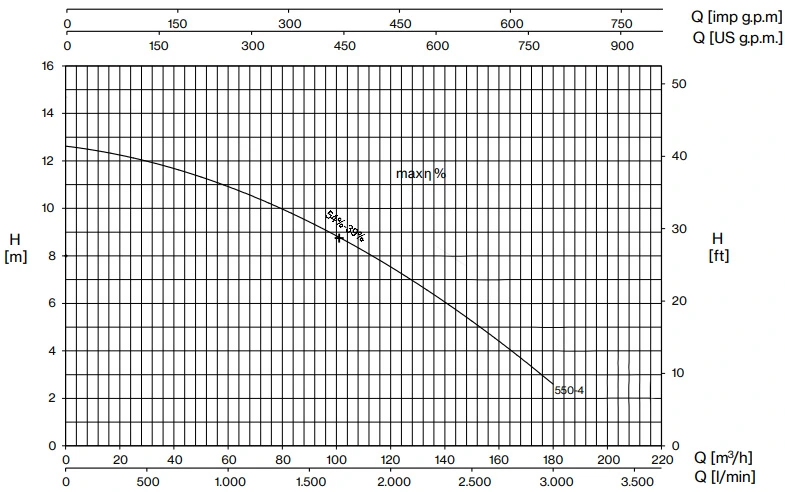

Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Performance Curve
Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Applications
- Irrigation systems for agriculture
- Industrial water supply and drainage
- Construction site dewatering
- Wastewater management
Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head capabilities for efficient operation
- Advanced mechanical seals reduce maintenance needs
- IPX8 protection ensures reliability in submerged conditions
Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Price List
| No. | Name | Price |
| 1 | Pentax 5.5 HP Vortex Impeller Drainage Pump DVT550-4 Price | Contact us |
