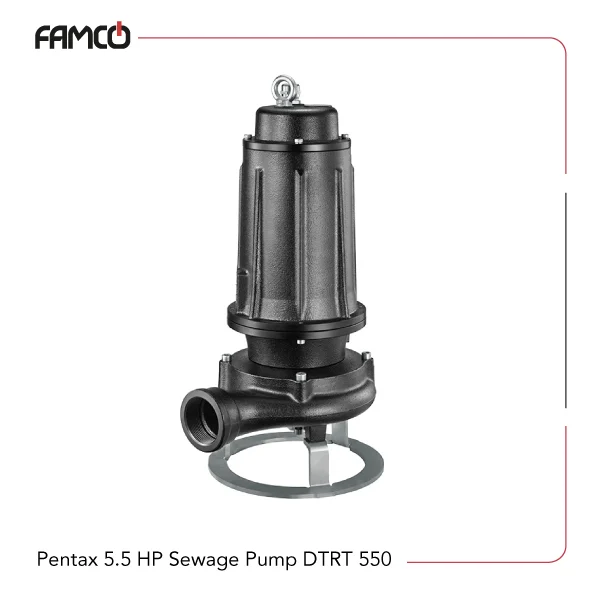

Pentax 5.5 HP Sewage Drainage Pump DTRT 550 Specifications
Pentax 5.5 HP sewage drainage pump DTRT 550 features a cast iron body and impeller, ensuring durability and strength for demanding applications. It is equipped with a double seal with an oil barrier, utilizing silicon carbide on the pump side and a sealing ring on the engine side, providing reliable sealing and preventing leaks. This Pentax sewage drainage pump shaft end is made of high-quality AISI 304 steel, offering corrosion resistance and longevity. It operates efficiently within an ambient temperature range of 0 to 40 degrees Celsius. The device includes a 20-meter stainer for effective debris management. It has an insulation class F, which ensures safety and performance under various conditions. The protection degree is IPX8, making it suitable for submersible applications. With a power output of 5.5 HP (4 kW), it can handle flow rates from 50 to 300 liters per minute and generate a head height between 27.6 and 36.9 meters. The pipe diameter is 50 mm, and the total weight of the pump is 65.5 kg, making it sturdy yet manageable for installation and maintenance.
| Specification | Value |
| Pump body | cast iron |
| Impeller | cast iron |
| Seal | double seal with oil barrier: pump side silicon carbide, engine side sealing ring |
| Pump shaft end | steel AISI 304 |
| Ambient temperature | 0 – 40 °C |
| Stainer | 20 m |
| Insulation class | F |
| Protection degree | IPX8 |
| Power | 4 kW |
| Flow rate range (l/min) | 50-300 |
| Head (m) | 27.6-36.9 |
| Pipe-DNM | 50 |
| Weight (kg) | 65.5 |

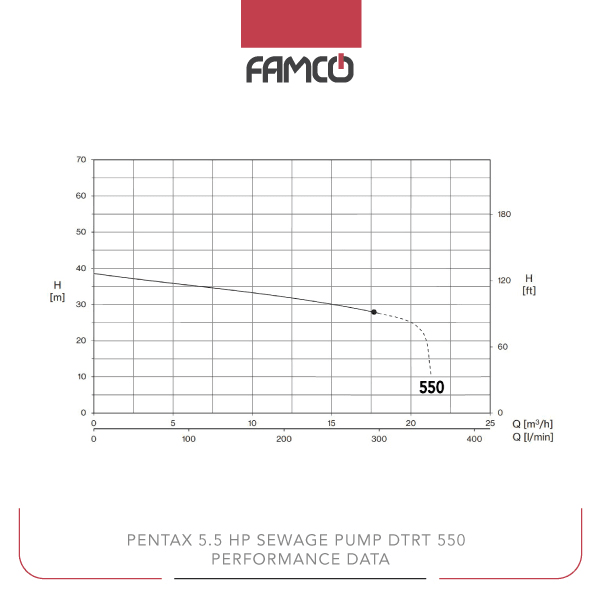

Pentax 5.5 HP Sewage Drainage Pump DTRT 550
| Flow rate (L/min) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Flow rate (m3/h) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| Head (m) | 38.6 | 36.9 | 35.3 | 33.9 | 32.1 | 30.1 | 27.6 |
Pentax 5.5 HP Sewage Drainage Pump DTRT 550 Applications
- Water transfer in industrial settings
- Drainage and sewage management
- Irrigation in agriculture
- Flood control and emergency water removal
Pentax 5.5 HP Sewage Drainage Pump DTRT 550 Benefits
- Durable cast iron construction for long-term use
- Reliable double seal with oil barrier prevents leaks
- High efficiency with a powerful 5.5 HP motor
- Suitable for submersible applications with IPX8 protection
Pentax 5.5 HP Sewage Drainage Pump DTRT 550 Price List
| No. | Name | Price |
| 1 | Pentax 5.5 HP Sewage Drainage Pump DTRT 550 Price | Contact us |
