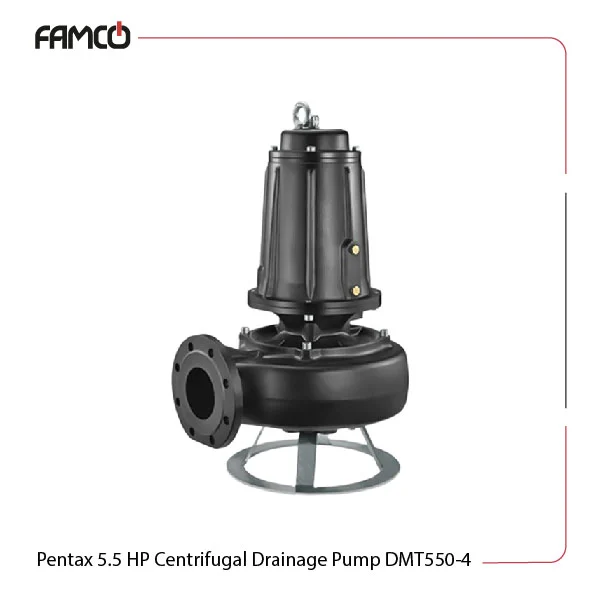

Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Specifications
This pump integrates into diverse applications with a maximum liquid temperature of 0-40℃ and can be immersed up to 20 meters deep. This series of Pentax pumps features a finely built structure with a cast iron pump body and impeller. The insulation class is rated F, and it has a high protection degree of IPX8, suitable for wet environments. The power ratings are 4 kW or 5.5 HP, providing strong performance. This series of submersible pumps can handle a head range from 1.3 to 14.7 meters and boasts a maximum flow rate of 180 m3/h. They operate at a frequency of 50 Hz and support three-phase voltages of 230, 400, 230/400, and 400/690. The mechanical seals on both the pump and motor sides are made from high-quality materials, as the final touch. Overall, these drainage pumps are the final addition to most pumping systems.
| Specification | Value |
| Max. liquid temperature (℃) | 0-40 |
| Max. immersion depth (m) | 20 |
| No. of poles | 4 |
| Insulation class | F |
| Protection degree | IPX8 |
| Power rating (kW) | 4 |
| Power rating (HP) | 5.5 |
| Head (m) | 1.3-14.7 |
| Max. flow rate (m3/h) | 180 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 230,400,230/400, 400/690 |
Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Materials
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/graphite
- Impeller: cast iron
- Pump body: cast iron
Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 | 156 | 168 | 180 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Head (m) | 14.7 | 14.0 | 13.2 | 12.5 | 11.7 | 10.9 | 10.1 | 9.2 | 8.3 | 7.5 | 6.5 | 5.6 | 4.6 | 3.6 | 2.4 | 1.3 |

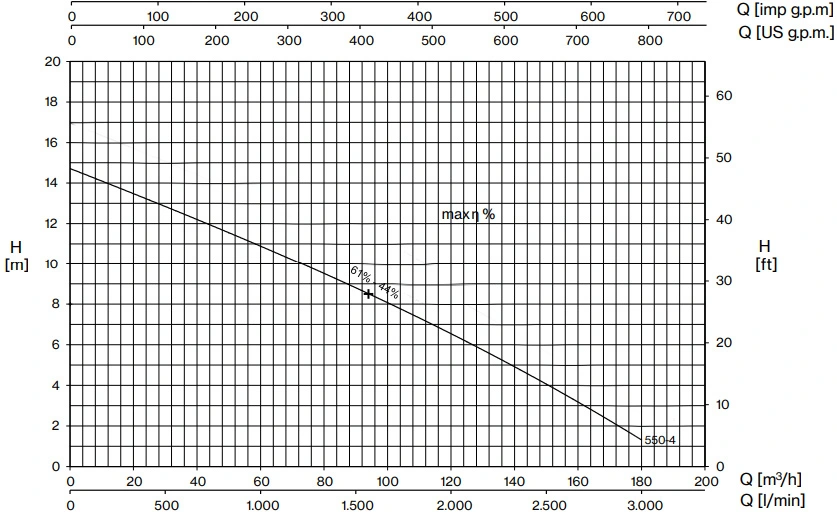

Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Performance Curve
Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Applications
- Irrigation systems in agriculture
- Industrial water supply and drainage
- Construction site dewatering
- Aquaculture and fish farming
Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Benefits
- High durability due to cast iron construction
- Efficient performance with a maximum flow rate of 180 m3/h
- Suitable for deep water applications with a 20m immersion depth
- Advanced mechanical seals for enhanced reliability
Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Price List
| No. | Name | Price |
| 1 | Pentax 5.5 HP Centrifugal Drainage Pump DMT550-4 Price | Contact us |
