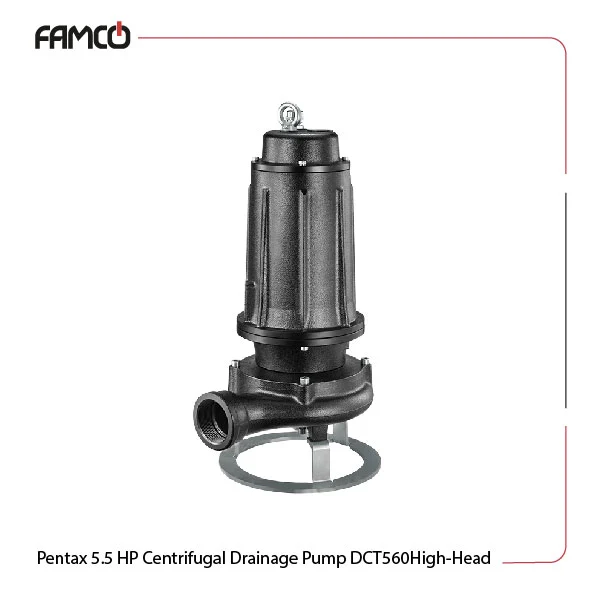

Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Specifications
This product is designed to operate efficiently within a temperature range of 0 to 40 degrees Celsius. You can count on these Pentax pumps day after day because they can free pass solid sizes up to 10 mm. The maximum immersion depth is 20 meters. This submersible pump has a two-pole configuration with reliable performance. The insulation class is rated F, providing excellent thermal protection. It has a high protection degree of IP X8, making it waterproof and suitable for harsh environments. Operating at a frequency of 50 Hz, this Pentax pump delivers a power output of 4 kW or 5.5 HP. The maximum flow rate is 39 m³/h, and it can achieve a head range of 6.5 to 38.7 meters. The product supports three-phase voltages of 230, 400, 230/400, and 400/690 volts for maximized compatibility of these drainage pumps with various electrical systems.
| Specification | Value |
| Max temperature (°C) | 0-40 |
| Max solids size (mm) | 10 |
| Maximum immersion (m) | 20 |
| No. of Poles | 2 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. flow rate (m3/h) | 39 |
| Head (m) | 6.5-38.7 |
| Three-phase voltage (V) | 230, 400, 230-400, 400-690 |
Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Technical Data
| m3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 51 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 850 |
| Head (m) | 38.7 | 36.1 | 33.9 | 31.2 | 28.3 | 24.7 | 20.9 | 16.3 | 10.4 | 6.5 |

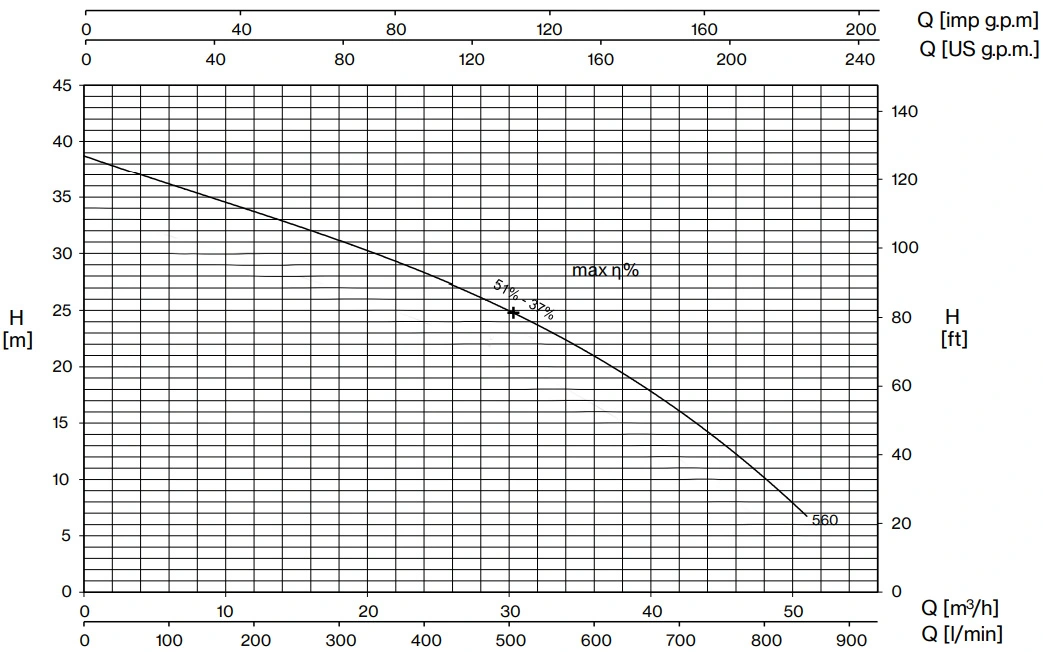

Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Performance Curve
Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Wastewater management in municipal applications
Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Benefits
- High efficiency with a maximum flow rate of 39 m³/h
- Durable design with IP X8 protection for harsh conditions
- Versatile voltage options for easy integration
- Reliable performance with a maximum immersion depth of 20 meters
Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Price List
| No. | Name | Price |
| 1 | Pentax 5.5 HP Centrifugal Drainage Pump DCT560High-Head Price | Contact us |
