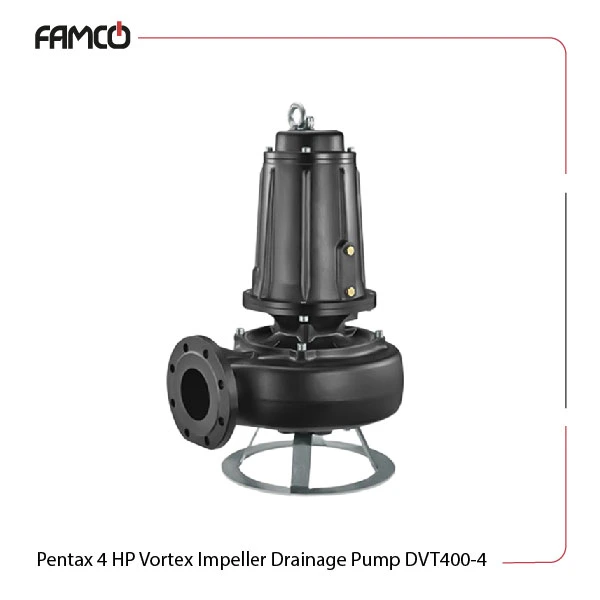

Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Specifications
This powerful pump drainage pump features a powerful design with a cast iron body and impeller. This high-performance three-phase pump operates in three-phase mode in covering a voltage range of 230 to 690V. Its powerful construction and advanced sealing technology make it suitable for handling tough conditions that submersible pumps are placed in. The pump’s ability to operate at different voltages and its impressive flow rate reaching 120 m3/h at its best make it a versatile choice for professionals. Whether for drainage, irrigation, or other fluid transfer tasks, this Pentax pump stands out for its performance and durability.
| Specification | Value |
| No. of poles | 4 |
| Voltage in three-phase (V) | 230, 400, 230-400, 400-690 |
| Insulation class | F |
| Protection degree | IPX8 |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Power (HP) | 4 |
| Power (kW) | 3 |
| Head (m) | 2.3-11.8 |
| Max. flow rate (m3/h) | 120 |
| Weight (kg) | 74.5 |
Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/ graphite
Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Head (m) | 11.8 | 11.3 | 10.7 | 10.0 | 9.2 | 8.3 | 7.3 | 6.2 | 5.0 | 3.7 | 2.3 |

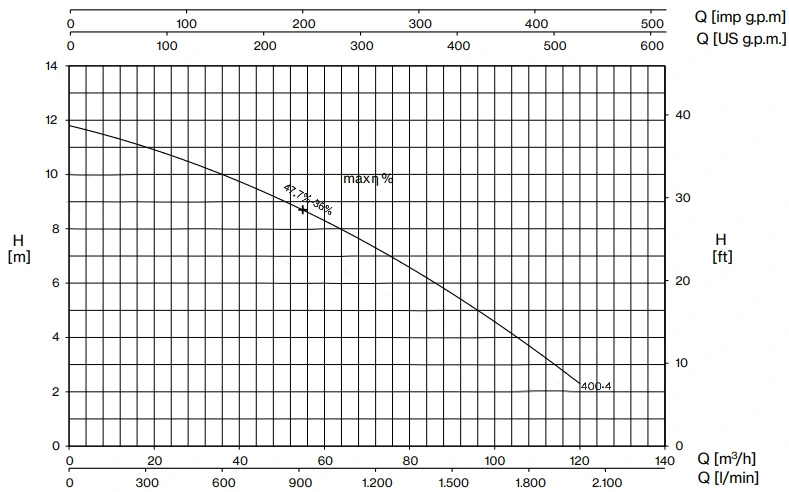

Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Performance Curve
Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Water supply for industrial processes
- Sewage and wastewater management
Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head capabilities for efficient operation
- Versatile voltage options for various applications
- Excellent protection against water ingress with IPX8 rating
Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Price List
| No. | Name | Price |
| 1 | Pentax 4 HP Vortex Impeller Drainage Pump DVT400-4 Price | Contact us |
