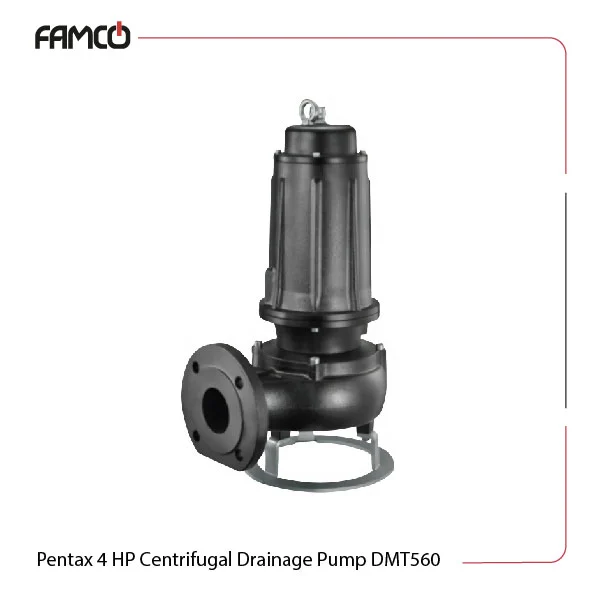

Pentax 4 HP Centrifugal Drainage Pump DMT560 Specifications
The pump’s ability to handle significant depths and temperatures (0-40℃) makes it versatile for different environments. The DMT560 is designed for deep immersion, reaching depths of up to 20 meters. This line of Pentax pumps operates efficiently in both single- or three-phase setups. These drainage pumps run on a frequency of 50Hz and feature an insulation class of F. With an IPX8 protection degree, as is expected from submersible pumps, it is well-suited for wet environments. The pump can handle various voltages, including three-phase options of 380, 400, 230/400, and 400/690 volts, as well as a single-phase voltage of 230 volts. This Pentax pump has a power output of 3 kW (4 HP) and achieves a maximum head of 8.3 to 26 meters, with a flow rate of up to 72 m3/h. The impeller and pump body are made from durable cast iron, while the mechanical seals on both the pump and motor sides are crafted from high-quality materials, including silicon carbide and ceramic-graphite for best performance.
| Specification | Value |
| Immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
| Three-phase voltage (V) | 380, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. head (m) | 8.3-26 |
| Max. flow rate (m3/h) | 72 |
Pentax 4 HP Centrifugal Drainage Pump DMT560 Materials
- Impeller: cast iron
- Pump body: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 4 HP Centrifugal Drainage Pump DMT560 Technical Data
| M3/h | 0 | 6 | 18 | 30 | 42 | 54 | 60 | 66 | 72 |
| l/min | 0 | 100 | 300 | 500 | 700 | 900 | 1000 | 1100 | 1200 |
| Head (m) | 26 | 24.6 | 21.1 | 18.2 | 15.9 | 13.3 | 11.8 | 10.3 | 8.3 |

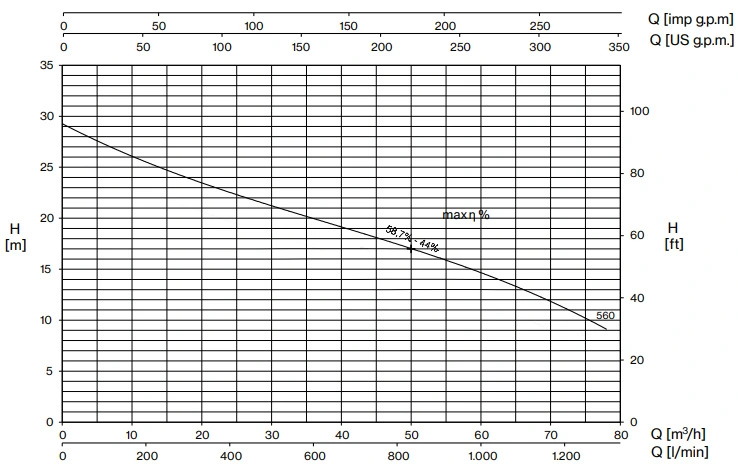

Pentax 4 HP Centrifugal Drainage Pump DMT560 Performance Curve
Pentax 4 HP Centrifugal Drainage Pump DMT560 Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Wastewater management
Pentax 4 HP Centrifugal Drainage Pump DMT560 Benefits
- High efficiency with a maximum flow rate of 72 m3/h
- Durable construction with cast iron components
- Reliable operation in wet environments due to IPX8 rating
- Versatile voltage options for various applications
Pentax 4 HP Centrifugal Drainage Pump DMT560 Price List
| No. | Name | Price |
| 1 | Pentax 4 HP Centrifugal Drainage Pump DMT560 Price | Contact us |
