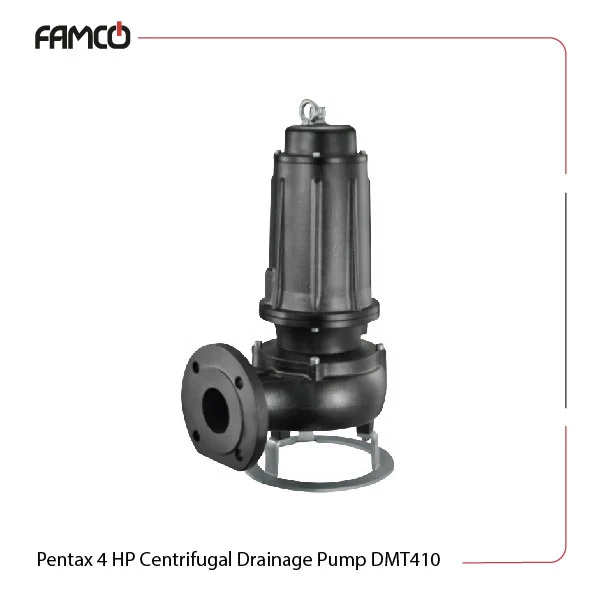

Pentax 4 HP Centrifugal Drainage Pump DMT410 Specifications
This product is designed for deep immersion, with a maximum depth of 20 meters. This series of Pentax pumps operates efficiently within a liquid temperature range of 0 to 40 degrees Celsius. The frequency is 50Hz, so it is compatible with standard electrical systems. The insulation class is rated F, which provides good thermal protection. With an IPX8 protection degree, these submersible pumps are highly resistant to water ingress. It supports both three-phase and single-phase voltages. The power output is 3 kW, equivalent to 4 HP, allowing for top-tier performance. It can achieve a maximum head of 8.3 to 26 meters and a maximum flow rate of 72 cubic meters per hour for demanding tasks. Using reinforced and sturdy materials has created a lasting pumping solution, with its body made of cast iron. The mechanical seals in this drainage pump provide the utmost sealing performance, to top it off.
| Specification | Value |
| immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
| Three-phase voltage (V) | 380, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. head (m) | 8.3-26 |
| Max. flow rate (m3/h) | 72 |
Pentax 4 HP Centrifugal Drainage Pump DMT410 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic, graphite
Pentax 4 HP Centrifugal Drainage Pump DMT410 Technical Data
| M3/min | 0 | 6 | 18 | 30 | 42 | 54 | 60 | 66 | 72 |
| l/min | 0 | 100 | 300 | 500 | 700 | 900 | 1000 | 1100 | 1200 |
| Head (m) | 26 | 24.6 | 21.1 | 18.2 | 15.9 | 13.3 | 11.8 | 10.3 | 8.3 |
Pentax 4 HP Centrifugal Drainage Pump DMT410 Performance Curve
Pentax 4 HP Centrifugal Drainage Pump DMT410 Applications
- Irrigation systems
- Industrial water supply
- Wastewater management
- Aquaculture
Pentax 4 HP Centrifugal Drainage Pump DMT410 Benefits
- High immersion depth for versatile use
- Wide temperature range for different liquids
- Robust design ensures long-lasting performance
- Efficient flow rate for quick liquid transfer
Pentax 4 HP Centrifugal Drainage Pump DMT410 Price List
| No. | Name | Price |
| 1 | Pentax 4 HP Centrifugal Drainage Pump DMT410 Price | Contact us |
