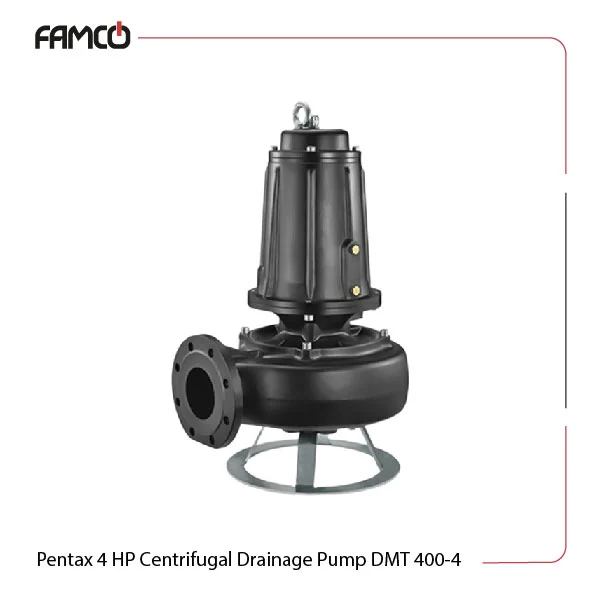

Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Specifications
This product is designed for efficient liquid handling with a maximum temperature range of 0 to 40 degrees Celsius. This collection of Pentax pumps can be immersed up to 20 meters deep. This submersible pump features four poles and is classified under insulation class F. With an IPX8 protection rating, this drainage pump is well-suited for use in wet environments. The power ratings are 3 kW and 4 HP, providing the best performance. This drainage pump has a maximum flow rate of 96 cubic meters per hour for more efficient large-scale operations. Operating at a frequency of 50 Hz, this pump supports three-phase voltages, with a varying range of 230, 400, and 230/400, as well as 400/690.
The mechanical seals on both the pump and motor sides are made of high-quality materials, silicon carbide and ceramic/graphite, respectively. The impeller and pump body are constructed from durable cast iron.
| Specification | Value |
| Max. liquid temperature (℃) | 0-40 |
| Max. immersion depth (m) | 20 |
| No. of poles | 4 |
| Insulation class | F |
| Protection degree | IPX8 |
| Power rating (kW) | 3 |
| Power rating (HP) | 4 |
| Head (m) | 4-14 |
| Max. flow rate (m3/h) | 96 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 230,400,230/400, 400/690 |
Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Materials
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/graphite
- Impeller: cast iron
- Pump body: cast iron
Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 90 | 96 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1500 | 1600 |
| Head (m) | 14.0 | 12.7 | 11.6 | 10.4 | 9.2 | 8.0 | 6.7 | 5.4 | 4.7 | 4.0 |

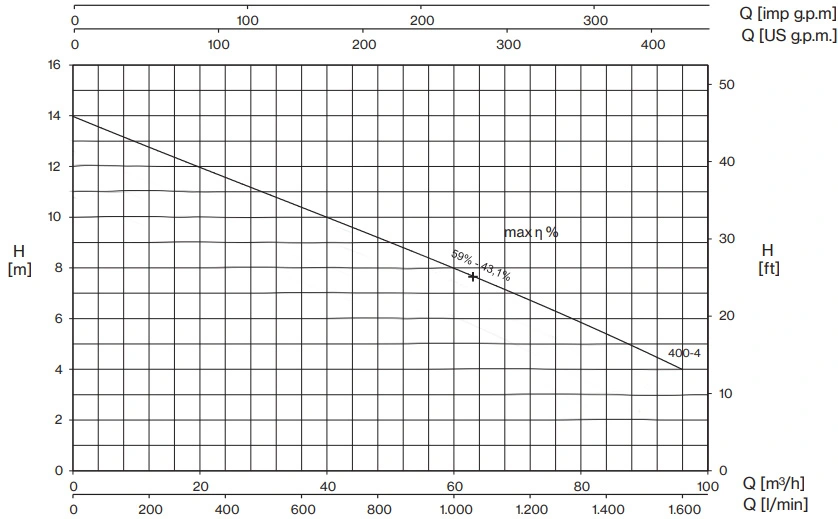

Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Performance Curve
Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Water supply for construction sites
- Wastewater management
Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Benefits
- High efficiency with a maximum flow rate of 96 m3/h
- Durable construction with cast iron components
- Versatile voltage options for different setups
- Reliable performance in wet environments with IPX8 protection
Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Price List
| No. | Name | Price |
| 1 | Pentax 4 HP Centrifugal Drainage Pump DMT400-4 Price | Contact us |
