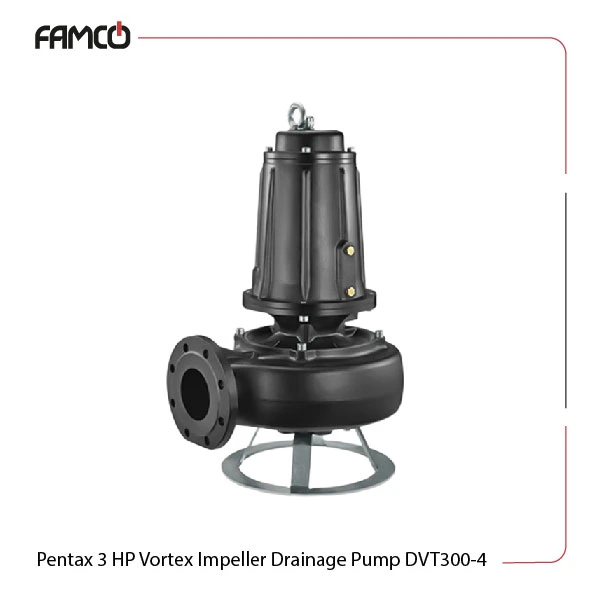

Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Specifications
This three-phase submersible pump is engineered for high performance with a pumping power of 3 HP or 2.2 kW. As a Pentax pump, it features a powerful cast iron body and impeller that enable this product tolerate 40℃ liquids. The mechanical seals on both the pump and motor sides are made from high-quality materials, silicon carbide and ceramic graphite, respectively. These features are required considering the working conditions of draining pumps of this sort. Weighing 71 kg, this pump is built to withstand demanding conditions while providing efficient operation. A maximum of 108 m3/h flow rate and a maximum head height of 10.1 meters put this submersible pump on the top-list of users.
| Specification | Value |
| No. of poles | 4 |
| Voltage in three-phase (V) | 230, 400, 230-400, 400-690 |
| Insulation class | F |
| Protection degree | IPX8 |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Head (m) | 2.4-10.1 |
| Max. flow rate (m3/h) | 108 |
| Weight (kg) | 71 |
Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/ graphite
Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Head (m) | 10.1 | 9.6 | 9.0 | 8.4 | 7.7 | 6.8 | 5.8 | 4.8 | 3.6 | 2.4 |

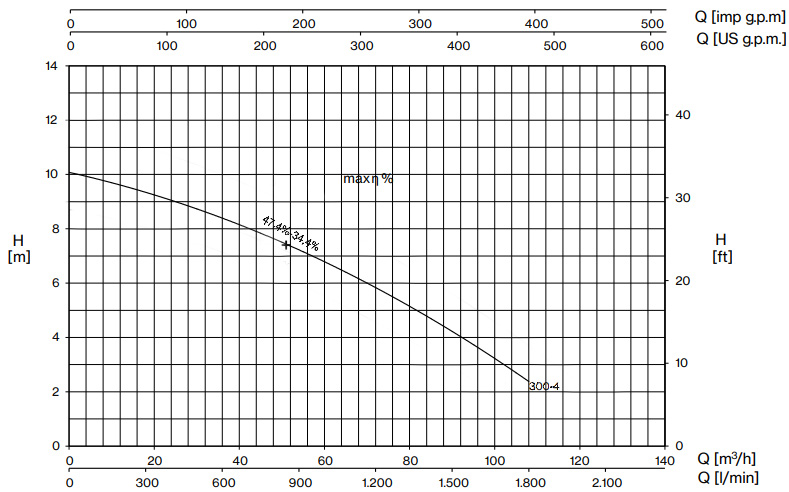

Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Performance Curve
Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Applications
- Irrigation systems for agriculture
- Industrial water drainage
- Construction site dewatering
- Aquaculture and fish farming
Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head capabilities for efficient operation
- IPX8 rating ensures safe underwater use
- Advanced mechanical seals reduce maintenance needs
Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Price List
| No. | Name | Price |
| 1 | Pentax 3 HP Vortex Impeller Drainage Pump DVT300-4 Price | Contact us |
