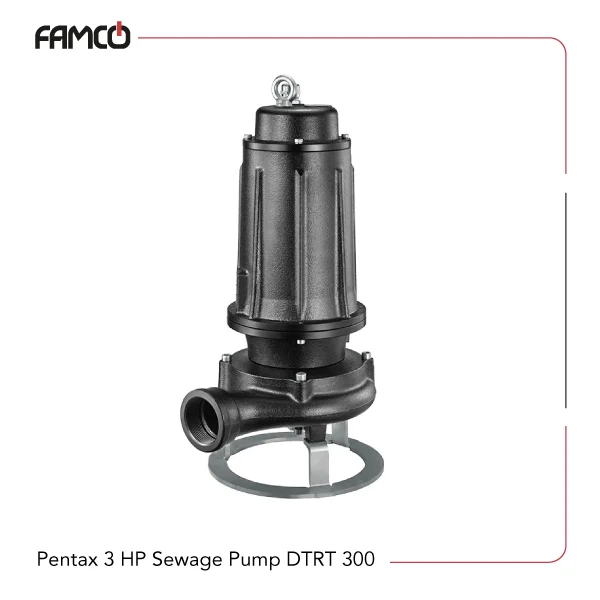

Pentax 3 HP Sewage Drainage Pump DTRT 300 Specifications
Pentax 3 HP sewage drianage pump DTRT 300 features a durable cast iron body and impeller, making it suitable for heavy-duty applications. It is equipped with a double seal system that includes an oil barrier, with the pump side seal made of silicon carbide and the engine side sealing ring. The shaft end is crafted from high-quality steel AISI 304, ensuring strength and corrosion resistance. It operates efficiently within an ambient temperature range of 0 to 40 degrees Celsius. This Pentax sewage pump includes a 20-meter strainer for effective debris filtration. It has an insulation class of F and a protection degree of IPX8, making it suitable for submerged use. The motor provides 3 horsepower (2.2 kW), capable of delivering a flow rate between 50 and 300 liters per minute. The maximum head height ranges from 18.2 to 25.2 meters, depending on the flow rate. The pipe connection size is 2 inches DNM, suitable for various piping systems.
| Specification | Value |
| Pump body | cast iron |
| Impeller | cast iron |
| Seal | double seal with oil barrier: pump side silicon carbide, engine side sealing ring |
| Pump shaft end | steel AISI 304 |
| Ambient temperature | 0 – 40 °C |
| STAINER | 20 m |
| Insulation class | F |
| Protection degree | IPX8 |
| Power | 3 HP |
| Power | 2.2 kW |
| Flow rate range (l/min) | 50-300 |
| Head (m) | 18.2-25.2 |
| Pipe-DNM | 2″ |

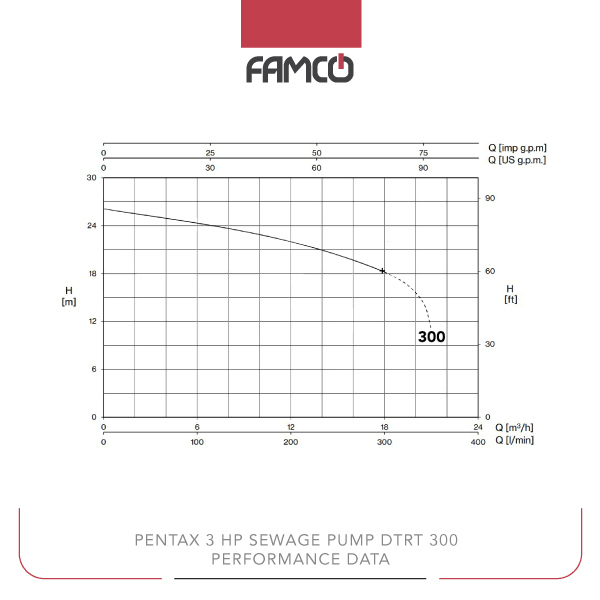

Pentax 3 HP Sewage Drianage Pump DTRT 300 Performance Data
| Flow rate (L/min) | 0 | 3 | 6 | 9 | 12 | 13.2 | 15 | 18 |
| Flow rate (m3/h) | 0 | 50 | 100 | 150 | 200 | 220 | 250 | 300 |
| Head (m) | 26.1 | 25.2 | 24.3 | 23.3 | 22 | 21.4 | 24.4 | 18.2 |
Pentax 3 HP Sewage Drianage Pump DTRT 300 Applications
- Water transfer in industrial settings
- Drainage and sump pumping
- Irrigation systems
- Flood control and dewatering
Pentax 3 HP Sewage Drianage Pump DTRT 300 Benefits
- Durable cast iron construction for long-lasting use
- Reliable double seal with oil barrier prevents leaks
- High efficiency with a powerful 3 HP motor
- Suitable for submerged operation with IPX8 protection
Pentax 3 HP Sewage Drianage Pump DTRT 300 Price List
| No. | Name | Price |
| 1 | Pentax 3 HP Sewage Drianage Pump DTRT 300 Price | Contact us |
