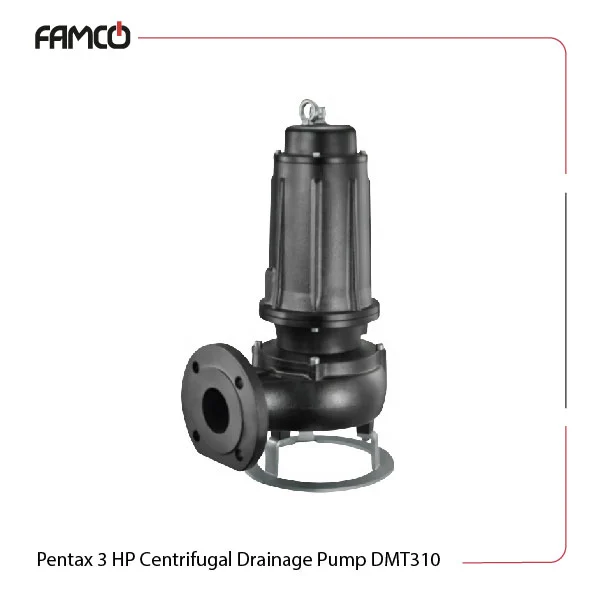

Pentax 3 HP Centrifugal Drainage Pump DMT310 Specifications
This product features a maximum immersion depth of 20 meters. This Pentax submersible pump operates effectively within a liquid temperature range of 0 to 40 degrees Celsius. The frequency is set at 50Hz, ensuring compatibility with standard electrical systems. An insulation class of F helps it provide reliable protection against heat. The protection degree is rated at IPX8, which goes to show it is fully waterproof and can withstand continuous immersion in water. The product supports a three-phase voltage with options of 380, 400, 230/400, 400/690 volts. As a powerful drainage pump, it has a an output of 2.2 kW (3 HP) and can achieve a maximum head of 6.4 to 23.9 meters. The maximum flow rate is considerable and 66 cubic meters per hour.
| Specification | Value |
| Max immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
| Three-phase voltage (V) | 380, 400, 230/400, 400/690 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. head (m) | 6.4-23.9 |
| Max. flow rate (m3/h) | 66 |
Pentax 3 HP Centrifugal Drainage Pump DMT310 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 3 HP Centrifugal Drainage Pump DMT310 Technical Data
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| Head (m) | 23.9 | 22.2 | 20.6 | 19.1 | 17.8 | 16.3 | 15.0 | 13.8 | 12.3 | 10.9 | 9.1 | 6.4 |

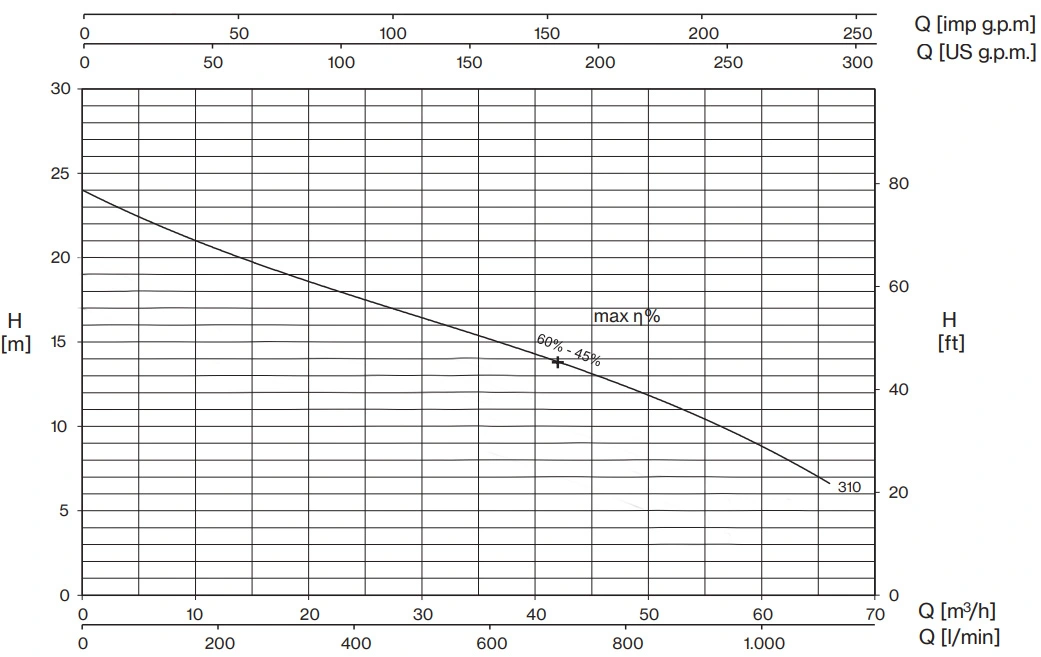

Pentax 3 HP Centrifugal Drainage Pump DMT310 Performance Curve
Pentax 3 HP Centrifugal Drainage Pump DMT310 Applications
- Irrigation systems
- Water supply for residential buildings
- Industrial water transfer
- Aquaculture and fish farming
Pentax 3 HP Centrifugal Drainage Pump DMT310 Benefits
- High efficiency with a maximum flow rate of 6 m3/h
- Durable design with IPX8 waterproof rating
- Versatile voltage options for different setups
- Suitable for various applications including irrigation and industrial use
Pentax 3 HP Centrifugal Drainage Pump DMT310 Price List
| No. | Name | Price |
| 1 | Pentax 3 HP Centrifugal Drainage Pump DMT310 Price | Contact us |
