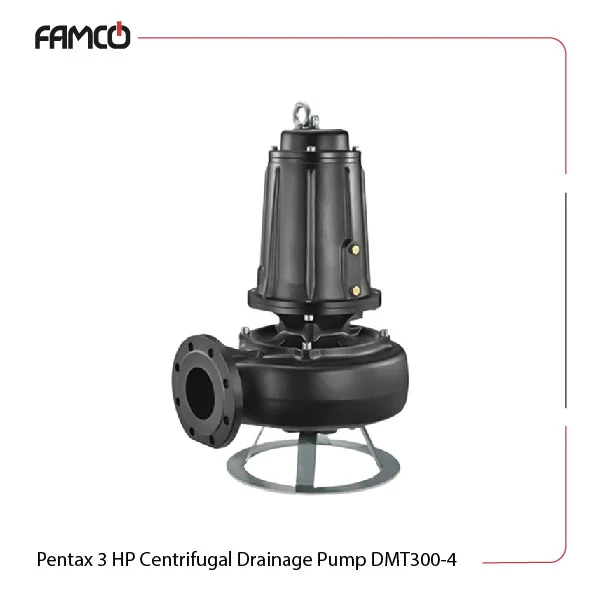

Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Specifications
This pump is designed to operate efficiently within a liquid temperature range of 0 to 40 degrees Celsius. As for other submersible pumps, it has notable submergence capabilities of up to 20 meters deep, making it suitable for various water transfer tasks. The device features a 4-pole motor with an insulation class of F, ensuring durability and safety during operation. Its protection degree is IPX8, meaning it is fully waterproof and suitable for continuous immersion. These drainage pumps have a power rating of 2.2 kW (3 HP), providing a reliable flow rate of up to 90 cubic meters per hour. DMT300-4 can generate a head height between 3.6 and 12.6 meters, depending on the load. The device operates at a frequency of 50 Hz and supports three-phase voltages of 230V, 400V, 230/400V, and 400/690V, making it versatile for different electrical setups. The mechanical seals are made of silicon carbide on the pump side and ceramic/graphite on the motor side that prevent ingress. The impeller and pump body are constructed from cast iron that bring in strength and resistance to corrosion in demanding environments.
| Specification | Value |
| Max. liquid temperature (℃) | 0-40 |
| Max. immersion depth (m) | 20 |
| No. of poles | 4 |
| Insulation class | F |
| Protection degree | IPX8 |
| Power rating (kW) | 2.2 |
| Power rating (HP) | 3 |
| Head (m) | 3.6-12.6 |
| Max. flow rate (m3/h) | 90 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Materials
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/graphite
- Impeller: cast iron
- Pump body: cast iron
Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 90 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1500 |
| Head (m) | 12.6 | 11.4 | 10.3 | 9.1 | 8.0 | 6.9 | 5.7 | 4.3 | 3.6 |

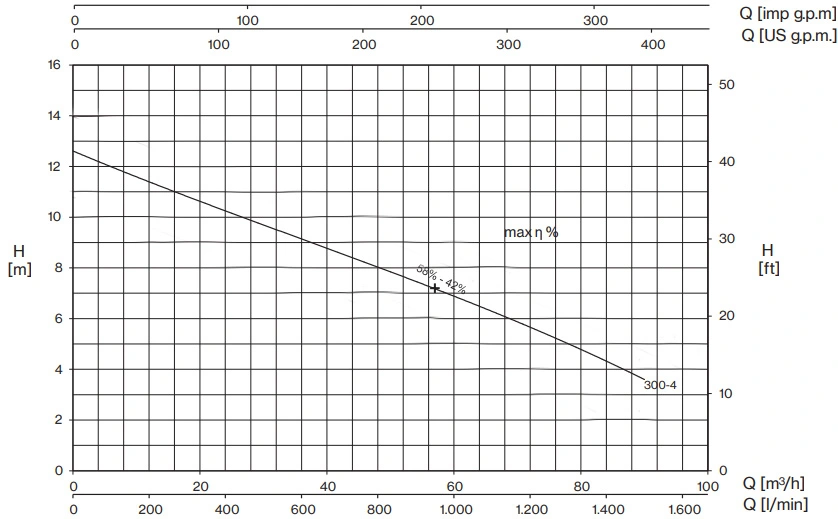

Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Performance Curve
Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Applications
- Water drainage in construction sites
- Irrigation for agricultural fields
- Industrial water transfer
- Flood control and emergency water removal
Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Benefits
- High flow capacity up to 90 m3/h
- Durable cast iron construction
- Fully waterproof with IPX8 rating
- Versatile voltage compatibility
Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Price List
| No. | Name | Price |
| 1 | Pentax 3 HP Centrifugal Drainage Pump DMT300-4 Price | Contact us |
